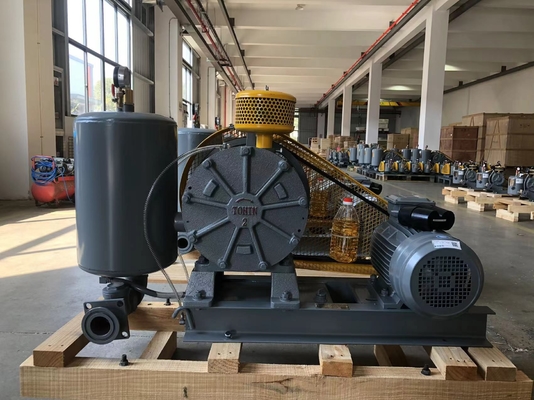

HC 0.59m3/Min 0.5kgf/Cm2 Size DN32 Rotary Air Blower 0.75KW

HC-40S Rotary Air Blower, air rotary blower, DN32, small blower for water aeration

About HC


HC blower is originated in Japan (Tohin Shoji Co., Ltd.) Till now,  more than 10 million sets of HC blower have been manufactured. B-Tohin has been in this blower industry since its establishment in 1994 by importing advanced technology and equipment from Japan. And after more than 20 year's marketing, this kind blower is testified as a product of good and reliable performance.

.


Specifications

Applications

• Wastewater aeration
• Mixing and aerating of hospital and laboratory waste products
• Conveying papers in offset printing operations
• Agitation and aeration for plating tanks and waste water
• Air supplier for plastic welding and blowing
• For mist spray of burner and in glass industry and others
• new rural construction sewage treatment station

Features

• Compact, low noise and economical energy consumption. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, litter energy consumption)

  ---



• Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and mere vibration occurred if placed correctly, not requiring any other vibration-proof device.)

  ---



• Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)

  ---



• Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.)

  ---



• Superior material, ingenious structure designed in Japan, remarkable

  ---



• performance (All parts of the blowers are made of qualified material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)

  ---



• Simple maintenance, rare malfunctions, long using life (The low speed of blower ensures small abrasion and long life.)

Working Principle

The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle (imported from Japan), then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, it is free of circum-fluence of air in cylinder.

Standard supply of scope

HC Rotary blower's structure is exquisite. It mainly consists of air chamber, electric motor, air filter, blower main body, base (and oil tank), oil dropping nozzle, pulley and other connection parts.
