Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001 |
| Model Number: | YU-EG150 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 15 to 30 working days, depends on order amount and specification |
| Supply Ability: | 20 SETS per month |
| Capacity: | 13.81-29.26m3/min | Discharge Differential Pressure: | 10-80KPA |
|---|---|---|---|
| Bore Size: | DN150(6”) | Cooling Type: | Water |
| Connection Type: | Belt Driven | Belt And Pulley: | Biogas, Waste Gas, Explosive Medium Conveying |
| High Light: | landfill gas blower,natural gas blower |
||

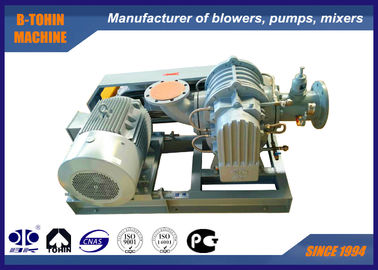

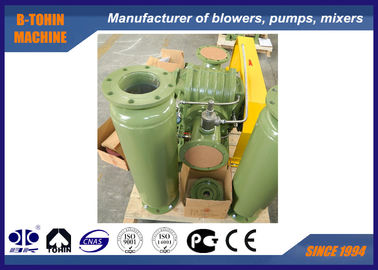

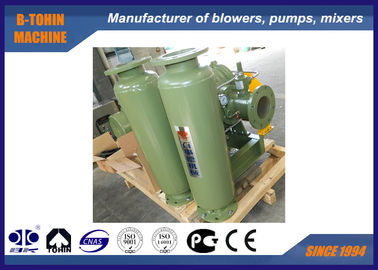

Roots type Biogas Blower DN150, anti-corrosive, explosion-proof
About YU-EG
A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.
Specifications
|
Model |
YU-EG150 |
|
Air capacity |
13.81-29.26m3/min |
|
Discharge differential pressure |
10-80KPA |
|
Rotary speed |
850-1400rpm |
|
Cooling water volume |
70 l/min |
|
Motor type |
7.5-45KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
530kg |
|
Packing size Approx. |
1.95*1.05*1.4m (length*width*height) |
|
Features |
1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance 2. Equipped with multiply seal to prevent leakage 3. Sprayed with special antisepsis material on cylinder and cover. |
Parameter sheet
| Model | Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure | Cooling water | ||||||||
| Speed rpm |
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | ||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | (l/min) | |||
| YU-EG150 | 150(6") | 850 | 16.93 | 4.57 | 16.03 | 8.01 | 15.34 | 10.9 | 14.78 | 14.41 | 15 |
| 1000 | 20.29 | 5.38 | 19.4 | 9.42 | 18.7 | 12.83 | 18.14 | 16.95 | |||
| 1150 | 23.66 | 6.19 | 22.76 | 10.84 | 22.07 | 14.75 | 21.5 | 19.5 | |||
| 1250 | 25.9 | 6.73 | 25 | 11.78 | 24.31 | 16.03 | 23.75 | 21.19 | |||
| 1400 | 29.26 | 7.53 | 28.37 | 13.19 | 27.67 | 17.96 | 27.11 | 23.73 | |||
| Model | Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure | Cooling water | ||||||||
| Speed rpm |
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
| 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | ||||||||
| 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | (l/min) | |||
| YU-EG150 | 150(6") | 850 | 14.26 | 18.14 | 13.81 | 21.65 | 15 | ||||
| 1000 | 17.63 | 21.35 | 17.18 | 25.47 | 16.75 | 27.14 | |||||
| 1150 | 20.99 | 24.55 | 20.54 | 29.3 | 20.11 | 31.21 | |||||
| 1250 | 23.23 | 26.68 | 22.78 | 31.84 | 22.36 | 33.92 | |||||
| 1400 | 26.59 | 29.88 | 26.15 | 35.66 | 25.72 | 37.99 | |||||
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. vacuum pressure relieve valve
3. check valve
4. inlet silencer(with filter)
5. discharge silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. pulley
9. pressure gauge
10. belt
11. bolts and nuts and other connection parts
12. motor
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
