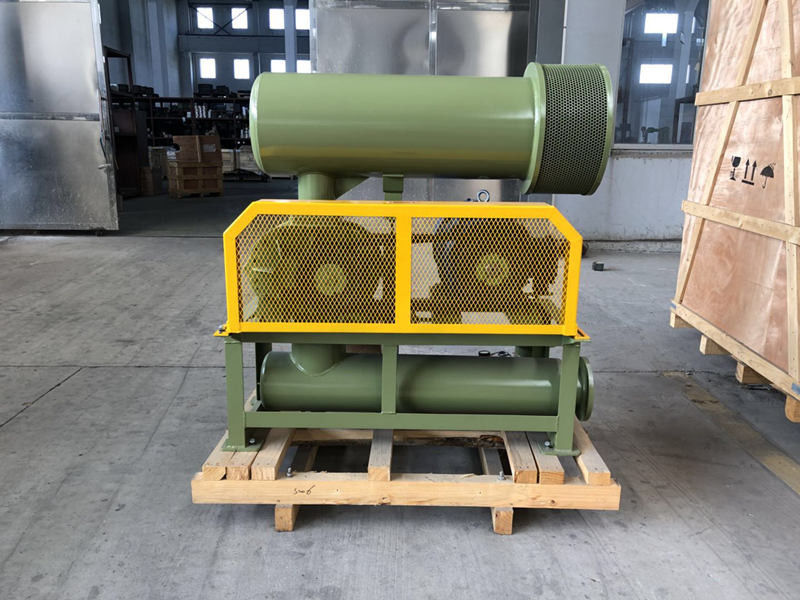

Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise

Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise

Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise
Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise
Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BK6015
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 100 SETS per month
Contact Now
Detailed Product Description
Name: Three Lobe Roots Blower Type: Positive Displacement, Roots Type, Air Conveying
Air Capacity: 14.68-39.13m3/min Discharge Differential Pressure: 10-50KPA
Motor Power: 5.5-45KW Discharge Bore: DN150 (6”)
Cooling Type: Air Application:: Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement, Pipe Clearing, Power Plant, Etc.
Main Materials: Cast Iron Origin Of Technology: USA
Blower RPM: 1500 Installation Type:: Horizontal Or Vertical
High Light:

3 Lobe Roots Blower

,

pneumatic conveying blower



Aeration Tank Three Lobe Roots Blower, belt drive PD air blower, 10-50KPA





B-TOHIN roots blower is a modern roots blower brand who focuses on the research and development , manufacturing and marketing of green technology and environment protection equipment. BK blowers have been widely used in aeration of water treatment.





Specifications:



Model

BK6015

Air capacity

14.68-39.13m3/min

Discharge differential pressure

10-80KPA

Rotary speed

850-1800rpm

Motor type

5.5KW-45KW

380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: horizontal type.

Vertical type available for your option

Color Customized, standard of RAL6011

N.W. of blower without motor

380 kg

Packing size Approx.

1.8*1.2*2m (length*width*height)





Features:

1. Helical type timing gears for smooth operation

2. Compact, flexibility in installation gives users more choices.

3. Integral structure of impeller for stable rotation in running.

4. Adopt imported oil seals made from fluoro rubber with better wear resistance and high-temperature resistance.

5. Low noise, small vibration and economical energy consumption.





Parameter sheet

Model Port Dia
(MM)
Speed Inlet capacity (m3/min)and shaft power (KW)
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2  0.4kgf/cm2 0.5kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O 5000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BK6015 150(6") 850 17.17 4.71 16.13 8.24 15.35 11.22 14.68 14.22
1000 20.64 5.54 19.60 9.70 18.81 13.20 18.14 16.73 17.56 20.81
1150 24.10 6.37 23.06 11.15 22.28 15.19 21.61 19.24 21.03 23.93
1250 26.42 6.92 25.38 12.12 24.59 16.51 23.92 20.91 23.34 26.01
1400 29.88 7.75 28.84 13.57 28.06 18.49 27.39 23.42 26.81 29.13
1500 32.19 8.31 31.15 14.54 30.37 19.81 29.70 25.10 29.12 31.21
1650 35.66 9.14 34.62 16.00 33.83 21.79 33.16 27.61 32.59 34.33
1800 39.13 9.97 38.09 17.45 37.30 23.77 36.63 30.12 36.05 37.46





Structure of blower main body


Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise 0





No.

Part Name

Qty.



No.

Part Name

Qty.



No.

Part Name

Qty.

1

Footing

2



9

Left end cover

1



17

Oil tank

1

2

Hexagon bolt

4



10

Round pin

4



18

Gear

2

3

Antidust seal

1



11

Casing

1



19

Key

2

4

Drive impeller

1



12

Oil seal

4



20

Axial sleeve

2

5

Bearing

2



13

Right end cover

1



21

Bearing

2

6

Driven impeller

2



14

Bolt

16



22

Bearing plate

2

7

Dust cup

1



15

Breather

1



23

Adjustable pad

several

8

Grease nipple

2



16

Bolt

8



24

Magnetic nut

1





Assembling drawing of blower package



Aeration Tank Three Lobe Roots Blower Cement / Water Treatment Low Noise 1





Standard supply of scope



1. bare shaft blower

2. pressure relieve valve

3. wafer check valve (slim type)

4. inlet silencer(with air filter)

5. outlet silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. motor pulley

9. pressure meter

10. V-belt

11. bolts and nuts and other connection parts

12. electric motor
