Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BKW5006 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 SETS per month |
| Name: | Roots Rotary Lobe Blower | Type: | Positive Displacement Roots Type, Three Lobes |
|---|---|---|---|
| Air Capacity: | 3.08-11.05m3/min | Discharge Differential Pressure: | 60-100KPA |
| Motor Power: | 11-30W | Discharge Bore: | DN100(4”) |
| Driven Type: | Motor Driven, Connected By Belt And Pulley | Installation Type: | Vertical, Horizontal Available Also |
| High Light: | high pressure blower,rotary positive blower |
||

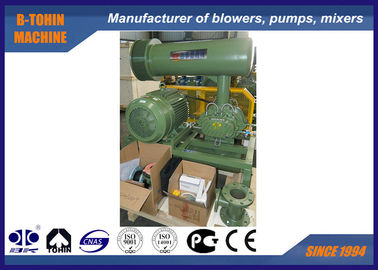

DN100 Roots Rotary Lobe Blower, maxiumum pressure 100KPA, aeration roots blower
On the base of introduced technology from American, we developed BKW Series Roots blowers with tri-lobes and water cooling structure. The blower unit has a compact construction including blower, motor, inlet and discharge silencers, filter, flexible joints, relesf valve, check valve, and pressure gauge, and also can be equipped with acoustic enclosure and control devices.
Specifications
|
Model |
BKW5006 |
|
Air capacity |
3.08-11.05m3/min |
|
Discharge differential pressure |
60-100KPA |
|
Rotary speed |
850-2000rpm |
|
Cooling water volume |
6 l/min |
|
Motor type |
11-30KW |
|
Motor brand |
Standard: Siemens Beide or Wannan motor |
|
Installation type |
Standard: horizontal type. |
|
N.W. of blower without motor |
214kg |
|
Packing size Approx. |
Packing case for blower: 1.4*1*0.75m (L*W*H) Packing case for blower accessories: 1.22*0.66*0.51m (L*W*H) |
Applications
1. aeration waste water treatment
2. backwashing in sewage treatment
3. pneumatic conveying in cement plants
4. dust removal in power plant
Parameter sheet
| Model | Speed | Inlet capacity (m3/min)and shaft power (KW) | Cooling Water |
|||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | ||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | ||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | ||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |
| BKW5006 Port Dia: DN100(4") |
850 | 3.28 | 6.44 | 3.08 | 7.27 | 6 | ||||||
| 1000 | 4.29 | 7.58 | 4.09 | 8.55 | 3.91 | 9.69 | 3.73 | 10.83 | ||||
| 1150 | 5.31 | 8.72 | 5.10 | 9.83 | 4.93 | 11.15 | 4.74 | 12.46 | ||||
| 1250 | 5.98 | 9.47 | 5.78 | 10.69 | 5.60 | 12.12 | 5.42 | 13.54 | ||||
| 1350 | 6.66 | 10.23 | 6.45 | 11.55 | 6.28 | 13.09 | 6.10 | 14.63 | 5.94 | 16.17 | ||
| 1500 | 7.67 | 11.37 | 7.47 | 12.83 | 7.29 | 14.54 | 7.11 | 16.25 | 6.95 | 17.96 | ||
| 1600 | 8.35 | 12.13 | 8.14 | 13.68 | 7.97 | 15.51 | 7.79 | 17.33 | 7.63 | 19.16 | ||
| 1750 | 9.36 | 13.26 | 9.16 | 14.97 | 8.98 | 16.96 | 8.80 | 18.96 | 8.64 | 20.96 | ||
| 1850 | 10.04 | 14.02 | 9.83 | 15.82 | 9.66 | 17.93 | 9.48 | 20.04 | 9.32 | 22.15 | ||
| 2000 | 11.05 | 15.16 | 10.85 | 17.10 | 10.67 | 19.39 | 10.49 | 21.67 | 10.33 | 23.95 | ||
Structure of blower main body
Flow direction of cooling water
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gauge
8. blower pulley and motor pulley
9. V-belt
10. belt cover
11. public base
12. motor
