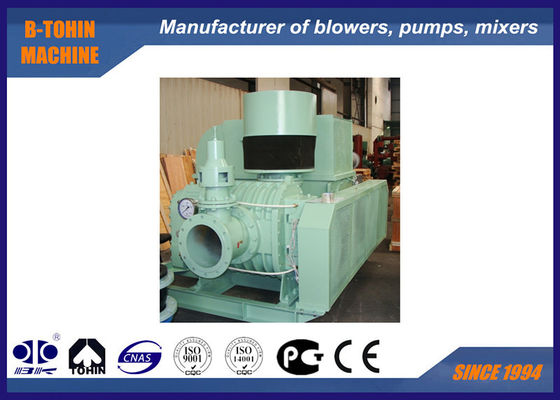

Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower

Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower

  • Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower
  • Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower
  • Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower
Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW10034
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
Air Capacity: 72.23-146.88m3/min Discharge Differential Pressure: 60-80KPA
Motor Power: 110-250W Discharge Bore: DN350(14”)
Driven Type: Motor Driven, Connected By Belt And Pulley Installation Type: Vertical, Horizontal Available Also
High Light:

rotary positive blower

,

rotary lobe blower


Compact Roots Rotary Lobe Blower,  8400m3/hour, back-washing air blower


Applications

Widely used in waste water treatment, petrochemical Industry, cement, power, metallurgy and pneumatic conveying diverse industries.




Specifications


Model

BKW10034

Air capacity

72.23-146.88m3/min

Discharge differential pressure

60-80KPA

Rotary speed

850-1400rpm

Cooling water volume

30 l/min

Motor type

110-250KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Installation type

Vertical type

N.W. of blower without motor

2370kg

Packing size Approx.

2.7*2.1*2.65m (L*W*H)





Features

1.The specially designed rotors work smoothly
2. Large air capacity
3. Non-pollution.Output clean air
4. Compact structure is easy to fix and safe to use



Parameter sheet

Model Speed Inlet capacity (m3/min)and shaft power (KW) Cooling
Water
0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
6000mmH2O 7000mmH2O 8000mmH2O
0.06Mpa 0.07Mpa 0.08Mpa
rpm m3/min KW m3/min KW m3/min KW L/min

BKW10034
Port Dia:

DN350(14")


850 74.05 101.64  72.23 118.07      30
900 86.18 114.35  84.36 132.82
1000 98.32 127.05  96.50 147.58  94.80 168.12
1100 110.46 139.76  108.64 162.34  106.94 184.93
1250 128.67 158.81  126.85 184.48  125.15 210.14
1400 146.88 177.87  145.06 206.62  143.36 235.36





Structure of blower main body

Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower 0




Flow direction of cooling water

Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower 1




Assembling drawing of blower package

Compact Roots Rotary Lobe Blower , 8400m3/hour Backwashing Rotary Air Blower 2

Standard supply of scope

1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gauge
8. blower pulley and motor pulley
9. V-belt
10. belt cover
11. public base
12. motor
