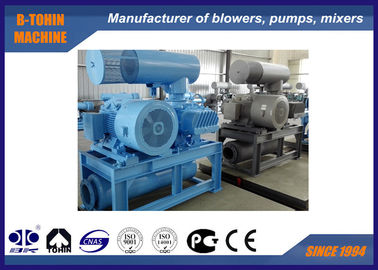

Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA air compressor

Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA air compressor

  • Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
  • Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
  • Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
  • Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
  • Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW9020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
Air Capacity: 25.89-73.32m3/min Discharge Differential Pressure: 60-100KPA
Motor Power: 55-185W Driven Type: Motor Driven, Connected By Belt And Pulley
Installation Type: Horizontal, Vertical Available Also Lobe Type: 3 Lobe, Made Of QT500
Sealing Type: Skeleton Oil Seal, Fluoro Rubber, SKF
High Light:

high pressure blower

,

rotary lobe blower


Water Treatment Roots Rotary Lobe Blower,  high pressure 100KPA  air compressor

BKW blower can be used for various industries, such as for separating small particles and algae in groundwater, recovering valuable products in industrial sewage and so on. It can reach the air capacity of 3900 m3/h under 80KPA rising pressure.






Specifications


Model

BKW9020

Discharge bore size DN250 (10")

Air capacity

25.89-73.32m3/min

Discharge differential pressure

60-100KPA

Rotary speed

700-1500rpm

Cooling water volume

20 l/min

Motor type

55-185KW
380/400/415/440V, 3PHASES, 50/60HZ

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of main blower body

790kg





Features



1. Integral-shaft ductile iron impellers
2. Large size of cylindrical roller bearings
3. Hardened teeth face for precision helical timing gear

4. Tri-lobe rotor with optimized curve
5. Flexible installation ways available






Parameter sheet

Model Speed Inlet capacity (m3/min)and shaft power (KW)
0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2    0.9kgf/cm2 1.0kgf/cm2
6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW

BKW

9020



700 26.99 42.76  25.89 49.62
850 35.68 51.93  34.58 60.26
1000 44.36 61.09  43.26 70.89  42.28 80.68  41.35 90.48  40.42 100.28
1150 53.05 70.26  51.95 81.52  50.97 92.79  50.04 104.05  49.11 115.32
1250 58.84 76.37  57.74 88.61  56.76 100.86  55.83 113.10  54.90 125.35
1400 67.53 85.53  66.43 99.24  65.44 112.96  64.52 126.67  63.59 140.39
1500 73.32 91.64  72.22 106.33  71.24 121.03  70.31 135.72  69.38 150.42
Port Dia: DN250 (10")          Cooling water volume: 20l/min








Structure of blower main body

Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor 0




Flow direction of cooling water

Water Treatment Roots Rotary Lobe Type Blower high pressure 100KPA  air compressor 1




Available accessories for your choice

1. inlet silencer (with air filter)
2. outlet silencer
3. relieve valve
4. check valve
5. flexible joint
6. pressure gauge
7. blower pulley and motor pulley
8. V-belt
9. belt cover
10. public base
11. motor

12. control cabinet

13. acoustic enclosure
