Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001 |
| Model Number: | YU-EG6005 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 15 to 30 working days, depends on order amount and specification |
| Supply Ability: | 20 SETS per month |
| Capacity: | 3.84-11.59m3/min | Discharge Differential Pressure: | 10-80KPA |
|---|---|---|---|
| Bore Size: | DN80(3”) | Cooling Type: | Water |
| Connection Type: | Belt Driven | Belt And Pulley: | Biogas, Waste Gas, Explosive Medium Conveying |
| High Light: | landfill gas blower,natural gas blower |
||

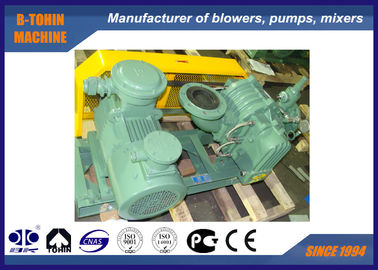

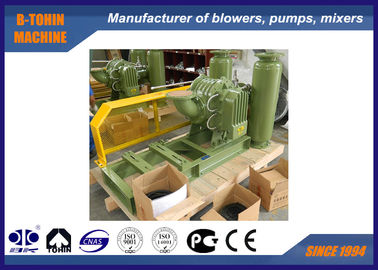

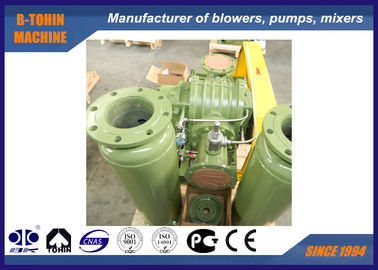

Lobe Rotary Biogas Blower, anti-corrosive, flammable gas convey blower
Features
1. Compact structure, inlet and outlet same construction, multiform fitting ways
2. Integral structure of impeller and shaft, which can avoid th defection of separate type.
3. Water cooling structure which can improve the work condition of bearing and prolong service life.
4. Spraying special coating (PTFE) with well corrosion resistance and stick on the impeller and the parts contacting the fluid.
5. Blower is designed for conveying the special medium of acid, alkali and other corrosive gas.
Specifications
|
Model |
YU-EG6005 |
|
Air capacity |
3.84-11.59m3/min |
|
Discharge differential pressure |
10-80KPA |
|
Rotary speed |
850-1650rpm |
|
Cooling water volume |
8 l/min |
|
Motor type |
2.2-22KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
290kg |
|
Packing size Approx. |
1.55*1.0*1.35m (length*width*height) |
Parameter sheet
| Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
| Speed rpm |
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | ||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
|
YU-EG 6005 |
80(3") | 850 | 5.44 | 1.69 | 4.97 | 3.01 | 4.63 | 3.98 | 4.33 | 4.97 | 8 |
| 1000 | 6.59 | 1.99 | 6.13 | 3.54 | 5.78 | 4.69 | 5.48 | 5.85 | |||
| 1150 | 7.74 | 2.29 | 7.28 | 4.08 | 6.93 | 5.39 | 6.63 | 6.72 | |||
| 1250 | 8.51 | 2.49 | 8.05 | 4.43 | 7.70 | 5.86 | 7.40 | 7.31 | |||
| 1400 | 9.66 | 2.79 | 9.20 | 4.96 | 8.86 | 6.56 | 8.56 | 8.19 | |||
| 1500 | 10.43 | 2.98 | 9.97 | 5.32 | 9.63 | 7.03 | 9.33 | 8.77 | |||
| 1650 | 11.59 | 3.28 | 11.12 | 5.85 | 10.78 | 7.73 | 10.48 | 9.65 | |||
| Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
| Speed rpm |
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
| 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | ||||||||
| 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
| YU-EG 6005 |
80(3") | 850 | 4.07 | 6.12 | 3.84 | 7.28 | 8 | ||||
| 1000 | 5.23 | 7.20 | 5.00 | 8.56 | 4.77 | 9.65 | 4.58 | 10.94 | |||
| 1150 | 6.38 | 8.28 | 6.15 | 9.84 | 5.93 | 11.09 | 5.74 | 12.59 | |||
| 1250 | 7.15 | 9.01 | 6.92 | 10.70 | 6.70 | 12.06 | 6.50 | 13.68 | |||
| 1400 | 8.30 | 10.09 | 8.07 | 11.98 | 7.85 | 13.51 | 7.66 | 15.32 | |||
| 1500 | 9.07 | 10.81 | 8.84 | 12.84 | 8.62 | 14.47 | 8.43 | 16.42 | |||
| 1650 | 10.23 | 11.89 | 9.99 | 14.12 | 9.77 | 15.92 | 9.58 | 18.06 | |||
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. vacuum pressure relieve valve
3. check valve
4. inlet silencer(with filter)
5. discharge silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. pulley
9. pressure gauge
10. belt
11. bolts and nuts and other connection parts
12. motor
