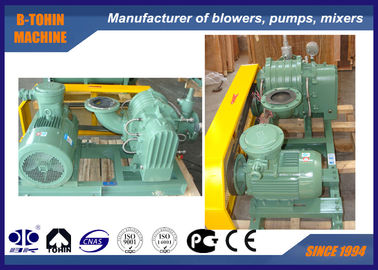

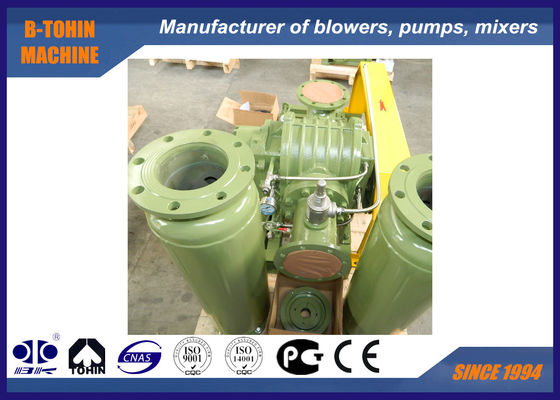

7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type

7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type

  • 7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type
  • 7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type
7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: YU-EG125
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Supply Ability: 20 SETS per month
Contact Now
Detailed Product Description
Capacity: 7.96-18.78m3/min Discharge Differential Pressure: 10-80KPA
Bore Size: DN125(5”) Cooling Type: Water
Connection Type: Belt Driven Belt And Pulley: Biogas, Waste Gas, Explosive Medium Conveying
High Light:

landfill gas blower

,

natural gas blower





Roots Biogas Blower,  bio gas and acid use blower, anti-corrosive





Application



YU-EG series blower is designed for special gas use. By coating the inside over-current parts with PTFE and adopting stainless flexible joint, stainless inlet and outlet silencer, it can be applied in conveying bio gas, alkali, acid and other flammable gas.





Specifications



Model

YU-EG125

Air capacity

7.96-18.78m3/min

Discharge differential pressure

10-80KPA

Rotary speed

1000-1650rpm

Cooling water volume

12 l/min

Motor type

4-37KW

380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

350kg

Packing size Approx.

1.8*1.3*1.5m (length*width*height)





Features



1. Compact structure,  same construction of blower's inlet and outlet, suitable for different installation types

2. Impeller and shaft is cast as a whole part for stable operation.

3. High quality bearings and seals ensure safe operation.

4. Water cooling structure is adopted for protecting bearing from over-heating.

5. DIIBT4 motor equipped for hazardous area use.





Parameter sheet



Model

Port Dia

 (mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

water
(l/min)

Speed
rpm
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
m3/min KW m3/min KW m3/min KW m3/min KW
YU-EG
125
125(5") 1000 10.78  3.05  10.13  5.39  9.64  7.24  9.22  9.11  12
1150 12.62  3.51  11.98  6.20  11.49  8.33  11.07  10.48
1250 13.85  3.82  13.21  6.74  12.72  9.05  12.30  11.39
1400 15.70  4.28  15.06  7.55  14.57  10.14  14.15  12.76
1500 16.93  4.58  16.29  8.08  15.80  10.86  15.38  13.67
1650 18.78  5.04  18.14  8.89  17.65  11.95  17.23  15.04



Model

Port Dia

(mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

water
(l/min)

Speed
rpm
0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
m3/min KW m3/min KW m3/min KW m3/min KW
YU-EG
125
125(5") 1000 8.87  11.29  8.53  13.46  8.23  15.11  7.96  17.19  12
1150 10.71  12.98  10.38  15.48  10.07  17.38  9.80  19.77
1250 11.94  14.11  11.61  16.82  11.30  18.89  11.03  21.49
1400 13.79  15.80  13.46  18.84  13.15  21.16  12.88  24.07
1500 15.02  16.93  14.69  20.19  14.38  22.67  14.11  25.79
1650 16.87  18.62  16.54  22.21  16.23  24.94  15.96  28.36





Structure of blower main body



7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type 0







Assembling drawing of blower package

7.96-18.78m3/min Roots Biogas Blower for bio gas with Water Cooling type 1







Standard supply of scope



1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor
