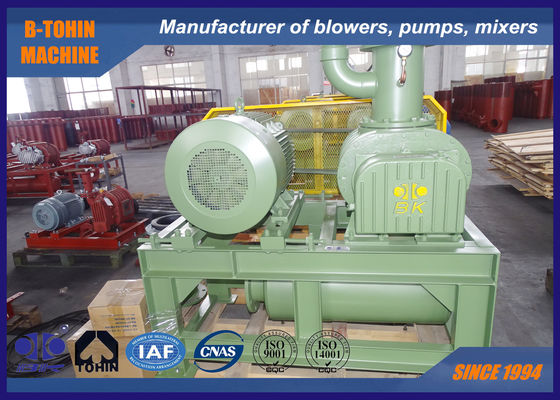

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump

  • 4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump
  • 4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump
  • 4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump
4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: BV200H
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 80 SETS per month
Contact Now
Detailed Product Description
Type: Vacuum Sauction, Roots Type Air Capacity: 28.05-49.67m3/min
Discharge Differential Pressure: -10KPA - -70KPA Motor Power: 45-75KW
Discharge Bore: DN200(8") Cooling Type: Air
Driven Type: Motor Driven, Connected By Belt And Pulley
High Light:

75kw root blower pump

,

-70kpa root blower pump

,

negative pressure root blower pump





DN200 Roots vacuum pump negative pressure air blower,28.05-49.67m3/min,-10KPA to -70KPA, 45-75KW



About BV200H Vacuum Blower



BK200H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump.  It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.




Specifications


Model

BV200H

Air capacity

28.05-49.67m3/min

Discharge differential pressure

-10   ~   -70KPA

Rotary speed

1150-1850rpm

Motor type

45-75KW

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

728kg




Parameter sheet

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump 0

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump 1





Assembling drawing of blower package

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump 2



Dimension size

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump 3

4" Negative Pressure Air 41.09m3/min -70KPA 75KW Root Blower Pump 4


Standard supply of scope


1. blower main body

2. vacuum safety valve

3. inlet silencer

4. outlet silencer

5. public base (with belt cover)

6. rubber flexible joint and shock pad

7. blower pulley

8. pressure gauge

9. belt

10. bolts and nuts and other connection parts

11. motor
