-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump

-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump

Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: BV5003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 80 SETS per month
Contact Now
Detailed Product Description
Type: Vacuum Sauction, Roots Type Air Capacity: 1.92-7.38m3/min
Discharge Differential Pressure: -10KPA -- -50KPA Motor Power: 5.5-7.5/11-15KW
Discharge Bore: DN65(2.5") Cooling Type: Air
Driven Type: Motor Driven, Connected By Belt And Pulley
Highlight:

-10KPA Roots Blower Vacuum Pump

,

1.92m3/Min Roots Blower Vacuum Pump

,

1.5KW Roots Blower Vacuum Pump

Vacuum 10KPA to vacuum 50KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower



About BV5003 Vacuum Blower



BK5003 vacuum blower is a kind of displacement Roots type air pump. It can reach -50KPA vacuum pump.  It is widely used for vacuum air



conveying and if featured of stable performance and excellent volumetric efficiency.

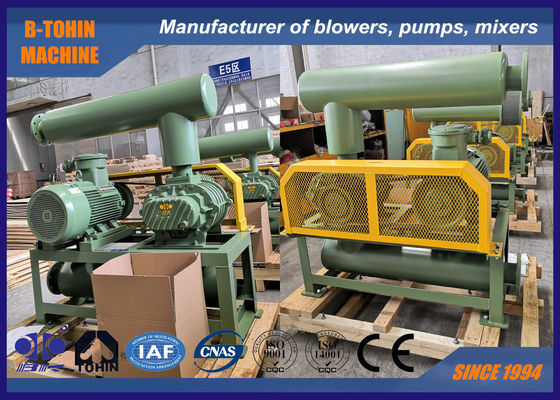

-50KPA 4.53m3/Min 7.5KW  Air Cooling Negative Pressure Roots Blower Vacuum Pump 0



Main Characteristics



Air-cooled casing is adopted to introduce external cooling air;stable operation,lower noise the normal negative pressure blower;compact structure,reasonable design, flexible and convenient installation.




Specifications


Model

BV5003

Air capacity

1.92-7.38m3/min

Discharge differential pressure

-10   ~   -50KPA

Rotary speed

850-2000rpm

Motor type

5.5-7.5/11-15KW

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: horizontal type, vertical type can be made to order

N.W. of blower without motor

171kg




Parameter sheet

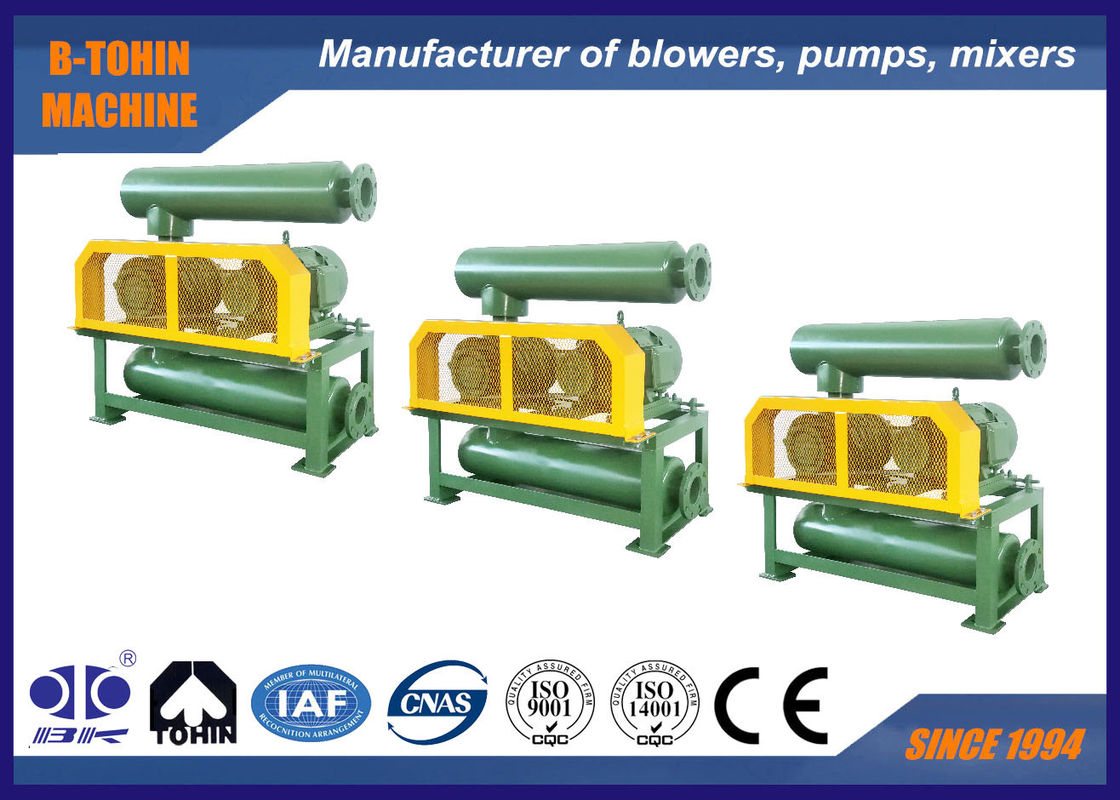

-50KPA 4.53m3/Min 7.5KW  Air Cooling Negative Pressure Roots Blower Vacuum Pump 1







Assembling drawing of blower package



-50KPA 4.53m3/Min 7.5KW  Air Cooling Negative Pressure Roots Blower Vacuum Pump 2



Dimension size



BV Outline Dimension Sheet                       Unit:mm

Type

Port Dia

Motor power
A B C D E F G H K M N 0 P Q n-M16×h
Weight
(kg)
BV5003 65(2.5") 5.5~7.5 1190 940 90 200 532 172 200 1072 133 346 410 115 190 18 4-M16×300 171
BV5003 65(2.5") 11~15 1190 940 90 200 532 172 200 1072 133 474 538 115 190 18 4-M16×300 171


Standard supply of scope


1. blower main body

2. vacuum safety valve

3. inlet silencer

4. outlet silencer

5. public base (with belt cover)

6. rubber flexible joint and shock pad

7. blower pulley

8. pressure gauge

9. belt

10. bolts and nuts and other connection parts

11. motor
