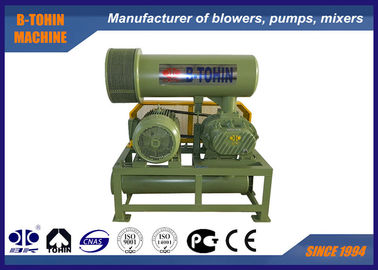

Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing

Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing

    • Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing
    • Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing
    • Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing
  • Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BK6008

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 100 SETS per month
    Contact Now
    Detailed Product Description
    Type: Positive Displacement, Roots Type, Air Conveying Air Capacity: 6.69-20.63m3/min
    Discharge Differential Pressure: 10-80KPA Motor Power: 4-37KW
    Discharge Bore: DN125 (5”) Cooling Type: Air
    Application:: Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement, Pipe Clearing, Power Plant, Etc. Main Materials: Cast Iron



    Sewage Treatment Three Lobe Roots Blower, backwashing air blower





    About BK



    BK Roots Blower is a kind of product designed and manufactured according to the national standards

    and by the techniques introduced from American TUTHILL Co. With the technology imported from USA, This type blower is of matured and stable performance.





    Specifications:



    Model

    BK6008

    Air capacity

    6.69-20.63m3/min

    Discharge differential pressure

    10-80KPA

    Rotary speed

    850-1800rpm

    Motor type

    4KW-37KW

    380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.

    Vertical type available for your option

    N.W. of blower without motor

    290 kg

    Packing size Approx.

    1.8*1.2*2m (length*width*height)





    Features:

    1. Helical type timing gears for smooth operation

    2. Compact, flexibility in installation gives users more choices.

    3. Integral structure of impeller and shaft without shortcomings of the split structure

    4. Adopt imported oil seals made from fluoro rubber with perfect wear resistance and high-temperature resistance.

    5. Low noise, small vibration and economical energy consumption.





    Parameter sheet

    Model Port Dia
    (MM)
    Speed Inlet capacity (m3/min)and shaft power (KW)
    0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2  0.4kgf/cm2
    1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
    0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW
    BK6008 125(5") 850 8.93 2.60 8.29 4.58 7.80 6.16 7.38 7.75
    1000 10.78 3.05 10.13 5.39 9.64 7.24 9.22 9.11
    1150 12.62 3.51 11.98 6.20 11.49 8.33 11.07 10.48
    1250 13.85 3.82 13.21 6.74 12.72 9.05 12.30 11.39
    1400 15.70 4.28 15.06 7.55 14.57 10.14 14.15 12.76
    1500 16.93 4.58 16.29 8.08 15.80 10.86 15.38 13.67
    1650 18.78 5.04 18.14 8.89 17.65 11.95 17.23 15.04
    1800 20.63 5.50 19.99 9.70 19.49 13.04 19.08 16.40



    Model Port Dia
    (MM)
    Speed Inlet capacity (m3/min)and shaft power (KW)
    0.5kgf/cm2  0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
    5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
    0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW
    BK6008 125(5") 850 7.02 9.59 6.69 11.44
    1000 8.87 11.29 8.53 13.46 8.23 15.11 7.96 17.19
    1150 10.71 12.98 10.38 15.48 10.07 17.38 9.80 19.77
    1250 11.94 14.11 11.61 16.82 11.30 18.89 11.03 21.49
    1400 13.79 15.80 13.46 18.84 13.15 21.16 12.88 24.07
    1500 15.02 16.93 14.69 20.19 14.38 22.67 14.11 25.79
    1650 16.87 18.62 16.54 22.21 16.23 24.94 15.96 28.36
    1800 18.72 20.31 18.39 24.22 18.08 27.20 17.81 30.94





    Structure of blower main body


    Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing





    No.

    Part Name

    Qty.



    No.

    Part Name

    Qty.



    No.

    Part Name

    Qty.

    1

    Footing

    2



    9

    Left end cover

    1



    17

    Oil tank

    1

    2

    Hexagon bolt

    4



    10

    Round pin

    4



    18

    Gear

    2

    3

    Antidust seal

    1



    11

    Casing

    1



    19

    Key

    2

    4

    Drive impeller

    1



    12

    Oil seal

    4



    20

    Axial sleeve

    2

    5

    Bearing

    2



    13

    Right end cover

    1



    21

    Bearing

    2

    6

    Driven impeller

    2



    14

    Bolt

    16



    22

    Bearing plate

    2

    7

    Dust cup

    1



    15

    Breather

    1



    23

    Adjustable pad

    several

    8

    Grease nipple

    2



    16

    Bolt

    8



    24

    Magnetic nut

    1





    Assembling drawing of blower package



    Sewage Treatment Three Lobe Roots Blower for Aeration , backwashing





    Standard supply of scope



    1. shaft blower

    2. pressure relieve valve

    3. check valve

    4. inlet silencer(with air filter)

    5. outlet silencer

    6. public base (with belt cover)

    7. rubber flexible joint and shock pad

    8. motor pulley

    9. pressure gage

    10. V-belt

    11. bolts and nuts and other connection parts

    12. electric motor
