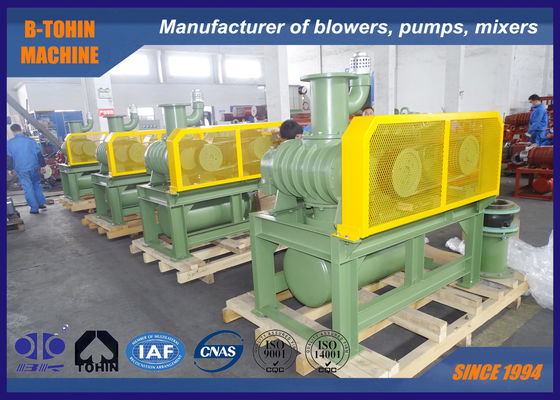

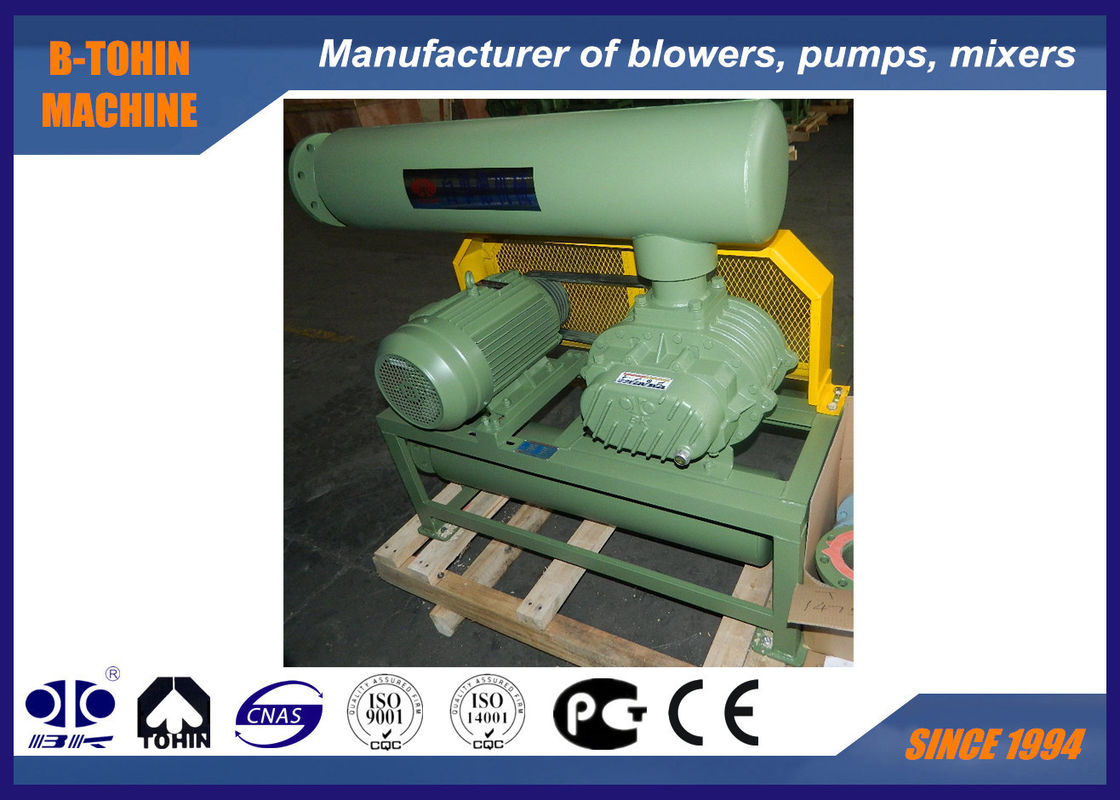

Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower

Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower

    • Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower
    • Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower
  • Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BK5006

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 80 SETS per month
    Contact Now
    Detailed Product Description
    Type: Vacuum Sauction, Roots Type Air Capacity: 3.72-12.51m3/min
    Discharge Differential Pressure: -10KPA - -40KPA Motor Power: 2.2-15KW
    Discharge Bore: DN100(4”) Cooling Type: Air
    Driven Type: Motor Driven, Connected By Belt And Pulley



    Rotary Roots Blower Vacuum Pump,  -40KP,  motor driven vacuum blower





    About BK vacuum pump



    BK vacuum pump is designed for -10KAP to -40KPA vacuum use. It is widely applied in food conveying, metallurgy, chemical industry and electronic coating.  It is featured of stable performance and compact structure.



    Specifications

    Model

    BK5006

    Air capacity

    3.72-12.51m3/min

    Discharge differential pressure

    -10   ~   -40KPA

    Rotary speed

    850-2000rpm

    Motor type

    2.2-15KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.

    Vertical type available for your option

    N.W. of blower without motor

    204kg

    Packing size Approx.

    1.5*1.05*1.75m (length*width*height)




    Parameter sheet



    <

    Model Port Dia
    (MM)
    Speed Inlet capacity (m3/min)and shaft power (KW)
    -0.1kgf/cm2 -0.2kgf/cm2 -0.3kgf/cm2 -0.4kgf/cm2
    -1000mmH2O -2000mmH2O -3000mmH2O -4000mmH2O
    -0.01Mpa -0.02Mpa -0.03Mpa -0.04Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW
    BK5006 100(4") 850 4.74  1.51  4.32  2.54  3.99  3.84  3.72  4.41
    1000 5.75  1.78  5.33  2.98  5.01  4.52  4.74  5.19
    1150 6.77  2.04  6.35  3.43  6.02  5.20  5.75  5.97
    1250 7.44  2.22  7.02  3.73  6.70  5.65  6.43  6.49
    1350 8.12  2.40  7.70  4.03  7.37  6.11  7.10  7.01
    1500 9.13  2.66  8.71  4.47  8.39  6.78  8.12  7.79
    1600 9.81  2.84  9.39  4.77  9.06  7.24  8.79  8.31
    1750 10.82  3.11  10.40  5.22  10.08  7.91  9.81  9.09
    1850 11.50  3.29  11.08  5.52  10.75  8.37  10.48  9.61
    2000 12.51  3.55  12.09  5.97  11.77  9.05  11.50  10.39





    Assembling drawing of blower package



    Rotary Roots Blower Vacuum Pump -40KP motor driven vacuum blower




    Standard supply of scope


    1. blower main body

    2. vacuum safety valve

    3. inlet silencer

    4. outlet silencer

    5. public base (with belt cover)

    6. rubber flexible joint and shock pad

    7. blower pulley

    8. pressure gauge

    9. belt

    10. bolts and nuts and other connection parts

    11. motor
