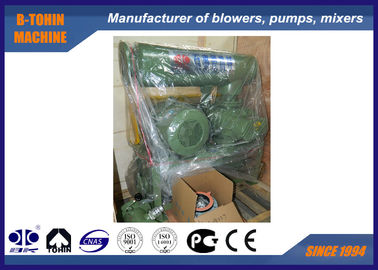

1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump

1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump

    • 1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump
    • 1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump
  • 1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BK6015

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 80 SETS per month
    Contact Now
    Detailed Product Description
    Type: Vacuum Sauction, Roots Type Air Capacity: 14.68-39.13m3/min
    Discharge Differential Pressure: -10KPA - -40KPA Motor Power: 5.5KW-37KW
    Discharge Bore: DN150(6”) Cooling Type: Air
    Driven Type: Motor Driven, Connected By Belt And Pulley





    -20KPA Roots Blower Vacuum Pump,  vacuum air capacity 1800m3/h





    About BK vacuum pump



    BK vacuum pump is designed for vacuum use by exchanging the outlet and inlet of positive application roots blower.



    Its maximum vacuum pressure is -40KPA. Widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries,  it has enjoyed good reputation among customers due to its smooth operation and stable performance.



    Specifications

    Model

    BK6015

    Inlet dimension DN150
    Outlet dimension DN150

    Air capacity

    14.68-39.13m3/min

    Discharge differential pressure

    -10   ~   -40KPA

    Rotary speed

    850-1800rpm

    Motor type

    5.5-37KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Motor efficiency grade IE3

    Installation type

    Standard: horizontal type.

    Vertical type available for your option

    N.W. of blower without motor

    380kg

    Packing size Approx.

    1.8*1.2*2.0m (length*width*height)




    Parameter sheet



    Model Port Dia
    (MM)
    Speed Inlet capacity (m3/min)and shaft power (KW)
    -0.1kgf/cm2 -0.2kgf/cm2 -0.3kgf/cm2 -0.4kgf/cm2
    -1000mmH2O -2000mmH2O -3000mmH2O -4000mmH2O
    -0.01Mpa -0.02Mpa -0.03Mpa -0.04Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW
    BK6015 150(6") 850 17.17  4.71  16.13  8.24  15.35  11.22  14.68  14.22
    1000 20.64  5.54  19.60  9.70  18.81  13.20  18.14  16.73
    1150 24.10  6.37  23.06  11.15  22.28  15.19  21.61  19.24
    1250 26.42  6.92  25.38  12.12  24.59  16.51  23.92  20.91
    1400 29.88  7.75  28.84  13.57  28.06  18.49  27.39  23.42
    1500 32.19  8.31  31.15  14.54  30.37  19.81  29.70  25.10
    1650 35.66  9.14  34.62  16.00  33.83  21.79  33.16  27.61
    1800 39.13  9.97  38.09  17.45  37.30  23.77  36.63  30.12





    Assembling drawing of blower package

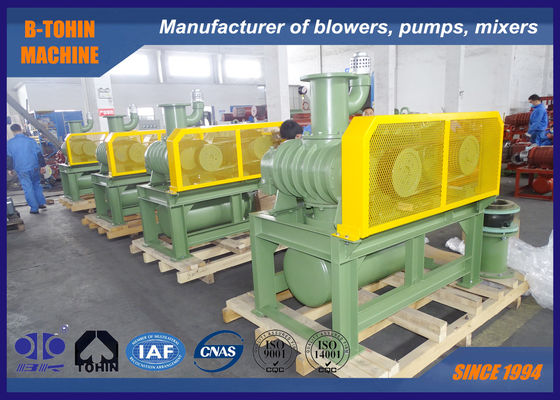

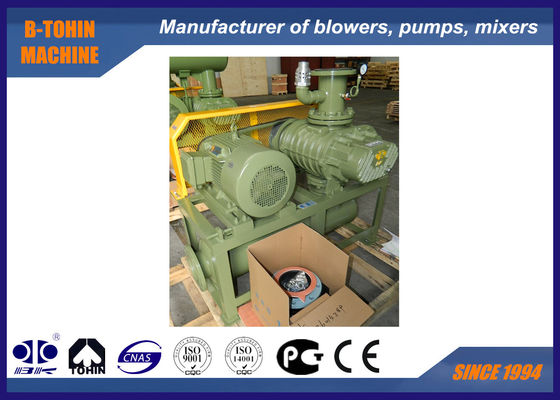

    1800m3/h -20KPA Roots Blower Positive Displacement Vacuum Pump




    Standard supply of scope


    1. blower main body

    2. vacuum safety valve

    3. inlet silencer

    4. outlet silencer

    5. public base (with belt cover)

    6. rubber flexible joint and shock pad

    7. blower pulley

    8. pressure gauge

    9. belt

    10. bolts and nuts and other connection parts

    11. motor
