Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3

Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3

    • Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3
    • Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3
  • Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001
    Model Number: D100-1.7

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation

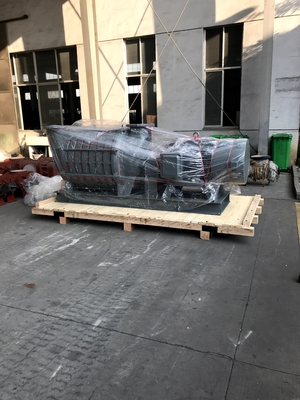

    Packaging Details: Export standard wooden case
    Delivery Time: 20-40 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS per month
    Contact Now
    Detailed Product Description
    Air Capacity: 100m3/min Discharge Differential Pressure: 70KPA
    Motor Power: 160KW Discharge Bore: DN300(12”)
    Cooling Type: Water Driven Type: Coupling
    Application: Sewage Treatment, Smelting Furnace, Coal Preparation Plant, Mine Floatation, Chemical Gas, Vacuum Industry, And Other Gas Conveying, Etc.
    High Light:

    multi stage centrifugal blowers

    ,

    high pressure centrifugal blower



    Paper feeding Multistage Centrifugal Blower, multi-group impeller, air capacity 100m3





    D type Multi-stage Centrifugal Blowers are widely applied to  sewage treatment, smelting furnace, coal preparation plant, mine floatation, chemical gas, vacuum industry, and other gas conveying, etc.

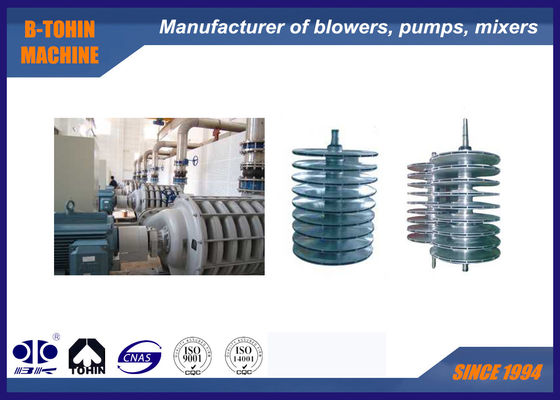

    During the rotation of impeller, due to the effect of rotating centrifugal force and working round diffuser flow,  the speed of the gas is increased, and then convert the velocity energy into pressure energy. Multi-stage centrifugal blower has several groups of impellers on its main shaft, air is compressed by the multiple groups of impeller gradually.






    Specifications



    Model No.

    D100-1.70

    Discharge differential pressure

    70KPA

    Air capacity

    100m3/min

    Motor power

    160

    Shaft power

    134

    Motor type

    380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option






    Features

    .

    1. low noise level. It is machined with advanced CNC machining centers, operating smoothly with low vibration, producing low noise level.



    2. good treatment in sealing, no medium leakage from the blower casing.



    3. energy saving and in high quality, long service life.



    4. equipped with famous brand accessories, reliable quality and stable operating performance.



    5. bearing is lubricated by lubrication oil, not grease, which ensures long service life.



    6. blower and motor can be connected by coupling directly and by belt also.

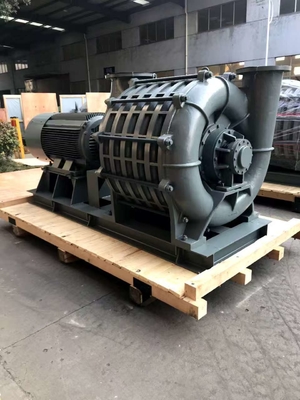

    Structure of blower main body



    Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3 0










    Assembling drawing of blower package



    Paper feeding Multistage Centrifugal Blower , multi-group impeller , air capacity 100m3 1



    Standard supply of scope



    1. Blower main body

    2. Inlet muffler (with air filter)

    3. Public base for motor and blower(including coupling cover)

    4. Inlet manual butterfly valve

    5. Motor

    6. Pressure gauge

    7. Mounting bolts and connection accessories

    8. Check valve
