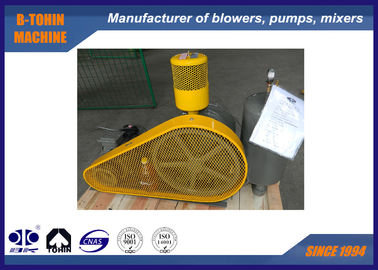

HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products

HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products

    • HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products
    • HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products
  • HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products

    Product Details:

    Place of Origin: China
    Brand Name: TOHIN
    Certification: ISO9001/ISO14001
    Model Number: HC-801S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 5-20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 1000 SETS per month
    Contact Now
    Detailed Product Description
    Air Capacity: 3.53-3.25m3/min Discharge Differential Pressure: 10-50KPA
    Motor Power: 5.5KW Discharge Bore: DN65(2 1/2”)
    Main Materials: HT200 Cast Iron Key Technology: Tohin Shoji Co., Ltd., Japan
    Noise Level: 74 DB(A) History: 65 Years
    High Light:

    rotary positive displacement blower

    ,

    industrial air blower





    Hospital HC-801S Rotary Air Blower, small oyxgen aerator, 5.5kW,  noise 74dB(A)






    About HC


    With its exquisite design imported from Japan, the HC blower is of excellent performance and widely adopted by overseas customers. It has enjoyed good reputation among the customers both at home and abroad by its low noise, energy saving, smooth operation, convenient installation, compact structure and good performance.

    .



    Specifications



    Air capacity

    3.53m3/min

    3.45m3/min

    3.38m3/min

    3.33m3/min

    3.25m3/min

    Discharge differential pressure

    10KPA

    20 KPA

    30KPA

    40 KPA

    50KPA

    Rotary speed

    500rpm

    Motor type

    5.5KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    N.W. of blower package

    275kg

    Packing size Approx.

    1.54*0.65*1.6m (length*width*height)






    Applications

    • Wastewater aeration
    • Mixing and aerating of hospital and laboratory waste products
    • Conveying papers in offset printing operations
    • Agitation and aeration for plating tanks and waste water
    • Air supplier for plastic welding and blowing
    • For mist spray of burner and in glass industry and others
    • new rural construction wastewater treatment projects and residential building sewage treatment




    Features

    • Compact, low noise and economical energy consumption. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, litter energy consumption)



    • Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and nearly no vibration produced if placed correctly, not requiring any other vibration-proof device.)



    • Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)



    • Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.)



    • Good material, special structure designed in Japan, remarkable performance



    • performance (All parts of the blowers are made of superior material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)



    • Simple maintenance, rare malfunctions, long using life (The low speed of blower ensures small abrasion and long life.)




    Working Principle



    The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle (imported from Japan), then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, circumfluence of air in cylinder will not occur.






    Standard supply of scope

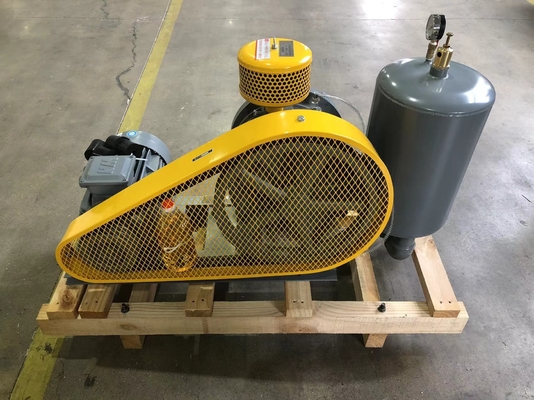

    HC Rotary blower's structure is exquisite. It mainly consists of air chamber, electric motor, air filter, blower body, base (and oil tank),  unique designed oil dropping nozzle and connection parts.



    HC-801S 5.5kW 74dB(A) Rotary Positive Blower for Hospital and Laboratory Waste Products 0
