7.5KW Submersible wastewater pumps for fish pond , farm irrigation

7.5KW Submersible wastewater pumps for fish pond , farm irrigation

7.5KW Submersible wastewater pumps for fish pond , farm irrigation

Product Details:

Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: 100YYWQ80-18-7.5

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation

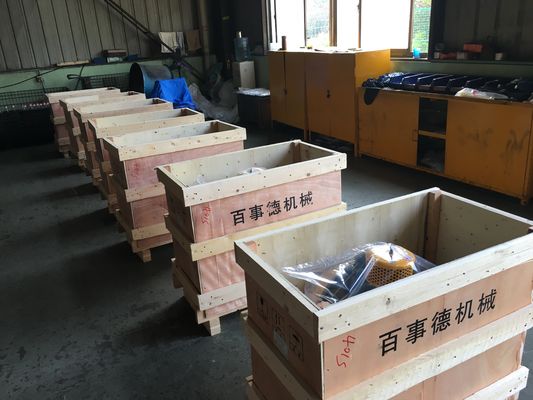

Packaging Details: Export standard wooden case
Delivery Time: 10-20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 100 SETS per month
Contact Now
Detailed Product Description
Model: 100YYWQ80-18-7.5 Motor Power: 7.5KW
Main Materials: Cast Iron Discharge Bore Size: 100mm
Head: 13-21m Flow Rate: 65-120m3/h
Application:: Drainage, Sewage, Wastewater, Farm Irrigation, Etc.





7.5KW Submersible Sewage Pump, submersible water pump, fish pond water drain pump




About WQ pump



WQ series submersible sewage pump is mainly used for municipal works, industrial buildings, hotels, hospitals, people's air defense, mines etc. Trades to drain off the sewage, waste water, rainwater and living water in cities containing solid grains and various long fabrics.



As its good performance and high quality, WQ series diving sewage pump is widely used.








Working conditions



1. the temperature of medium should not exceed 40℃.and the density can’t be larger than 1200Kg/m3 with PH value between 5 and 9.



2. specified voltage: 380V,specified frequency:50Hz. Motor shall be operated under the circumstance of specified voltage and specified frequency.



3. the largest diameter of solid passing through pumps shall not exceed the half diameter of pump exit.






Specifications



Model No.

100YYWQ80-18-7.5

Motor Power

15KW, 380/400/415/440V, 50HZ, 3 phases, 4 poles

Main Materials

cast iron

Bore

80mm

Flow

65-120m3/h

Rated Head

13-21m

Rotary speed 1440r/min

N.W. of pump

135kg






Parameters



Model Discharge bore Flow rate () Head

Rotary

speed

Motor power Efficiency
(mm) (m3/h) (l/s) (m) (r/min) (kW) (%)
100YYWQ80-18-7.5 100 65 18.1 21 1440 7.5 58
80 22.2 18 64
120 33.3 13 67






Features

  •  Adopt CFD technology and being more efficient.



  • Use unique mechanical seal pattern and bearing structure for more reliable performance.



  • Being compact structure with small volume and light weight, and easier for daily maintenance.



  • Submersible running with low noise.




Performance curve



7.5KW Submersible wastewater pumps for fish pond , farm irrigation






Structure and materials of pump



Bearing:  ball bearings with a reasonable configuration, extending the duration of the pump.



Cooling: cooling system for 11KW motor or larger motor can ensure the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system.



Motor: Of F class insulation, max. working temperatures 155 ℃, and of a protective grade IPX8 with the effective seal.



Mechanical seal: Use Bogman mechanic al seal of Germany, two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection. The sealing material on the pump side is tungsten carbide, while on the motor side, graphite/silicon carbide.



Oil chamber: Oil can lubricate and cool the mechanical seal and realize the attached function of safety by preventing liquid from penetrating into the motor. The air of a certain amount left inside of the chamber can lower the pressure accumulatively raised.



Impeller: With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.



Pump case: use the know-how of CAD/CAM for achieving higher efficiency.



Shaft: The pump is coaxial with the motor and the sealing device on the end of the shaft avoids contact with the medium so as to protect it from corrosion. The as short as possible designed stretched rotating ensures no deflection and low vibration, extend the duration of both mechanical seal and bearing and lower the noise at running.





7.5KW Submersible wastewater pumps for fish pond , farm irrigation
