DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    • DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller
    • DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller
  • DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001
    Model Number: GS210-1.7

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 20-40 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 10 SETS per month
    Contact Now
    Detailed Product Description
    Air Capacity: 210m3/min Discharge Differential Pressure: 80KPA
    Motor Power: 355KW Discharge Bore: DN400(14”)
    Cooling Type: Water Driven Type: Coupling
    Materials Of Impeller: Aerial Aluminum Alloy

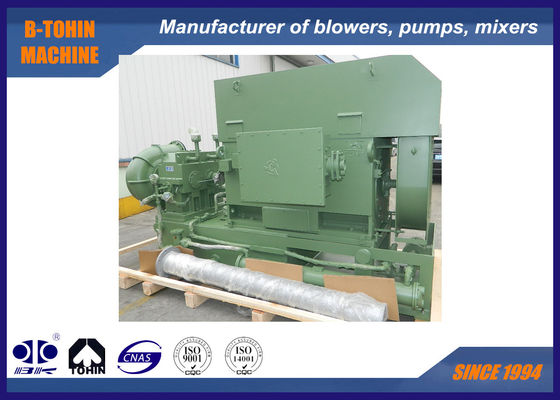

    DN400 Single Stage Centrifugal Blower,   Aerial Aluminum Alloy impeller




    About GS

            Single-speed High-speed centrifugal blower is the new product which designed by B-Tohin Machine.   The pneumatic performance and structural design of the series of products has reached the advanced level
    of similar products at home and abroad .The blowers are widely used in sewage water treatment, metallurgy,
    fluidization of circulating fluidization bed boiler in power station, exhaust gas desulphurization, pharmacy ,
    gas booster and so on.




    Specifications


    Model No.

    GS210-1.8

    Discharge differential pressure

    80KPA

    Motor power

    355KW

    Air capacity

    210m3/min

    Motor type

    380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option





    Applications

    a. For Cement industry: cement conveying blower,ventilating, etc.
    b. For Sewage Treatment System: aeration blower, back-washing blower, etc.
    c. For Pneumatic Conveying: to conveying powder materials, such as flour, cement, sand, grain, etc.
    d. For Dust Collecting, dust cleaning, ventilation in some factory, hospital, buildings, etc.
    e. For Electric Power Plant: gas conveying, oxygen increasing, ventilating, dust cleaning, etc.




    Key Technology


    1. Inlet guide vane device

    • position——in front of blower impeller
    • Function——Not only for adjusting the blower capacity within  45% - 100%, but also for ensuring the blower to reach the highest efficiency within adjusting scope, especially when operation parameters deviating from the designed data (low temperature or low pressure).
    • Adjusting——automatic or manual operation by clicking the touch screen on blower control box. Under the automatic operation, the inlet guide vane is adjusted by electric operator at a set ratio after it receives 4-20mA DC signal, while under manual operation or maintenance condition, the vane is adjusted manually.
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    2. Mature volute design




    Reliable pneumatic performance, high efficiency, multi-variable efficiency of 85 %.

    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    3. Impeller of high efficiency

    • The curve for the impeller is selected recurring to simulate working condition on computer, and better fitting for the actual flowage of gas.
    • Made of aerial aluminum alloy or stainless steel, open path backward bent (smallest dip angle of 6 degree), surface fine machined.
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    4. Step-up gear box structure and bearing of high reliability



    • The gear box is of horizontal –split structure,  volute casing  connected to lower casing and separated from upper casing,through which shorten the time required for unloading box cover.

    • High-speed shaft adopts hard thrust disc technology, high-efficiency and low mechanical loss confirmed by line contact.
    • Ellipse ( dislocation ) bearing adopted for big gear,tilting-pad bearing for high-speed gear.
    • The shaft of blower and gear is made of heat-treated forging steel and proper grinded. Every horizontal critical speed is within the scope of±15% than the normal speed, and torsion resonance speed is within the scope of±10% than the running speed, all rotating parts is dynamic balanced.
    • The step-up gear is of Parallel Axis helical type with integral small gear and rotating shaft.

    • Made of surface-quenching forging alloy steel and precisely grinded, the gear’s service index is 1.8 at least.
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    5. High-precision gear driving

    • Gear of the highest quality grade adopted
    • Gear precision grade is stabilized at ISO1328 5~4
    • The highest precision grade can reach 3.
    •  Precision grade equal to the standard AGMA  or DIN
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    6. Connection between impeller and high-speed shaft

    • Adopt the connection type of  straight end-face key (pin) and triangular shaft
    • The highest power can be transferred reaches  3,000 kW.
    • Convenient in assembling and disassembling without damage to parts
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    7. Seals of high performance

    • The material of seals is alloy of soft texture. (spiral seal adopted)
    • Reliable function, long service life
    • No leakage problem
    • Low cost required for maintenance, convenient in replacement
    • Energy consumption lowered by no friction





    Operation result

    • The most Striking feature of GS blower is energy efficiency.

    From Mar. 1, 2009, we have started trial running of one blower (Model: GS160) in Qiting Sewage Treatment Plant.



    Comparing with two roots blowers each of capacity 80m3/min and motor power 132kW operated before, every month 30000 RMB has been saved after use of GS Single-stage High-speed Centrifugal Blower, though it is not at full load operation.

    • Safer and More Convenient

    Controlled full-automatically with every breakdown recorded, more convenient for operator

    •  Low noise

    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impellerDN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    Other installation pictures:
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller




    Assembling drawing of blower package
    DN400 Single Stage Centrifugal Blowers with Aerial Aluminum Alloy impeller

    Standard supply of scope

    1. Blower Main body
    2. Inlet guide vane
    3. Inlet silencer
    4. Stainless steel flexible joint
    5. High speed gear box
    7. Discharge valve
    8. Check valve
    9. Base frame
    10. Lubricant system
    11. PLC control box
    12. Motor
