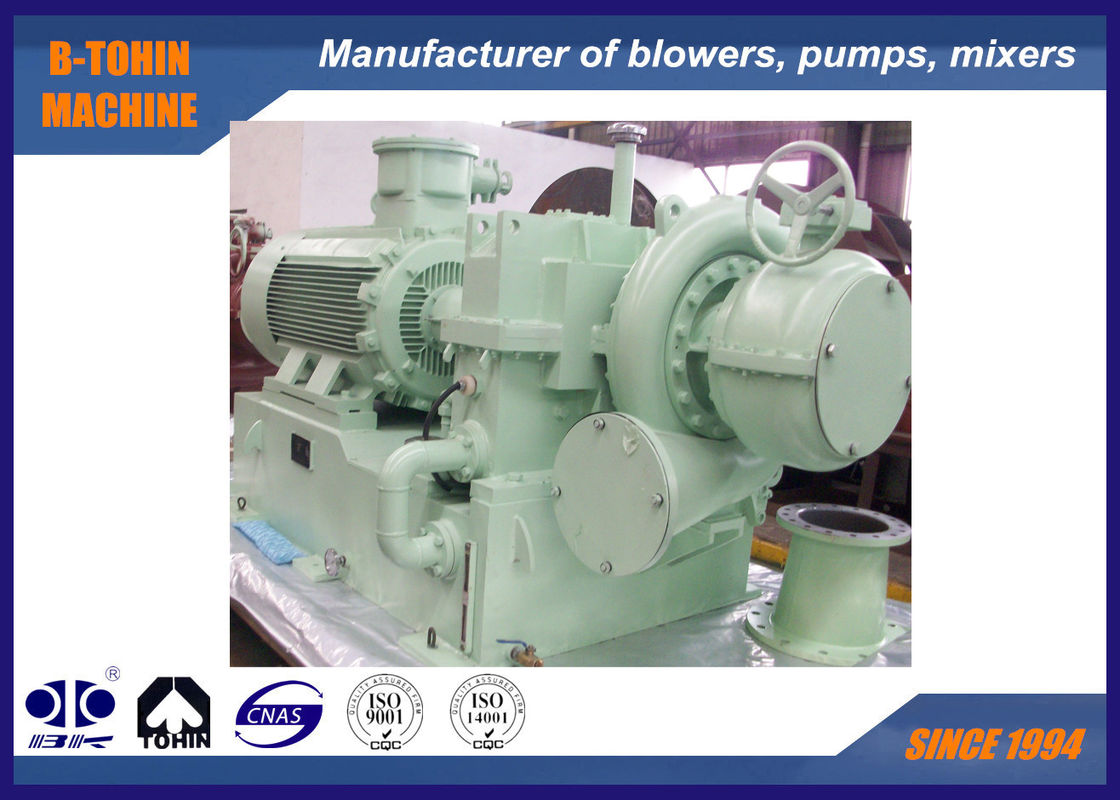

60KPA Single Stage High Speed Centrifugal Blower for large water plant

60KPA Single Stage High Speed Centrifugal Blower for large water plant

  • 60KPA Single Stage High Speed Centrifugal Blower for large water plant
  • 60KPA Single Stage High Speed Centrifugal Blower for large water plant
60KPA Single Stage High Speed Centrifugal Blower for large water plant
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: GS160-1.6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20-40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 10 SETS per month
Contact Now
Detailed Product Description
Air Capacity: 160m3/min Discharge Differential Pressure: 60KPA
Motor Power: 220KW Discharge Bore: DN300(12”)
Cooling Type: Water Driven Type: Coupling
Materials Of Impeller: Aerial Aluminum Alloy
High Light:

single stage compressors

,

high speed centrifugal blower


60KPA Single Stage Centrifugal Blower, gear step-up blower, aerator for large water plant



About GS

        Single-speed High-speed centrifugal blower is the new product which designed by B-Tohin Machine.   The pneumatic performance and structural design of the series of products has reached the advanced level
of similar products at home and abroad .The blowers are widely used in sewage water treatment, metallurgy,
fluidization of circulating fluidization bed boiler in power station, exhaust gas desulphurization, pharmacy ,
gas booster and so on.




Specifications


Model No.

GS160-1.6

Discharge differential pressure

60KPA

Motor power

220KW

Air capacity

160m3/min

Motor type

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option





Applications

a. For Cement industry: cement conveying blower,ventilating, etc.
b. For Sewage Treatment System: aeration blower, back-washing blower, etc.
c. For Pneumatic Conveying: to conveying powder materials, such as flour, cement, sand, grain, etc.
d. For Dust Collecting, dust cleaning, ventilation in some factory, hospital, buildings, etc.
e. For Electric Power Plant: gas conveying, oxygen increasing, ventilating, dust cleaning, etc.




Key Technology


1. Inlet guide vane device

  • position——in front of blower impeller
  • Function——Not only for adjusting the blower capacity within  45% - 100%, but also for ensuring the blower to reach the highest efficiency within its adjusting scope, especially when operation parameters deviating from the designed data (low temperature or low pressure).
  • Adjusting——automatic or manual operation by clicking the touch screen on blower control box. Under the automatic operation, the inlet guide vane is adjusted by electric operator at a set ratio after it receives 4-20mA DC signal, while under manual operation or maintenance condition, the vane is adjusted manually.
60KPA Single Stage High Speed Centrifugal Blower for large water plant 0

2. Mature volute design




Reliable pneumatic performance, high efficiency, multi-variable efficiency of 85 %.

60KPA Single Stage High Speed Centrifugal Blower for large water plant 1

3. Impeller of high efficiency

  • The curve for the impeller is selected recurring to simulate working condition on computer, and better fitting for the actual flowage of gas.
  • Made of aerial aluminum alloy or stainless steel, open path backward bent (its smallest dip angle of 6 degree), surface fine machined.
60KPA Single Stage High Speed Centrifugal Blower for large water plant 2

4. Step-up gear box structure and bearing of high reliability



  • The gear box is of horizontal –split structure,  volute casing  connected to lower casing and separated from upper casing,through which shorten the time required for unloading box cover.

  • High-speed shaft adopts hard thrust disc technology, high-efficiency and low mechanical loss confirmed by line contact.
  • Ellipse ( dislocation ) bearing adopted for big gear,tilting-pad bearing for high-speed gear.
  • The shaft of blower and gear is made of heat-treated forging steel and proper grinded. Every horizontal critical speed is within the scope of±15% than the normal speed, and torsion resonance speed is within the scope of±10% than the running speed, all rotating parts is dynamic balanced.
  • The step-up gear is of Parallel Axis helical type with integral small gear and rotating shaft.

  • Made of surface-quenching forging alloy steel and precisely grinded, the gear’s service index is 1.8 at least.
60KPA Single Stage High Speed Centrifugal Blower for large water plant 3

5. High-precision gear driving

  • Gear of the higher quality grade adopted
  • Gear precision grade is stabilized at ISO1328 5~4
  • The precision grade can reach 3.
  •  Precision grade equal to the standard AGMA  or DIN
60KPA Single Stage High Speed Centrifugal Blower for large water plant 4

6. Connection between impeller and high-speed shaft

  • Adopt the connection type of  straight end-face key (pin) and triangular shaft
  • The highest power it can transfer reaches  3,000 kW.
  • Convenient in assembling and disassembling without damage to parts
60KPA Single Stage High Speed Centrifugal Blower for large water plant 5

7. Seals of high performance

  • The material of seals is alloy of soft texture. (spiral seal adopted)
  • Reliable function, long service life
  • No leakage problem
  • Low cost required for maintenance, convenient in replacement
  • Energy consumption lowered by no friction





Operation result

  • The most Striking feature of GS blower is energy efficiency.

From Mar. 1, 2009, we have started trial running of one blower (Model: GS160) in Qiting Sewage Treatment Plant.



Comparing with two roots blowers each of capacity 80m3/min and motor power 132kW operated before, every month 30000 RMB has been saved after use of GS Single-stage High-speed Centrifugal Blower, though it is not at full load operation.

  • Safer and More Convenient

Controlled full-automatically with every breakdown recorded, more convenient for operator

  •  Low noise

60KPA Single Stage High Speed Centrifugal Blower for large water plant 660KPA Single Stage High Speed Centrifugal Blower for large water plant 7

Other installation pictures:
60KPA Single Stage High Speed Centrifugal Blower for large water plant 8    60KPA Single Stage High Speed Centrifugal Blower for large water plant 9




Assembling drawing of blower package
60KPA Single Stage High Speed Centrifugal Blower for large water plant 10

Standard supply of scope

1. Blower Main body
2. Inlet guide vane
3. Inlet silencer
4. Stainless steel flexible joint
5. High speed gear box
7. Discharge valve
8. Check valve
9. Base frame
10. Lubricant system
11. PLC control box
12. Motor
