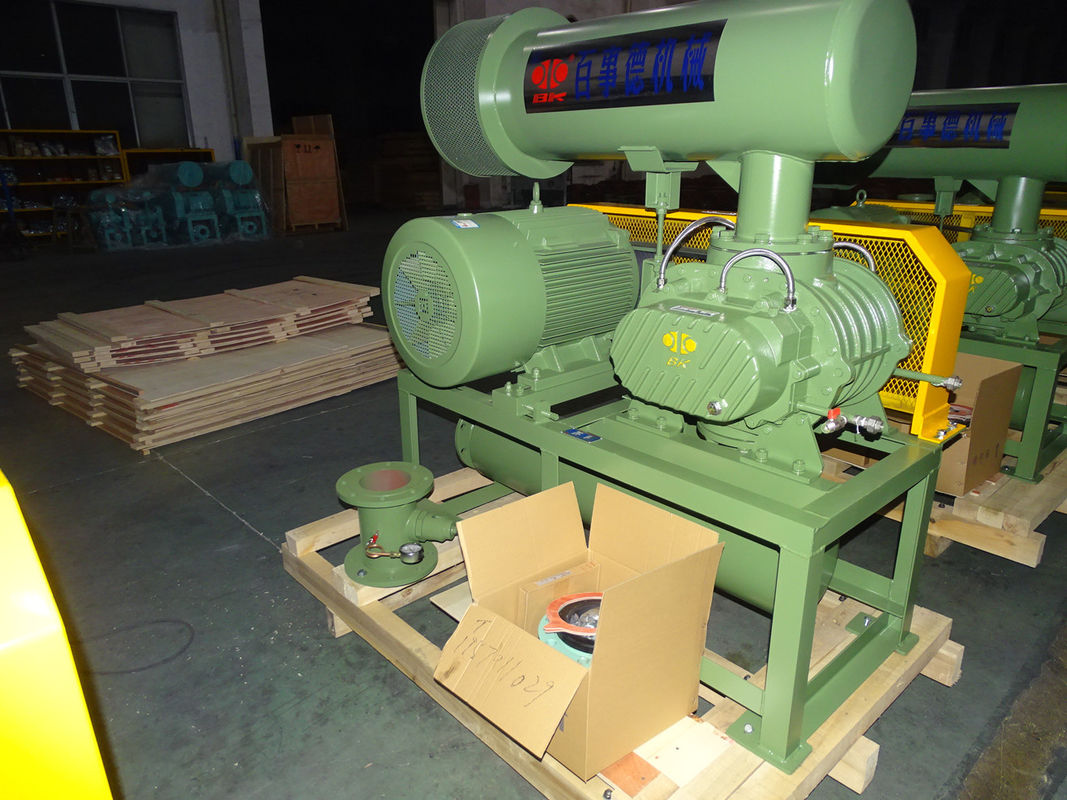

100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe

100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe

  • 100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe
  • 100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe
100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW7011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
Air Capacity: 20m3/min Discharge Differential Pressure: 100KPA
Motor Power: 55W Driven Type: Motor Driven, Connected By Belt And Pulley
Installation Type: Horizontal, Vertical Available Also Lobe Type: 3 Lobe, Made Of QT500
Sealing Type: Skeleton Oil Seal, Fluoro Rubber, SKF
High Light:

100kpa mini roots blower

,

mini roots blower three lobe

,

three lobe root blower air pump


Water Treatment Roots Rotary Lobe Blower,  high pressure 100KPA  air compressor

BKW blower can be used for various industries, such as for separating small particles and algae in groundwater, recovering valuable products in industrial sewage and so on. It can reach the air capacity of 3900 m3/h under 80KPA rising pressure.






Specifications


Model

BKW7011

Discharge bore size DN150 (6")

Air capacity

20m3/min

Discharge differential pressure

100KPA

Rotary speed

1250rpm

Cooling water volume

10 l/min

Motor type

55KW
380/400/415/440V, 3PHASES, 50/60HZ

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of main blower body

790kg





Features



1. Integral-shaft ductile iron impellers
2. Large size of cylindrical roller bearings
3. Hardened teeth face for precision helical timing gear

4. Tri-lobe rotor with optimized curve
5. Flexible installation ways available






Parameter sheet

Model Port Dia (MM) Speed Inlet airflow (m3/min)and shaft power(KW)(m3/min)
0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2 0.9kgf/cm2 1.0kgf/cm2 Cooling
Water
6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min
BKW7011 150 (6") 700 10.14 17.48 9.72 18.62             10
850 13.40 21.22 12.99 22.60 12.62 25.76 12.27 29.04 11.92 32.20
1000 16.66 24.96 16.25 26.59 15.88 30.30 15.53 34.17 15.18 37.88
1150 19.92 28.71 19.51 30.58 19.14 34.85 18.79 39.29 18.44 43.56
1250 22.10 31.21 21.69 33.24 21.32 37.88 20.97 42.71 20.62 47.35
1400 25.36 34.95 24.95 37.23 24.58 42.42 24.23 47.84 23.88 53.03
1500 27.54 37.45 27.12 39.89 26.75 45.45 26.41 51.25 26.06 56.82






Structure of blower main body

100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe 0




Flow direction of cooling water

100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe 1




Available accessories for your choice

1. inlet silencer (with air filter)
2. outlet silencer
3. relieve valve
4. check valve
5. flexible joint
6. pressure gauge
7. blower pulley and motor pulley
8. V-belt
9. belt cover
10. public base
11. motor

12. control cabinet

13. acoustic enclosure



100 Kpa 20m3/Min 6" 55 Kw Cast Iron Mini Roots Blower Three Lobe 2
