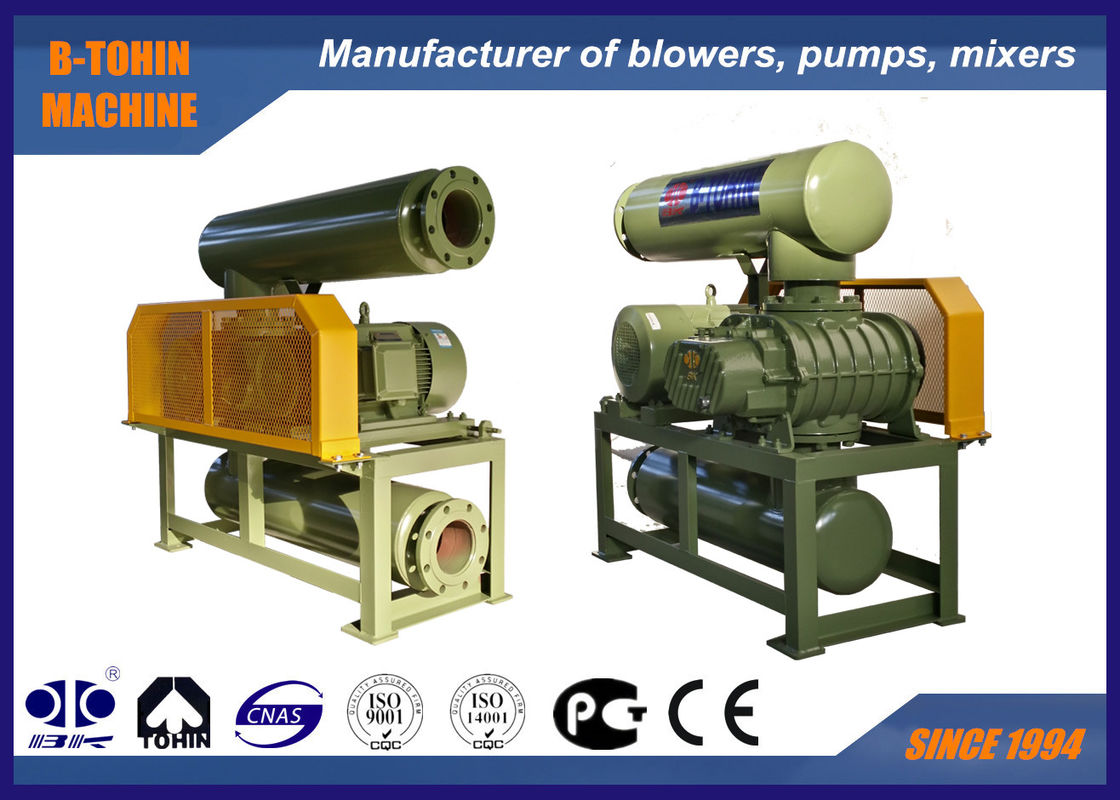

-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower

-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower

    • -10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
    • -10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
  • -10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BK6015

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 80 SETS per month
    Contact Now
    Detailed Product Description
    Type: Vacuum Sauction, Roots Type Air Capacity: 14.68-39.13m3/min
    Discharge Differential Pressure: -10KPA - -40KPA Motor Power: 5.5-37KW
    Discharge Bore: DN150(6”) Cooling Type: Air
    Driven Type: Motor Driven, Connected By Belt And Pulley





    -10KPA - 40KPA Roots Blower Vacuum Pump DN150, lobe rotary




    About BK6015 Vacuum Blower



    BK6015 vacuum blower is a kind of displacement Roots type air pump. It can reach -40KPA vacuum pump.  It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.




    Specifications


    Model

    BK6015

    Air capacity

    14.68-39.13m3/min

    Discharge differential pressure

    -10   ~   -40KPA

    Rotary speed

    850-1800rpm

    Motor type

    5.5-37KW

    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor

    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.

    Vertical type available for your option

    N.W. of blower without motor

    380kg

    Packing size Approx.

    1.8*1.2*1.95m (length*width*height)




    Parameter sheet



    Art No.

    Port
    Dia

    (MM)

    Speed

    -0.1kgf/cm2

    -0.2kgf/cm2

    -0.3kgf/cm2

    - 0.4kgf/cm2

    -1000mmH2O

    -2000mmH2O

    -3000mmH2O

    -4000mmH2O

    -0.01Mpa

    -0.02Mpa

    -0.03Mpa

    -0.04Mpa

    rpm

    m3/min

    KW

    m3/min

    KW

    m3/min

    KW

    m3/min

    KW

    BK6015

    150(6")

    850

    17.17

    4.71

    16.13

    8.24

    15.35

    11.22

    14.68

    14.22

    1000

    20.64

    5.54

    19.60

    9.70

    18.81

    13.20

    18.14

    16.73

    1150

    24.10

    6.37

    23.06

    11.15

    22.28

    15.19

    21.61

    19.24

    1250

    26.42

    6.92

    25.38

    12.12

    24.59

    16.51

    23.92

    20.91

    1400

    29.88

    7.75

    28.84

    13.57

    28.06

    18.49

    27.39

    23.42

    1500

    32.19

    8.31

    31.15

    14.54

    30.37

    19.81

    29.70

    25.10

    1650

    35.66

    9.14

    34.62

    16.00

    33.83

    21.79

    33.16

    27.61

    1800

    39.13

    9.97

    38.09

    17.45

    37.30

    23.77

    36.63

    30.12





    Assembling drawing of blower package



    -10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower




    Standard supply of scope


    1. blower main body

    2. vacuum safety valve

    3. inlet silencer

    4. outlet silencer

    5. public base (with belt cover)

    6. rubber flexible joint and shock pad

    7. blower pulley

    8. pressure gauge

    9. belt

    10. bolts and nuts and other connection parts

    11. motor
