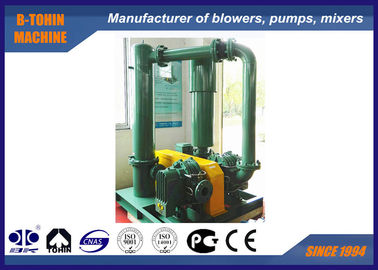

100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower

100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower

  • 100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower
  • 100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower
  • 100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower
100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKD-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Type: Roots Air Blower, Three Lobes, Two Stage Air Capacity: 3.16-8.35m3/min
Discharge Pressure: 100-150KPA Motor Power: 15-30KW
Discharge Bore: DN65(2.5”) Connection Type: Belt And Pulley
Application:: Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Pipe Clearing, Power Plant, Etc. Cooling Type: Water And Middle Cooler
High Light:

roots style blower

,

belt driven blowe


100KPA - 150KPA Roots Air Blower BKD-1000, two stage, high pressure roots blower


About BKD

BKD series is a two-stage roots blower. It is composed of two BKW blowers for reaching higher pressure. Good performance is promised by a middle cooling system between the first and the second stage, which ensures standard temperature of airflow into the second stage blower.


Specifications

Model

BKD-1000

Air capacity

3.16-8.35m3/min

Discharge differential pressure

100-150KPA

Rotary speed

850-1600rpm

Cooling water volume

32 l/min

Motor type

15-30KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

500kg

Packing size Approx.

1.4*1.2*1.9m (length*width*height)

Features

1. Water cooling for the bearings at both end-plates lowers the bearing’s operation temperature.
2. Middle cooler equipped for stable running of blower



Parameter Sheet

Art No. Speed
(rpm)
Inlet capacity (m3/min)and shaft power (KW) Cooling
water
1.0kgf/cm2 1.2kgf/cm2 1.4kgf/cm2 1.5kgf/cm2
10000mH2O 12000mH2O 14000mH2O 15000mH2O
0.098Mpa 0.118Mpa 0.137Mpa 0.147Mpa
Ⅰstage Ⅱstage m3/min kw m3/min kw m3/min kw m3/min kw L/min
BKD-1000

Outlet Dia:
65
(2.5")

Composed of
BKW5006
+
BKW5003
850 1050 3.52 10.18 3.35 11.53 3.21 12.74 3.16 13.54 32
1000 1200 4.49 11.80 4.32 13.37 4.17 14.76 4.13 15.68
1150 1350 5.45 13.42 5.28 15.20 5.14 16.78 5.09 17.83
1250 1450 6.10 14.50 5.93 16.42 5.78 18.13 5.74 19.26
1350 1550 6.74 15.58 6.57 17.64 6.42 19.47 6.38 20.69
1500 1700 7.71 17.20 7.54 19.48 7.39 21.50 7.34 22.83
1600 1800 8.35 18.28 8.18 20.70 8.03 22.84 7.99 24.26



Airflow and cooling system

100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower 0


Assembling drawing of blower package

100KPA - 150KPA Roots Air Blower BKD-1000 two stage roots blower 1


Standard supply of scope

1. blower main body 1
2. blower main body 2
3. pressure relieve valve
4. check valve
5. inlet silencer(with air filter)
6. outlet silencer
7. public base (with belt cover)
8. rubber flexible joint and shock pad
9. pulley
10. pressure gauge
11. belt
12. bolts and nuts and other connection parts
13. motor
14. middle cooler
