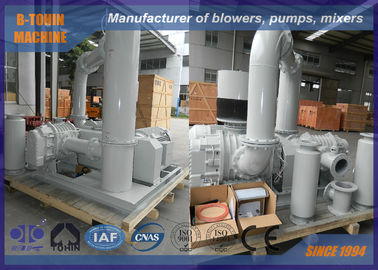

High Pressure Roots Air Blower two stage DN200 , roots lobe blower

High Pressure Roots Air Blower two stage DN200 , roots lobe blower

    • High Pressure Roots Air Blower two stage DN200 , roots lobe blower
    • High Pressure Roots Air Blower two stage DN200 , roots lobe blower
  • High Pressure Roots Air Blower two stage DN200 , roots lobe blower

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BKD-5000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export standard wooden case
    Delivery Time: 15 to 30 working days, depends on order amount and specification
    Supply Ability: 50 SETS per month
    Contact Now
    Detailed Product Description
    Type: Roots Air Blower, Three Lobes, Two Stage Air Capacity: 29.44-61.25m3/min
    Discharge Pressure: 100-150KPA Motor Power: 90-185W
    Discharge Bore: DN200(8”) Connection Type: Belt And Pulley
    Application:: Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Pipe Clearing, Power Plant, Etc. Cooling Type: Water And Middle Cooler


    High Pressure Roots Air Blower, two stage, DN200, roots lobe blower


    About BKD

    BKD series is a two-stage roots blower. It is composed of two BKW blowers for reaching higher pressure. Good performance is promised by a middle cooling system installed between the first and the second stage, which ensures standard temperature of airflow into the second stage blower.


    Specifications

    Model

    BKD-5000

    Air capacity

    29.44-61.25m3/min

    Discharge differential pressure

    100-150KPA

    Rotary speed

    850-1400rpm

    Cooling water volume

    90 l/min

    Motor type

    90-185KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: vertical type

    N.W. of blower without motor

    1900kg

    Packing size Approx.

    2.5*2.4*3.2m (length*width*height)

    Features

    1. Water cooling for the bearings at both end-plates lowers the bearing’s operation temperature.
    2. Middle cooler equipped for ease temperature rising



    Parameter Sheet

    Art No. Speed
    (rpm)
    Inlet capacity (m3/min)and shaft power (KW) Cooling
    water
    1.0kgf/cm2 1.2kgf/cm2 1.4kgf/cm2 1.5kgf/cm2
    10000mH2O 12000mH2O 14000mH2O 15000mH2O
    0.098Mpa 0.118Mpa 0.137Mpa 0.147Mpa
    Ⅰstage Ⅱstage m3/min kw m3/min kw m3/min kw m3/min kw L/min
    BKD-5000
    Outlet Dia:
    200
    (8")

    Composed of
    BKW8024
    +
    BKW8016
    850 850 32.23 77.31 30.76 87.89 30.07 93.06 29.44 94.45 90
    1000 1000 40.15 90.96 38.67 103.40 37.98 109.49 37.35 111.11
    1150 1150 48.06 104.60 46.58 118.91 45.90 125.91 45.26 127.78
    1250 1250 53.34 113.69 51.86 129.25 51.17 136.86 50.54 138.89
    1400 1400 61.25 127.34 59.77 144.75 59.09 153.28 58.45 155.56



    Airflow and cooling system

    High Pressure Roots Air Blower two stage DN200 , roots lobe blower


    Assembling drawing of blower package

    High Pressure Roots Air Blower two stage DN200 , roots lobe blower


    Standard supply of scope

    1. the first stage blower
    2. the second stage blower
    3. pressure relieve valve
    4. check valve
    5. inlet silencer(with air filter)
    6. outlet silencer
    7. public base (with belt cover)
    8. rubber flexible joint and shock pad
    9. pulley
    10. pressure gauge
    11. belt
    12. bolts and nuts and other connection parts
    13. motor
    14. middle cooler
