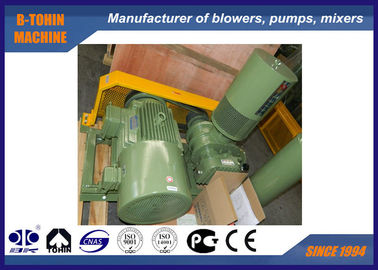

Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan

Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan

    • Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan
    • Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan
    • Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan
  • Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE
    Model Number: BK100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 50 SETS per month
    Contact Now
    Detailed Product Description
    Air Capacity: 6.65-13.48m3/min Discharge Differential Pressure: 10-80KPA
    Motor Power: 7.5-22KW Discharge Bore: DN100
    Cooling Type: Air Connection Type: Belt And Pulley
    High Light:

    belt driven blowe

    ,

    water treatment blower



    3-lobe Roots Air Blower,  DN100 air blower, oxygen generator fan


    About BK-3

    BK-3, the third generation of BK blower,  It is featured of perfect rotor curve and natural air cooling type when boost pressure is 80KPA. Its main parts are manufactured by numerical control machines of high precision.






    Specifications


    Model

    BK80

    Air capacity

    5.72-13.48m3/min

    Discharge differential pressure

    10-80KPA

    Rotary speed

    1400-2350rpm

    Motor type

    7.5-22KW
    380/400/415/440V/220V, 3PHASES, 50/60HZ, frequencytype

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Vertical type

    N.W. of blower without motor

    251kg

    Packing size Approx.

    1.55*1.15*1.45m (length*width*height)





    Features

    • Optimized lobe curve
    • Different hollow design of end-cover
    • Deep groove ball bearing of high precision, low friction factor and enlarged size
    • Compact  structure for saving floor space.




    Applications

    Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan 0


     Parameter



    Model

    Rotary

    Speed
    (RPM)

    Inlet capacity (m3/min)and shaft power (kW) under various pressure
    0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
    m3/min KW m3/min KW m3/min KW m3/min KW
    BK100 1400 7.61  5.16  7.19  6.13  6.86  7.09  6.58  8.06
    1550 8.54  5.72  8.11  6.78  7.78  7.85  7.51  8.92
    1750 9.78  6.46  9.35  7.66  9.02  8.87  8.74  10.07
    1850 10.39  6.82  9.97  8.10  9.64  9.37  9.36  10.65
    2050 11.63  7.56  11.20  8.97  10.87  10.39  10.60  11.80
    2200 12.56  8.12  12.13  9.63  11.80  11.15  11.52  12.66
    2350 13.48  8.67  13.05  10.29  12.73  11.91  12.45  13.52



    Model

    Rotary

    Speed
    (RPM)

    Inlet capacity (m3/min)and shaft power (kW) under various pressure
    0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
    m3/min KW m3/min KW m3/min KW m3/min KW
    BK100 1400 6.34  9.02  6.12  9.99  5.91  10.95  5.72  11.91
    1550 7.26  9.99  7.04  11.05  6.84  12.12  6.65  13.19
    1750 8.50  11.28  8.28  12.48  8.08  13.69  7.89  14.89
    1850 9.12  11.92  8.90  13.19  8.69  14.47  8.50  15.74
    2050 10.35  13.21  10.13  14.62  9.93  16.03  9.74  17.44
    2200 11.28  14.18  11.06  15.69  10.85  17.21  10.67  18.72
    2350 12.21  15.14  11.98  16.76  11.78  18.38  11.59  20.00






    Assembling drawing of blower package
    Air Cooling Type 3 Lobe Roots Blower DN100 oxygen generator fan 1
