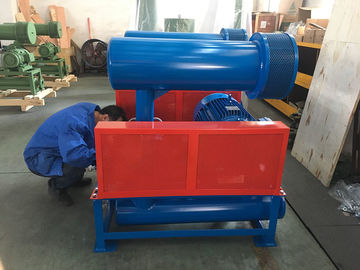

DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA

DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA

    • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA
    • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA
    • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA
    • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA
    • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA
  • DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BKW6005

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 100 SETS per month
    Contact Now
    Detailed Product Description
    Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
    Air Capacity: 3.62-11.15m3/min Discharge Differential Pressure: 60-100KPA
    Motor Power: 11-30W Discharge Bore: DN80(3”)
    Driven Type: Motor Driven, Connected By Belt And Pulley Impeller And Shaft: Cast As An Integral Part, Three Lobes



    DN80 Roots Rotary Lobe Blower, maxiumum pressure 100KPA, aeration air blower



    The three-lobe Roots type rotary blower type BKW of is a product which has been developed by adopting innovated techniques, based on the manufacturing

    experience in the roots type rotary blowers for many years.






    Specifications


    Model

    BKW6005

    Air capacity

    3.62-11.15m3/min

    Discharge differential pressure

    60-100KPA

    Rotary speed

    850-1800rpm

    Cooling water volume

    5 l/min

    Motor type

    11-30KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.
    Vertical type available for your option

    N.W. of blower without motor

    256kg

    Packing size Approx.

    Packing case for blower: 1.5*0.95*0.9m (L*W*H)

    Packing case for blower accessories: 1.31*0.6*0.5m (L*W*H)





    Features

    1. Based on the BK series' design, by improving end-plated design water cooling system is installed for achieving higher pressure

    2. No high temperature will damage the bearing so the bearing's service life is prolonged.






    Parameter sheet



    Model Speed Inlet capacity (m3/min)and shaft power (KW) Cooling
    Water
    0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2    0.9kgf/cm2 1.0kgf/cm2
    6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
    0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min
    BKW6005
    Port Dia: DN80(3")
    850 3.84 7.28 3.62 8.20             5
    1000 5.00 8.56 4.77 9.65 4.58 10.94 4.38 12.24
    1150 6.15 9.84 5.93 11.09 5.74 12.59 5.54 14.08
    1250 6.92 10.70 6.70 12.06 6.50 13.68 6.30 15.30 6.14 16.92
    1400 8.07 11.98 7.85 13.51 7.66 15.32 7.46 17.14 7.29 18.95
    1500 8.84 12.84 8.62 14.47 8.43 16.42 8.23 18.36 8.06 20.31
    1650 9.99 14.12 9.77 15.92 9.58 18.06 9.38 20.20 9.21 22.34
    1800 11.15 15.41 10.92 17.36 10.73 19.70 10.53 22.04 10.36 24.37






    Structure of blower main body

    DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA




    Flow direction of cooling water

    DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA





    Assembling drawing of blower package



    DN80 Three - Lobe Roots Type Rotary Lobe Blowers Maxiumum Pressure 100KPA




    Standard supply of scope

    1. shaft blower

    2. inlet silencer (with air filter)

    3. outlet silencer

    4. relieve valve

    5. check valve

    6. flexible joint

    7. pressure gauge

    8. blower pulley and motor pulley

    9. V-belt

    10. belt cover
    11. blower base

    12. electric motor
