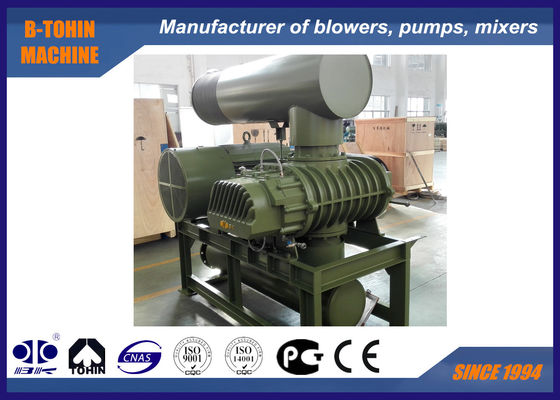

DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower

DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower

  • DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower
  • DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower
DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW9030
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 50 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
Air Capacity: 40.22-111.29m3/min Discharge Differential Pressure: 60-80KPA
Motor Power: 75-200W Discharge Bore: DN300(12”)
Driven Type: Motor Driven, Connected By Belt And Pulley Installation Type: Horizontal, Vertical Available Also
High Light:

high pressure blower

,

rotary positive blower


DN300 Roots Rotary Lobe Blower,  6000m3/hour, 80KPA lobe air blower


Applications
1. For Cement industry: cement conveying blower, ventilating blower, furnace blower, kiln blower, etc.
2. For Sewage Treatment System: aeration blower, back-washing blower, etc.
3. For Aquaculture: aeration increasing for fish-pond, shell-fish pond, shrimp-pond, etc.
4. For Pneumatic Conveying: convey powder materials, such as flour, cement, sand, grain, etc.
5. For Dust Collecting,dust cleaning ventilation in some factory, hospital,buildings, etc.
6. For Electric Power Plant: gas conveying, oxygen increasing, ventilating, dust cleaning, etc.




Specifications


Model

BKW9030

Air capacity

40.22-111.29m3/min

Discharge differential pressure

60-80KPA

Rotary speed

700-1500rpm

Cooling water volume

25 l/min

Motor type

75-200KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of blower without motor

1620kg

Packing size Approx.

2.67*1.85*2.5m (L*W*H)

 * stainless BX type also available



Features
1. positive displacement blower, air conveying is smooth, there is small flow rate changes along when pressure changes.
2. three lobes impeller making inlet and outlet pulsation quiet with low vibration.
3. special impeller of optimized curve enable the blower to have high efficiency and low energy consumption.
5. adopt SKF fluoro rubber oil seal and NSK bearings (standard), other famous brand bearings like SKF, FAG also available.



Parameter sheet


ModelSpeedInlet capacity (m3/min)and shaft power (KW)Cooling
Water
0.6kgf/cm20.7kgf/cm20.8kgf/cm2
6000mmH2O7000mmH2O8000mmH2O
0.06Mpa0.07Mpa0.08Mpa
rpmm3/minKWm3/minKWm3/minKWL/min

BKW9030
Port Dia:
DN300(12")

70041.7963.34 40.2273.63   25
85054.8276.91 53.2689.40
100067.8590.49 66.29105.18 64.90119.88
115080.88104.06 79.32120.96 77.93137.86
125089.57113.11 88.01131.48 86.62149.84
1400102.60126.68 101.04147.25 99.65167.83
1500111.29135.73 109.73157.77 108.34179.81





Structure of blower main body

DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower 0




Flow direction of cooling water

DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower 1




Assembling drawing of blower package

DN300 Roots Rotary Lobe Blower 6000m3/hour 80KPA lobe air blower 2

Standard supply of scope

1. shaft blower
2. inlet silencer (with air filter)
3. outlet silencer
4. relieve valve
5. check valve
6. flexible joint
7. pressure gauge
8. blower pulley and motor pulley
9. V-belt
10. belt cover
11. public base
12. motor
