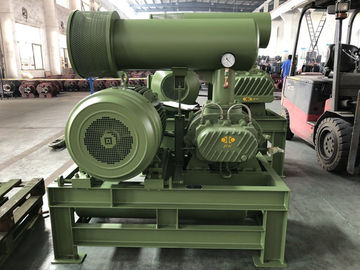

High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy

High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy

  • High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy
  • High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy
  • High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy
  • High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy
High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BKW7011
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 100 SETS per month
Contact Now
Detailed Product Description
Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type. Lobe Rotary Blower
Air Capacity: 10.02-28.39m3/min Discharge Differential Pressure: 60-100KPA
Motor Power: 22-75W Discharge Bore: DN150(6”)
Driven Type: Motor Driven, Connected By Belt And Pulley Bearing: NSK, SKF, FAG
Rotor Type: Intergral Impeller And Shaft, QT500 Gear Type: Helical Gear Of High Precision
High Light:

high pressure blower

,

rotary lobe blower



 High Pressure Roots Rotary Lobe Blower, 100KPA , 1500m3/min air compressor



The Roots Rotary Lobe blower BKW of is a product which has been developed by adopting advanced techniques, based on many years' manufacturing experience in the roots type rotary blowers of B-Tohin.




Specifications


Model

BKW7011

Air capacity

10.02-28.39m3/min

Discharge differential pressure

60-100KPA

Rotary speed

700-1500rpm

Cooling water volume

10 l/min

Motor type

22-75KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of blower without motor

520kg

Packing size Approx.

1.8*1.2*2m (L*W*H)





Features

1. Fast start,

2. Less power consumption,

3. Low operation and maintenance costs

4. High efficiency




Applications

Widely used in Power, petroleum, chemical, fertilizer, steel, metallurgy, oxygen producing, cement, textile,

food, paper making, dust-cleaning, aquatic farming, sewage treatment, pneumatic conveying etc.




Parameter sheet



Model Speed Inlet capacity (m3/min)and shaft power (KW)
0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2    0.9kgf/cm2 1.0kgf/cm2
6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW

BKW7011
Port Dia:

DN150

(6")

700 10.45  17.83  10.02  19.00
850 13.81  21.65  13.39  23.07  13.01 26.28 12.65 29.64 12.29 32.85
1000 17.18  25.47  16.75  27.14  16.37 30.92 16.01 34.87 15.65 38.65
1150 20.54  29.30  20.11  31.21  19.73 35.56 19.37 40.10 19.02 44.45
1250 22.78  31.84  22.36  33.92  21.98 38.65 21.62 43.58 21.26 48.31
1400 26.15  35.66  25.72  37.99  25.34 43.29 24.98 48.81 24.62 54.11
1500 28.39  38.21  27.96  40.70  27.58 46.38 27.22 52.30 26.86 57.97
Discharge bore size:  DN150 (6")     Cooling water: 10 l/min






Structure of blower main body

High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy 0




Flow direction of cooling water

High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy 1





Assembling drawing of blower package



High Pressure Roots Rotary Lobe Blower100KPA 1500m3/min for Chemical , Metallurgy 2




Standard supply of scope

1. shaft blower

2. inlet silencer (with air filter)

3. outlet silencer

4. relieve valve

5. check valve

6. flexible joint

7. pressure gauge

8. blower pulley and motor pulley

9. V-belt

10. belt cover
11. public base

12. motor






Optional accessories



1. elbow pipe

2. reducer

3. acoustic enclosure

4. control cabinet

5. auto-start mechanical valve
