HC-601S Air Rotary Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min

HC-601S Air Rotary Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min

  • HC-601S Air Rotary  Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min
  • HC-601S Air Rotary  Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min
HC-601S Air Rotary  Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min
Product Details:
Place of Origin: China
Brand Name: TOHIN
Certification: ISO9001/ISO14001
Model Number: HC-601S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5-20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 1000 SETS per month
Contact Now
Detailed Product Description
Air Capacity: 1.90-1.71m3/min Discharge Differential Pressure: 10-50KPA
Motor Power: 4KW Discharge Bore: DN50(2”)
Main Materials: HT200 Cast Iron Key Technology: Design From Tohin Shoji Co., Ltd.
High Light:

rotary positive displacement blower

,

Aeration blower

HC-601S Rotary Air Blower, air rotary blower, 4kW, aeration blower






About HC


HC blower is originated in Japan (Tohin Shoji Co., Ltd.,  more than 10 million sets of HC blower have been manufactured. B-Tohin has been in this blower industry since its establishment in 1994 by advanced technology and equipment from Japan. And after more than 20 year's marketing, this kind blower is testified as a product of stable and reliable performance.

.



Specifications



Air capacity

2.41m3/min

2.34m3/min

2.29m3/min

2.24m3/min

2.18m3/min

Discharge differential pressure

10KPA

20 KPA

30KPA

40 KPA

50KPA

Rotary speed

540rpm

Motor type

4KW

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

N.W. of blower package

200kg

Packing size Approx.

1.37*0.63*1.12m (length*width*height)






Applications

  • Wastewater aeration
  • Mixing and aerating of hospital and laboratory waste products
  • Conveying papers in offset printing operations
  • Agitation and aeration for plating tanks and waste water
  • Air supplier for plastic welding and blowing
  • For mist spray of burner and in glass industry and others
  • new rural construction small sewage treatment project




Features

  • Compact, low noise and economical energy consumption. (It adopts the principle of air compressed by revolving movement. Therefore, although compact, the rotary  blowers display their powerful discharged capacity, low noise, litter energy consumption)



  • Stable operation, simple installation. (In the case of small types, the blower can be conveniently installed and mere vibration produced if placed correctly, not requiring any other vibration-proof device.)



  • Resisting load changes, securing fixed air flow rate (For instance, if a rotary blower is used for sanitary treatment in the aeration tank, almost no air flow rate is decreased even if load becomes large due to the change in the pressure inside tank.)



  • Air chamber equipped for dispersing air smoothly. (All models are provided with an air chamber, resulting in being free from air pulsation and air dispersed smoothly.)



  • Superior material, ingenious structure designed in Japan, remarkable



  • performance (All parts of the blowers are made of qualified material and are fine designed and manufactured. It is durable in use and free of trouble and deterioration of performance after a long time use.)



  • Simple maintenance, rare malfunctions, long using life (The low speed of blower ensures small abrasion and long life.)




Working Principle



The blower is so designed and constructed that air is sucked, compressed and discharged  repeatedly while vanes protruding from the grooves of rotor are coming in and out by revolution of a rotor (rotating body)   set eccentrically inside the cylinder diameter. A minimum required quantity of oil is dropped to an oil dropping nozzle (imported from Japan), then dropped into the cylinder always while operating in order to make lubrication for the purpose of preventing heat and noise from generating. In the same time, circumfluence of air in cylinder is avoided.






Standard supply of scope

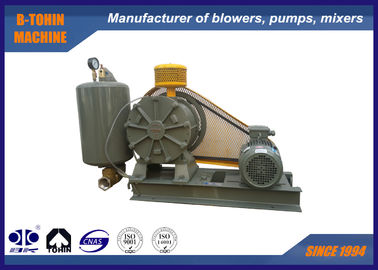

HC Rotary blower's structure is exquisite. It mainly consists of air chamber, electric motor, air filter, blower body, base (and oil tank) and oil dropping nozzle.



HC-601S Air Rotary  Blower 4kW , Aeration blower 10-50KPA 1.90-1.71m3/min 0
