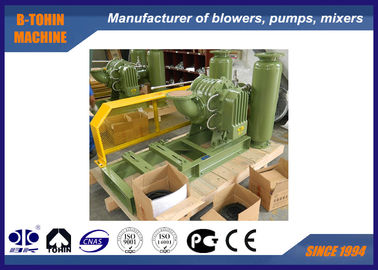

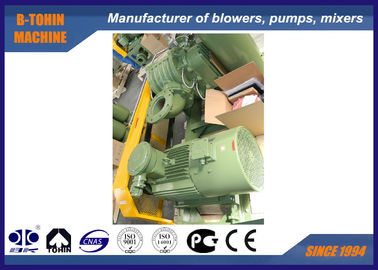

Roots Rotary lobe blower for Biogas , waste and flammable gas

Roots Rotary lobe blower for Biogas , waste and flammable gas

  • Roots Rotary lobe blower for Biogas , waste and flammable gas
Roots Rotary lobe blower for Biogas , waste and flammable gas
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: YU-EG200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Supply Ability: 20 SETS per month
Contact Now
Detailed Product Description
Capacity: 20.64-45.47m3/min Discharge Differential Pressure: 10-70KPA
Bore Size: DN200(8”) Cooling Type: Water
Connection Type: Belt Driven Belt And Pulley: Biogas, Waste Gas, Explosive Medium Conveying
High Light:

natural gas blower

,

Roots Rotary Lobe Blower



Rotary Biogas Blower,  waste and flammable gas blower, roots type gas blower





About YU-EG



Since established, B-Tohin has imported advanced technology and equipment, and developed new products constantly. Based on many years' experience in roots blower industry, B-Tohin developed a new product:  YU-EG Roots blower,  which has anti-corrosive coating PTFE on its inside over-current parts. It is applicable to deliver special gas, such as bio gas, acid gas, alkali gas and other waste gas.





Specifications



Model

YU-EG200

Air capacity

20.64-45.47m3/min

Discharge differential pressure

10-70KPA

Rotary speed

850-1400rpm

Cooling water volume

20 l/min

Motor type

15-75KW

380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

850kg

Packing size Approx.

2.15*1.6*1.7m (length*width*height)







Parameter sheet



Model

Port Dia

 (mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

water
(l/min)

Speed
rpm
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
m3/min KW m3/min KW m3/min KW m3/min KW

YU-EG

200

200(8") 850 26.13  10.03  24.55  14.96  23.35  19.58  22.33  22.19  20
1000 31.40  11.81  29.82  17.60  28.63  23.04  27.61  26.11
1150 36.68  13.58  35.10  20.24  33.90  26.50  32.88  30.03
1250 40.20  14.76  38.61  22.00  37.42  28.80  36.40  32.64
1400 45.47  16.53  43.89  24.63  42.69  32.26  41.67  36.55



Model

Port Dia

 (mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

 water
(l/min)

Speed
rpm
0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
m3/min KW m3/min KW m3/min KW m3/min KW

YU-EG

200

200(8") 850 21.45  27.25  20.64  32.31          20
1000 26.73  32.06  25.92  38.01  25.18  43.96
1150 32.00  36.87  31.19  43.71  30.45  50.55
1250 35.52  40.07  34.71  47.51  33.97  54.94
1400 40.79  44.88  39.98  53.21  39.25  61.54





Materials list



Roots Rotary lobe blower for Biogas , waste and flammable gas 0



No.

Part Name

Qty.

Materials



No.

Part Name

Qty.

Materials

1

Cylinder

1

HT200



17

Dowel pin hole

4



2

Drive end-plate

1

HT200



18

Gear end-plate

1

HT200

3

Cooling system







19

Grease thrower

2

45#

4

Grease nipple

4

copper



20

Round nut

2

45#

5

Gas seal

8

PTFE



21

Oil seal

2

FPM

6

Oil seal

4

FPM



22

O-ring

2

FPM

7

Drive impeller

1

QT500



23

Internal bevel gear

2

20CrMnTi

8

O-ring

8

FPM



24

Clamp nut

2

45#

9

Oil seal

1

FPM



25

Right collar

2

45#

10

Bearing

2

GCr15



26

Oil tank cover

1

HT200

11

Key

1

45#



27

Oil level gauge

1

resin

12

Drive impeller cover

1

45#



28

Butterfly spring

2

65Mn

13

Jump Ring

2

65Mn



29

Stop washer

2

Q235

14

Driven impeller



QT500



30

Magnetism plug

1



15

Driven impeller cover

1

45#



31

Bearing

2

GCr15

16

O-ring

2

FPM



32

Shaft sleeve

4

45#





Assembling drawing of blower package

Roots Rotary lobe blower for Biogas , waste and flammable gas 1







Standard supply of scope



1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. stainless steel inlet silencer(with filter)

5. stainless steel discharge silencer

6. public base (with belt cover)

7. stainless steel flexible joint and shock pad

8. pulley

9. pressure meter

10. belt

11. bolts and nuts and other connection parts

12. motor
