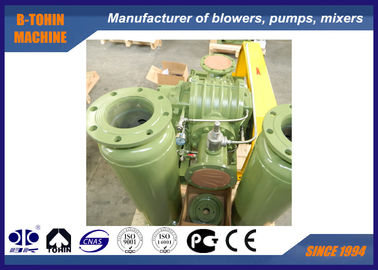

Rotary Biogas Blower, waste and flammable gas blower, roots type gas blower
About YU-EG
Since established, B-Tohin has imported advanced technology and equipment, and developed new products constantly. Based on many years' experience in roots blower industry, B-Tohin developed a new product: YU-EG Roots blower, which has anti-corrosive coating PTFE on its inside over-current parts. It is applicable to deliver special gas, such as bio gas, acid gas, alkali gas and other waste gas.
Specifications
|
Model |
YU-EG200 |
|
Air capacity |
20.64-45.47m3/min |
|
Discharge differential pressure |
10-70KPA |
|
Rotary speed |
850-1400rpm |
|
Cooling water volume |
20 l/min |
|
Motor type |
15-75KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
850kg |
|
Packing size Approx. |
2.15*1.6*1.7m (length*width*height) |
Parameter sheet
| Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
| Speed rpm |
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | ||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
|
YU-EG 200 |
200(8") | 850 | 26.13 | 10.03 | 24.55 | 14.96 | 23.35 | 19.58 | 22.33 | 22.19 | 20 |
| 1000 | 31.40 | 11.81 | 29.82 | 17.60 | 28.63 | 23.04 | 27.61 | 26.11 | |||
| 1150 | 36.68 | 13.58 | 35.10 | 20.24 | 33.90 | 26.50 | 32.88 | 30.03 | |||
| 1250 | 40.20 | 14.76 | 38.61 | 22.00 | 37.42 | 28.80 | 36.40 | 32.64 | |||
| 1400 | 45.47 | 16.53 | 43.89 | 24.63 | 42.69 | 32.26 | 41.67 | 36.55 | |||
| Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
| Speed rpm |
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
| 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | ||||||||
| 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | ||||||||
| m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
|
YU-EG 200 |
200(8") | 850 | 21.45 | 27.25 | 20.64 | 32.31 | 20 | ||||
| 1000 | 26.73 | 32.06 | 25.92 | 38.01 | 25.18 | 43.96 | |||||
| 1150 | 32.00 | 36.87 | 31.19 | 43.71 | 30.45 | 50.55 | |||||
| 1250 | 35.52 | 40.07 | 34.71 | 47.51 | 33.97 | 54.94 | |||||
| 1400 | 40.79 | 44.88 | 39.98 | 53.21 | 39.25 | 61.54 | |||||
Materials list
|
No. |
Part Name |
Qty. |
Materials |
|
No. |
Part Name |
Qty. |
Materials |
|
1 |
Cylinder |
1 |
HT200 |
|
17 |
Dowel pin hole |
4 |
|
|
2 |
Drive end-plate |
1 |
HT200 |
|
18 |
Gear end-plate |
1 |
HT200 |
|
3 |
Cooling system |
|
|
|
19 |
Grease thrower |
2 |
45# |
|
4 |
Grease nipple |
4 |
copper |
|
20 |
Round nut |
2 |
45# |
|
5 |
Gas seal |
8 |
PTFE |
|
21 |
Oil seal |
2 |
FPM |
|
6 |
Oil seal |
4 |
FPM |
|
22 |
O-ring |
2 |
FPM |
|
7 |
Drive impeller |
1 |
QT500 |
|
23 |
Internal bevel gear |
2 |
20CrMnTi |
|
8 |
O-ring |
8 |
FPM |
|
24 |
Clamp nut |
2 |
45# |
|
9 |
Oil seal |
1 |
FPM |
|
25 |
Right collar |
2 |
45# |
|
10 |
Bearing |
2 |
GCr15 |
|
26 |
Oil tank cover |
1 |
HT200 |
|
11 |
Key |
1 |
45# |
|
27 |
Oil level gauge |
1 |
resin |
|
12 |
Drive impeller cover |
1 |
45# |
|
28 |
Butterfly spring |
2 |
65Mn |
|
13 |
Jump Ring |
2 |
65Mn |
|
29 |
Stop washer |
2 |
Q235 |
|
14 |
Driven impeller |
|
QT500 |
|
30 |
Magnetism plug |
1 |
|
|
15 |
Driven impeller cover |
1 |
45# |
|
31 |
Bearing |
2 |
GCr15 |
|
16 |
O-ring |
2 |
FPM |
|
32 |
Shaft sleeve |
4 |
45# |
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. vacuum pressure relieve valve
3. check valve
4. stainless steel inlet silencer(with filter)
5. stainless steel discharge silencer
6. public base (with belt cover)
7. stainless steel flexible joint and shock pad
8. pulley
9. pressure meter
10. belt
11. bolts and nuts and other connection parts
