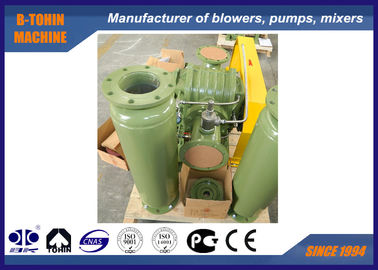

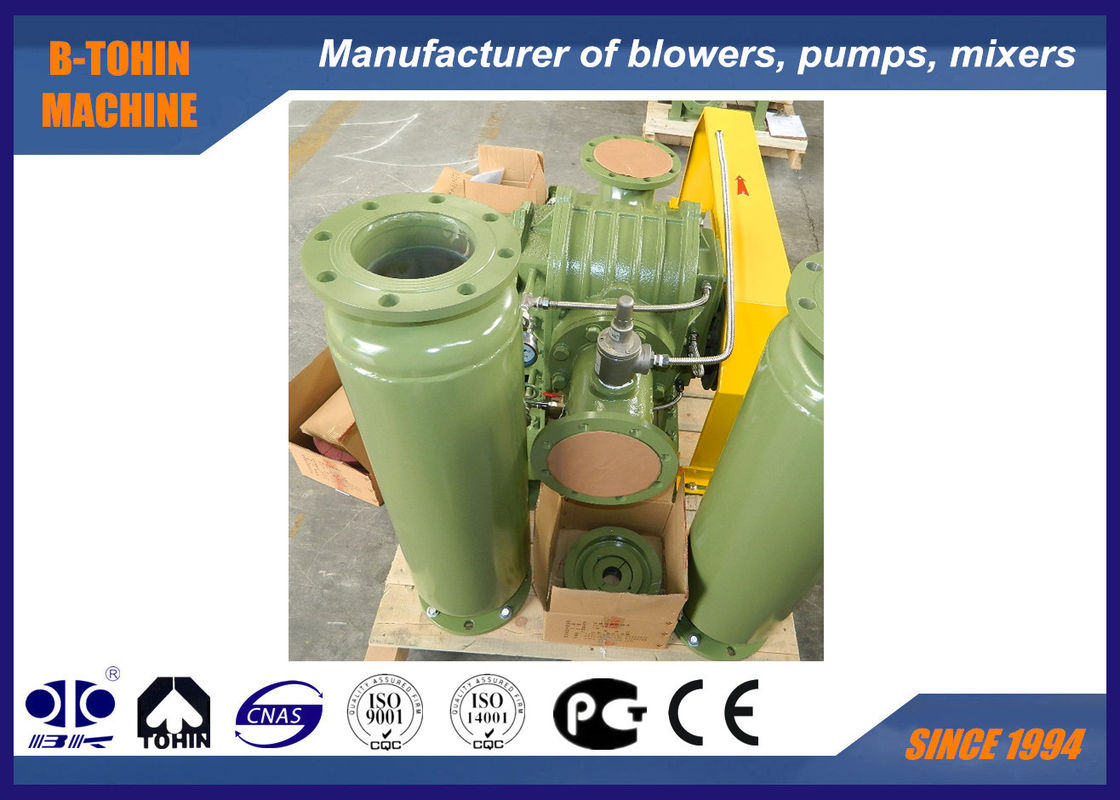

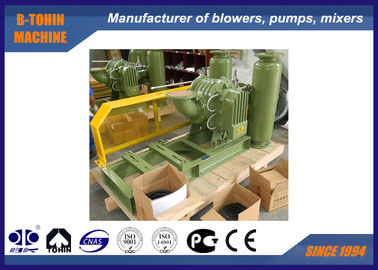

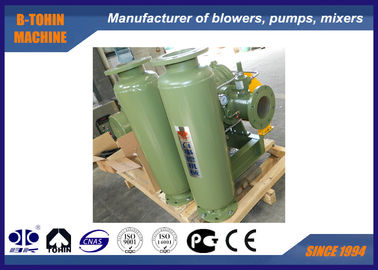

10-70KPA DN300 Convey Special gas of acid,alkali, corrosive Roots Blower

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	YU-EG300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard wooden case
Delivery Time:	15 to 30 working days, depends on order amount and specification
Supply Ability:	20 SETS per month

Contact Now

Detailed Product Description

Capacity:	57.41-112.41m³/min	Discharge Differential Pressure:	10-70KPA
Bore Size:	DN300(12”)	Cooling Type:	Water
Connection Type:	Belt Driven	Belt And Pulley:	Biogas, Waste Gas, Explosive Medium Conveying
Cooling Water:	30 L/min	Speed:	800-1250rpm
Shaft Power:	23.03-147.39 KW

Roots type Biogas Blower DN300 anti-corrosive, explosion-proof

About YU-EG

A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.

Specifications

Model	YU-EG300
Air capacity	57.41-112.41m³/min
Discharge differential pressure	10-70KPA
Rotary speed	800-1250rpm
Cooling water volume	30 L/min
Motor type	22-200KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: vertical type
N.W. of blower without motor	2020kg
Packing size Approx.	3.731.0071.885m (lengthwidthheight)
Features	1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance 2. Equipped with multiply seal to prevent leakage 3. Sprayed with special antisepsis material on cylinder and cover.

Parameter sheet

Model	Port	Inlet capacity (m3/min)and shaft power (kW) under various pressure									Cooling water
		Speed	0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	(l/min)
YU-EG300	300(12")	800	69.07	22.03	65.69	36.10	63.09	48.22	60.97	55.22	30
		900	78.70	25.91	75.33	40.61	72.73	54.25	70.61	62.13
		1000	88.33	28.79	84.96	45.12	82.36	60.27	80.24	69.03
		1100	97.96	31.67	94.59	49.63	91.99	66.30	89.87	75.93
		1250	112.41	35.99	109.04	56.40	106.44	75.34	104.32	86.29

Model	Port	Inlet capacity (m3/min)and shaft power (kW) under various pressure									Cooling water
		Speed	0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
			m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	(l/min)
YU-EG300	300(12")	800	59.05	68.26	57.41	81.29					30
		900	68.68	76.79	67.04	91.45
		1000	78.31	85.32	76.68	101.62	75.04	117.91
		1100	87.95	93.86	86.31	111.78	84.67	129.70
		1250	102.39	106.65	100.76	127.02	99.12	147.39

Structure of blower main body

10-70KPA DN300 Convey Special gas of acid,alkali, corrosive Roots Blower 0

Assembling drawing of blower package

10-70KPA DN300 Convey Special gas of acid,alkali, corrosive Roots Blower 1

Standard supply of scope

1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor

FAQ

1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT30% as the advanced payment and TT 70% after inspection before shipping.
2.100% irrevocable L/C at stght.
