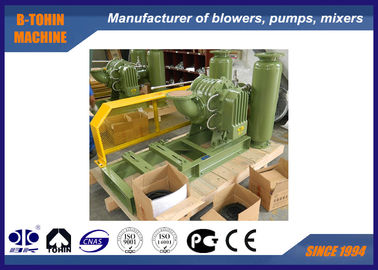

Roots Lobe Biogas Blower, waste and flammable gas blower, air capacity 1200m3/h
About YU-EG
Since established, B-Tohin has imported advanced technology and equipment and developed new products constantly. YU-EG type blower is a new kind product which has the casing and rotors coating with special anti-corrosive materials. It is applicable to the delivery of special gas, especial for conveying bio gas.
Specifications
Model |
YU-EG150 |
Air capacity |
13.81-29.26m3/min |
Discharge differential pressure |
10-70KPA |
Rotary speed |
850-1400rpm |
Cooling water volume |
15 l/min |
Motor type |
5.5-45KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Installation type |
Standard: vertical type |
N.W. of blower without motor |
530kg |
Packing size Approx. |
2.0*1.4*1.65m (length*width*height) |
Parameter sheet
Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
Speed rpm |
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | ||||||||
0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | ||||||||
m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
YU-EG 150 |
150(6") | 850 | 16.93 | 4.57 | 16.03 | 8.01 | 15.34 | 10.90 | 14.78 | 14.41 | 15 |
1000 | 20.29 | 5.38 | 19.40 | 9.42 | 18.70 | 12.83 | 18.14 | 16.95 | |||
1150 | 23.66 | 6.19 | 22.76 | 10.84 | 22.07 | 14.75 | 21.50 | 19.50 | |||
1250 | 25.90 | 6.73 | 25.00 | 11.78 | 24.31 | 16.03 | 23.75 | 21.19 | |||
1400 | 29.26 | 7.53 | 28.37 | 13.19 | 27.67 | 17.96 | 27.11 | 23.73 |
Model |
Port Dia (mm) |
Inlet capacity (m3/min)and shaft power (kW) under various pressure |
Cooling water |
||||||||
Speed rpm |
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | ||||||||
0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | ||||||||
m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||||
YU-EG 150 |
150(6") | 850 | 14.26 | 18.14 | 13.81 | 21.65 | 15 | ||||
1000 | 17.63 | 21.35 | 17.18 | 25.47 | 16.75 | 27.14 | |||||
1150 | 20.99 | 24.55 | 20.54 | 29.30 | 20.11 | 31.21 | |||||
1250 | 23.23 | 26.68 | 22.78 | 31.84 | 22.36 | 33.92 | |||||
1400 | 26.59 | 29.88 | 26.15 | 35.66 | 25.72 | 37.99 |
Materials list
No. |
Part Name |
Qty. |
Materials |
|
No. |
Part Name |
Qty. |
Materials |
1 |
Cylinder |
1 |
HT200 |
|
17 |
Dowel pin hole |
4 |
|
2 |
Drive end-plate |
1 |
HT200 |
|
18 |
Gear end-plate |
1 |
HT200 |
3 |
Cooling system |
|
|
|
19 |
Grease thrower |
2 |
45# |
4 |
Grease nipple |
4 |
copper |
|
20 |
Round nut |
2 |
45# |
5 |
Gas seal |
8 |
PTFE |
|
21 |
Oil seal |
2 |
FPM |
6 |
Oil seal |
4 |
FPM |
|
22 |
O-ring |
2 |
FPM |
7 |
Drive impeller |
1 |
QT500 |
|
23 |
Internal bevel gear |
2 |
20CrMnTi |
8 |
O-ring |
8 |
FPM |
|
24 |
Clamp nut |
2 |
45# |
9 |
Oil seal |
1 |
FPM |
|
25 |
Right collar |
2 |
45# |
10 |
Bearing |
2 |
GCr15 |
|
26 |
Oil tank cover |
1 |
HT200 |
11 |
Key |
1 |
45# |
|
27 |
Oil level gauge |
1 |
resin |
12 |
Drive impeller cover |
1 |
45# |
|
28 |
Butterfly spring |
2 |
65Mn |
13 |
Jump Ring |
2 |
65Mn |
|
29 |
Stop washer |
2 |
Q235 |
14 |
Driven impeller |
|
QT500 |
|
30 |
Magnetism plug |
1 |
|
15 |
Driven impeller cover |
1 |
45# |
|
31 |
Bearing |
2 |
GCr15 |
16 |
O-ring |
2 |
FPM |
|
32 |
Shaft sleeve |
4 |
45# |
Assembling drawing of blower package
Standard supply of scope
1. shaft blower
2. vacuum pressure relieve valve
3. check valve
4. inlet silencer(with filter): stainless steel
5. discharge silencer: stainless steel
6. public base (with belt cover)
7. stainless steel flexible joint and shock pad
8. pulley
9. pressure gauge
10. belt
11. bolts and nuts and other connection parts
12. motor
