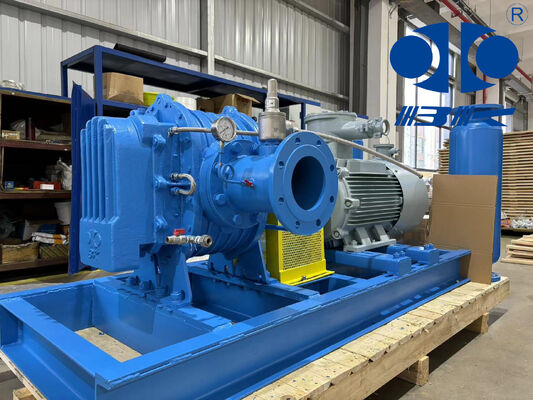

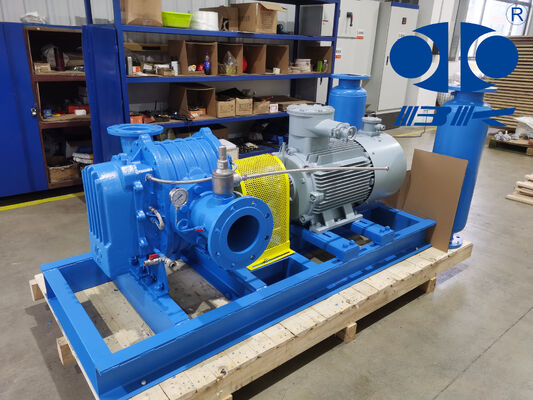

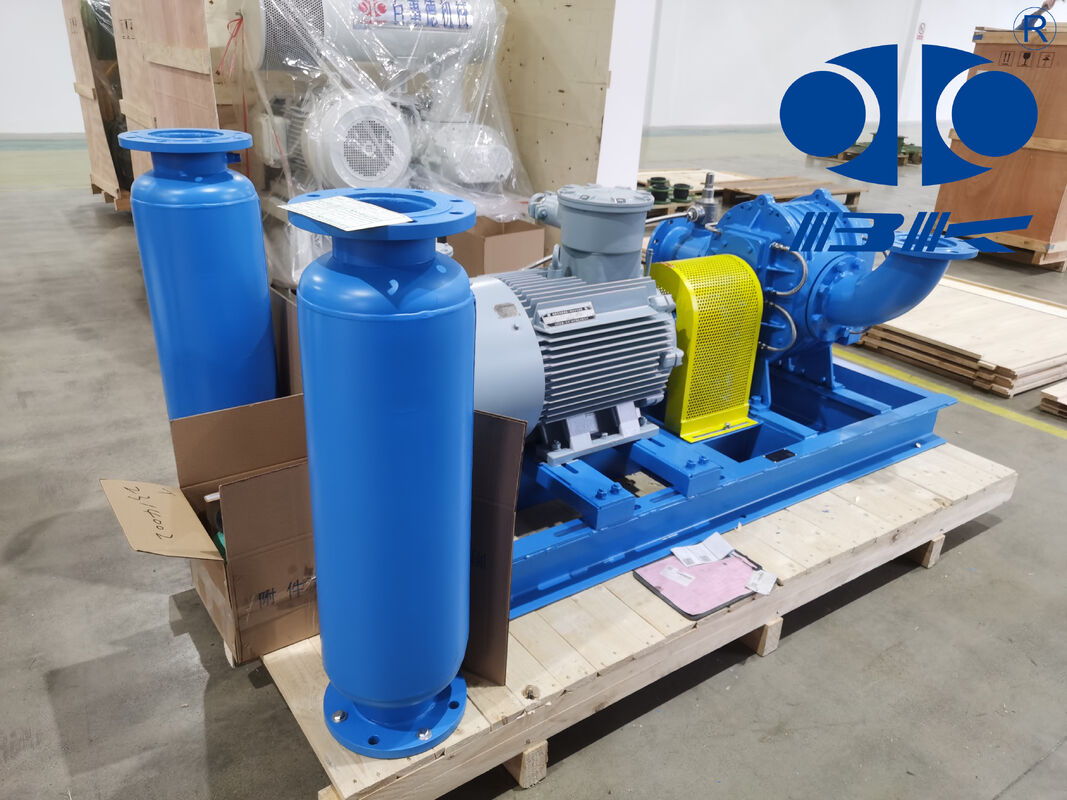

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	YU-EG40

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard wooden case
Delivery Time:	15 to 30 working days, depends on order amount and specification
Supply Ability:	20 SETS per month

Contact Now

Detailed Product Description

Capacity:	0.42-1.65m³/min	Discharge Differential Pressure:	10-70KPA
Bore Size:	DN40(1.5”)	Cooling Type:	Water
Connection Type:	Belt Driven	Belt And Pulley:	Biogas, Waste Gas, Explosive Medium Conveying
Shaft Power:	0.82-2.42KW	Speed:	1500-2150rpm
Cooling Water:	3L/min	Applications:	Biogas And Waste Gas
Material:	Anti-orrosion

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration

About YU-EG

Since established, B-Tohin has imported advanced technology and equipment and developed new products constantly. YU-EG type blower is a new kind product which has the casing and rotors coating with special anti-corrosive materials. It is applicable to the delivery of special gas, especial for conveying bio gas.

Main Characteristics

The blower can be used for conveying acid,alkali,corrosion and other special gas.
Water cooling adopted for longer service life of the bearing.
The inner part of the blower and the surface of the impellers are sprayed with special materials of good lubrication and anti-adhesion.

Main Advantages

Compacting structure,inlet and outlet same construction,multiform fitting ways.
Integral structure of impeller and shaft ,which can avoid the defection of separate type.
Water cooling structure which can improve the work condition of bearing and prolong the using life.
Spraying special material(PTFE) with well corrosion resistance and stick on the impeller and the parts contacting the fluid.
Blower can convey the special gas of acid ,alkali, corrosive,etc.

Specifications

Model	YU-EG40
Air capacity	0.42-1.65m³/min
Discharge differential pressure	10-70KPA
Rotary speed	1500-2150rpm
Cooling water volume	3 l/min
Motor type	1.5-4KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor
Installation type	Standard: vertical type
N.W. of blower without motor	75kg

Parameter sheet

Port Dia

Speed

(rmp)

Pressure

(kgf/cm²)

Inlet Airflow (m³/min)

Shaft Power

Cooling Water

(L/min)

YU-EG40

40(1.5")

1500-2150

0.1-0.7

0.42-1.65

0.82-2.42

Materials list

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration

No.	Name	Quantity	Material	No.	Name	Quantity	Material
1	Cylinder	1	HT200	17	Locating pin	4
2	Driven end-plate	1	HT200	18	Gear end-plate	1	HT200
3	Cooling system			19	Grease thrower	2	45#
4	Grease nipple	4	Copper	20	Round nut	2	45#
5	Air seal	8	PTFE	21	Oil seal	2	FPM
6	Oil seal	4	FPM	22	O-ring	2	FPM
7	Driven impeller	1	QT500	23	Internal bevel gear	2	20CrMnTi
8	O-ring	8	FPM	24	Clamp nut	2	45#
9	Oil seal	1	FPM	25	Right collar	2	45#
10	Bearing	2	GCr15	26	Oil cover	1	HT200
11	Key	1	45#	27	Oil level guage	1	Resin
12	Driven impeller cover	1	45#	28	Butterfly spring	2	65Mn
13	Jump Ring	2	65Mn	29	Stop washer	2	Q235
14	Driven impeller	1	QT500	30	Magnetism plug	1
15	Driven impeller cover	1	45#	31	Bearing	2	GCr15
16	O-ring	2	FPM	32	Shaft sleeve	4	45#

Assembling drawing of blower package

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration Outline Dimension Sheet Unit:mm Type Motor power(kw) A B C D E F G H I J K L M N P R Foundation Bolts Weight (KG) YU-EG40 1.5～4 760 260 100 560 264 175 183 1080 18 164 100 300 95 700 18 62 4-M12×600 75
