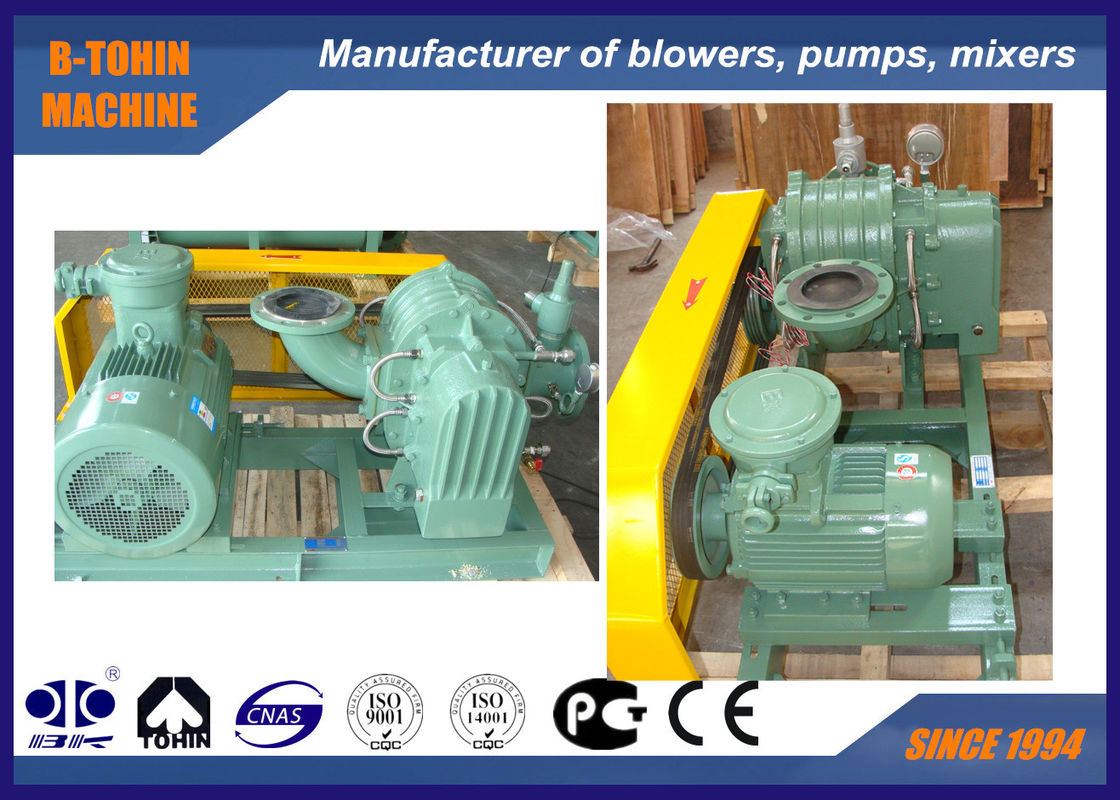

Explosion-Proof Biogas Blower , alkali and bio gas use roots Lobe blower

Explosion-Proof Biogas Blower , alkali and bio gas use roots Lobe blower

  • Explosion-Proof  Biogas Blower , alkali and bio gas use roots Lobe blower
Explosion-Proof  Biogas Blower , alkali and bio gas use roots Lobe blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001
Model Number: YU-EG100A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Supply Ability: 20 SETS per month
Contact Now
Detailed Product Description
Capacity: 6.72-15.73m3/min Discharge Differential Pressure: 10-80KPA
Bore Size: DN100(4”) Cooling Type: Water
Connection Type: Belt Driven Belt And Pulley: Biogas, Waste Gas, Explosive Medium Conveying
High Light:

landfill gas blower

,

natural gas blower





Lobe  Biogas Blower, alkali and bio gas use roots blower, explosion-proof type





Features



1. Compact structure, inlet and outlet same construction, various kinds of installation type

2. Impeller and shaft is cast as a whole part for smooth operation.

3. Water cooling structure is adopted for protecting bearing from over-heating.

4. All flow passage parts are sprayed with special coating (PTFE) , featured of well corrosion resistance.

5. Blower is designed for the application of special medium of acid, alkali and other corrosive gas.





Specifications



Model

YU-EG100A

Air capacity

6.72-15.73m3/min

Discharge differential pressure

10-80KPA

Rotary speed

850-1400rpm

Cooling water volume

10 l/min

Motor type

4-30KW

380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

435kg

Packing size Approx.

1.9*1.2*1.35m (length*width*height)





Parameter sheet



Model

Port Dia

 (mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

water
(l/min)

Speed
rpm
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
m3/min KW m3/min KW m3/min KW m3/min KW
YU-EG
100A
100(4") 850 9.01  2.58  8.42  4.55  7.98  6.11  7.61  8.02  10
1000 10.84  3.03  10.25  5.35  9.81  7.19  9.45  9.44
1150 12.67  3.49  12.08  6.15  11.64  8.27  11.28  10.85
1250 13.89  3.79  13.31  6.69  12.87  8.99  12.50  11.80
1400 15.73  4.25  15.14  7.49  14.70  10.07  14.33  13.21



Model

Port Dia

(mm)

Inlet capacity (m3/min)and shaft power (kW) under various pressure

Cooling

 water
(l/min)

Speed
rpm
0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
m3/min KW m3/min KW m3/min KW m3/min KW
YU-EG
100A
100(4") 850 7.28  10.16  7.00  12.07  6.72  13.98      10
1000 9.12  11.95  8.83  14.20  8.55  16.45  8.31  18.70
1150 10.95  13.75  10.67  16.33  10.39  18.92  10.14  21.51
1250 12.17  14.94  11.89  17.75  11.61  20.57  11.36  23.38
1400 14.00  16.73  13.72  19.88  13.44  23.03  13.20  26.18





Structure of blower main body



Explosion-Proof  Biogas Blower , alkali and bio gas use roots Lobe blower 0









Assembling drawing of blower package

Explosion-Proof  Biogas Blower , alkali and bio gas use roots Lobe blower 1







Standard supply of scope



1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor
