Corrosion Resistant Water Cooled Roots Blower Explosion Proof Biogas Blower for Special Gas Conveying

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	YU-EG125

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Export standard wooden case
Delivery Time:	15 to 30 working days, depends on order amount and specification
Supply Ability:	20 SETS per month

Contact Now

Detailed Product Description

Capacity:	7.96-18.78 M³/min	Discharge Differential Pressure:	10-80KPA
Bore Size:	DN125(5”)	Cooling Type:	Water
Connection Type:	Belt Driven	Belt And Pulley:	Biogas, Waste Gas, Explosive Medium Conveying
Speed:	1000-1650 Rpm	Shaft Power:	3.05-28.36 M³/min
Cooling Water:	12L/min	Motor Power:	11-22/30/37-45KW
Foubdation Bolts:	6-M12*220	Weight:	350kg
Highlight:	Corrosion Resistant Roots Blower , Roots Blower for Special Gas , Biogas Blower Corrosion Resistant

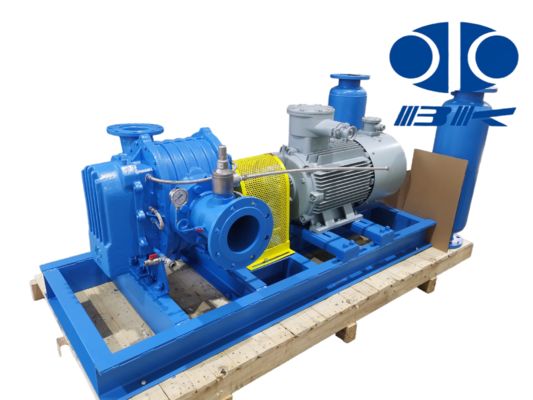

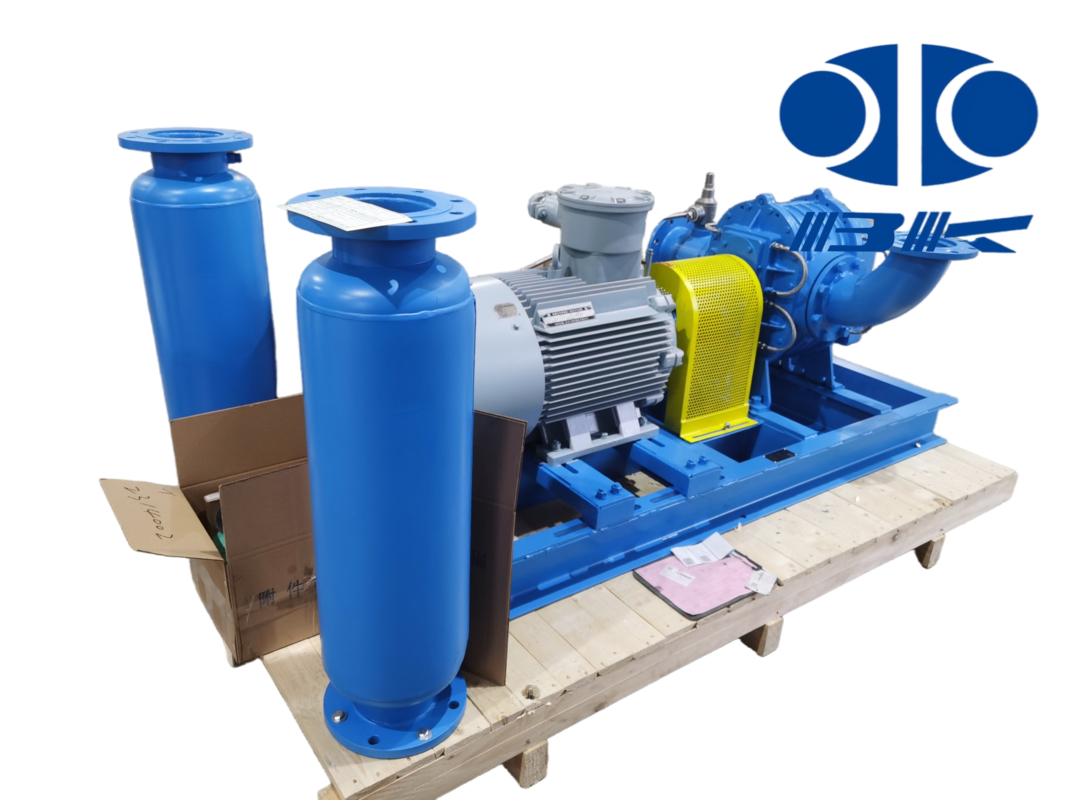

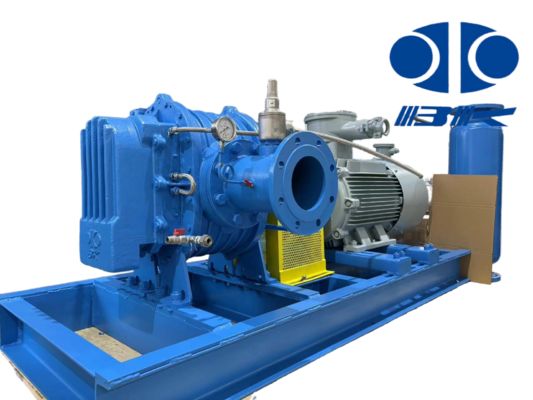

YU-EG125 Corrosion Resistant Roots Blower for Special Gas Applications

About YU-EG

The B-TOHIN YU-EG125 is a Roots blower designed for special gas conveying applications. Depending on the gas composition and operating conditions, it can be used in biogas handling and other suitable industrial gas transfer systems.

Key Features

Special gas conveying design
PTFE-coated internal surfaces
Water-cooled structure
Optional explosion-proof motor configuration, subject to model specifications
Suitable for selected corrosive and flammable gas applications

Applications

Biogas conveying
Industrial gas transfer
Selected corrosive gas handling

Specifications

Model	YU-EG125
Air capacity	7.96-18.78 m³/min
Discharge differential pressure	10-80KPA
Rotary speed	1000-1650 rpm
Cooling water volume	12 L/min
Motor type	11-22/30/37-45KW 380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor
Installation type	Standard: vertical type
N.W. of blower without motor	350kg

Parameter sheet

Model	Port Dia. (mm)	Speed	Inlet capacity (m3/min)and shaft power (KW)
			0.1kgf/cm2		0.2kgf/cm2		0.3kgf/cm2		0.4kgf/cm2		0.5kgf/cm2		0.6kgf/cm2		0.7kgf/cm2		0.8kgf/cm2
			1000mmH2O		2000mmH2O		3000mmH2O		4000mmH2O		5000mmH2O		6000mmH2O		7000mmH2O		8000mmH2O
			0.01Mpa		0.02Mpa		0.03Mpa		0.04Mpa		0.05Mpa		0.06Mpa		0.07Mpa		0.08Mpa
		rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
YU-EG125	125(5")	1000	10.78	3.05	10.13	5.39	9.64	7.24	9.22	9.11	8.87	11.29	8.53	13.46	8.23	15.11	7.96	12.19
		1150	12.62	3.51	11.98	6.20	11.49	8.33	11.07	10.48	10.71	12.98	10.38	15.48	10.07	17.38	9.80	19.77
		1250	13.85	3.82	13.21	6.74	12.72	9.05	12.30	11.39	11.94	14.11	11.61	16.82	11.30	18.89	11.03	21.49
		1400	15.7	4.28	15.06	7.55	14.57	10.14	14.15	12.76	13.79	15.80	13.46	18.84	13.15	21.16	12.88	24.07
		1500	16.93	4.58	16.29	8.08	15.80	10.86	15.38	13.67	15.02	16.93	14.69	20.19	14.38	22.67	14.11	25.79
		1650	18.78	5.04	18.14	8.89	17.65	11.95	17.23	15.04	16.87	18.62	16.54	22.21	16.23	24.94	15.96	28.36

Materials list

Corrosion Resistant Water Cooled Roots Blower Explosion Proof Biogas Blower for Special Gas Conveying

No.	Part Name	Qty.	Materials	No.	Part Name	Qty.	Materials
1	Cylinder	1	HT200	17	Dowel pin hole	4
2	Drive end-plate	1	HT200	18	Gear end-plate	1	HT200
3	Cooling system			19	Grease thrower	2	45#
4	Grease nipple	4	copper	20	Round nut	2	45#
5	Gas seal	8	PTFE	21	Oil seal	2	FPM
6	Oil seal	4	FPM	22	O-ring	2	FPM
7	Drive impeller	1	QT500	23	Internal bevel gear	2	20CrMnTi
8	O-ring	8	FPM	24	Clamp nut	2	45#
9	Oil seal	1	FPM	25	Right collar	2	45#
10	Bearing	2	GCr15	26	Oil tank cover	1	HT200
11	Key	1	45#	27	Oil level gauge	1	resin
12	Drive impeller cover	1	45#	28	Butterfly spring	2	65Mn
13	Jump Ring	2	65Mn	29	Stop washer	2	Q235
14	Driven impeller		QT500	30	Magnetism plug	1
15	Driven impeller cover	1	45#	31	Bearing	2	GCr15
16	O-ring	2	FPM	32	Shaft sleeve	4	45#

Assembling drawing of blower package

Corrosion Resistant Water Cooled Roots Blower Explosion Proof Biogas Blower for Special Gas Conveying Outline Dimension Sheet Unit:mm Type Motor power(kw) A B C D E F G H I J K L M N P R Foundation Bolts
4-M16×h Weight (KG) YU-EG40 1.5～4 760 260 100 560 264 175 183 1080 18 164 100 300 95 700 18 62 4-M12×600 75 YU-EG50 1.5～5.5 760 620 100 560 219 195 183 1225 18 244 100 380 105 815 18 62 4-M12×600 105 YU-EG65 2.2～7.5 910 322 145 620 484 188 227 1240 18 206 93 335 115 815 18 50 4-M12×160 220 11～15 331 460 YU-EG80 7.5～11 1150 424 150 850 582 240 259 1365 20 191 114 345 135 900 18 22 4-M12×220 290 15～18.5 351 505 YU-EG100 4～7.5 1020 322 145 730 561 221 260 1380 18 186 127 349 150 900 18 70 4-M12×220 255 11~15 347 510 YU-EG125 11～15 1260 424 150 960 694 278 297 1214 20 308 152 500 165 1000 18 67 4-M12×220 350 30 358 550 37～45 408 600 YU-EG150 11～22 1450 528 150 1150 937 325 358 1353 26 283 192 527 180 1000 24 60 4-M12×400 530 30 318 562 37～45 373 617 55～75 428 672 YU-EG200 11～90 1560 586 80 1400 1120 473 467 1353 26 460 345 857 190 1000 24 286 4-M16×400 850 YU-EG250 11~90 1830 602 150 1530 1240 574 516 1727 26 396 397 845 230 1000 38 243 4-M16×400 1200 110 1910 1610 411 861 132～160 514 963 YU-EG300 22～220 2000 655 150 1700 1390 734 598 1885 26 409 488 949 245 1200 38 290 4-M16×400 2020
