DN300 large capacity Roots negative pressure blower, small compact size, 69.85-105.14m3/min,-50KPA to -55KPA, 110-200KW

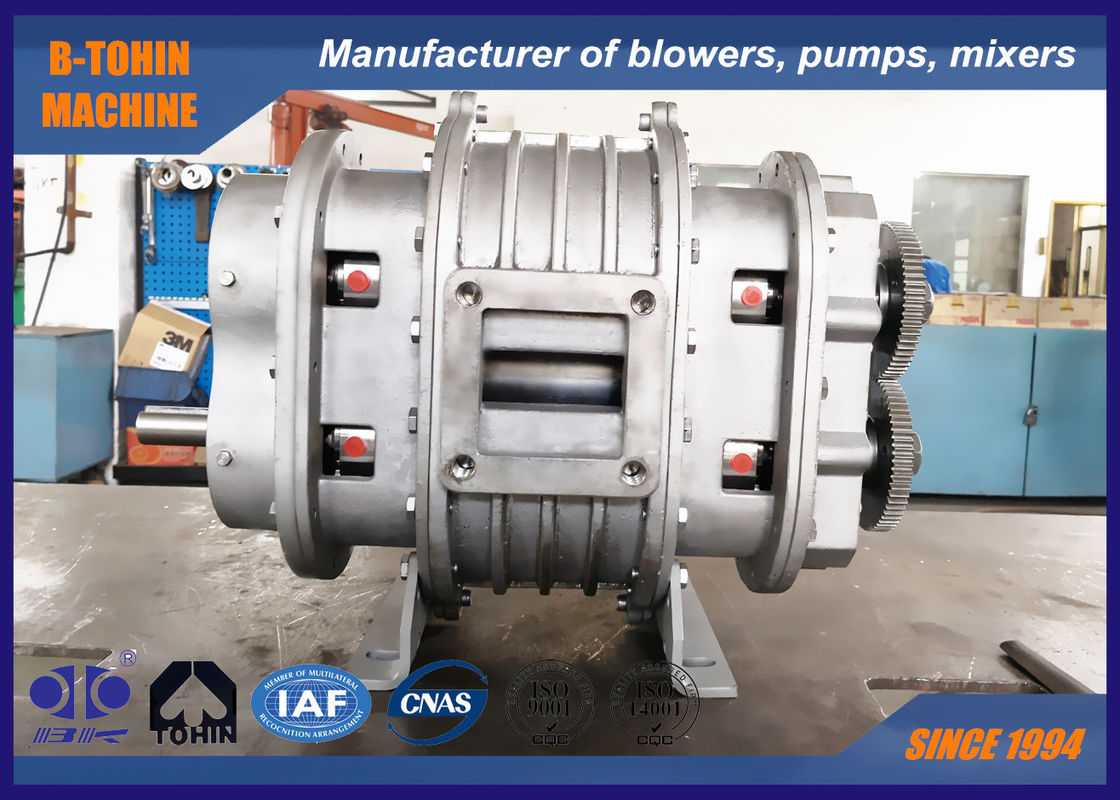

About BV300H Vacuum Blower
BV300H vacuum blower is a kind of displacement Roots type air pump. It can reach -55KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.
Specifications
|
Model
|
BV300H
|
|
Air capacity
|
69.85-105.14m3/min
|
|
Discharge differential pressure
|
-50 ~ -55KPA
|
|
Rotary speed
|
1175-1650rpm
|
|
Motor type
|
110-160KW
380/400/415/440V, 3PHASES, 50/60HZ
|
|
Motor brand
|
Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option
|
|
Installation type
|
Standard: vertical type
|
|
N.W. of blower without motor
|
1680kg
|
Parameter sheet
| Model |
Speed |
Inlet capacity (m3/min)and shaft power (KW) |
| -0.5kgf/cm² |
-0.55kgf/cm² |
| -5000mmH2O |
-5500mmH2O |
| -0.05Mpa |
-0.055Mpa |
| rpm |
m3/min |
KW |
m3/min |
KW |
| BV300H |
1175 |
70.69 |
85.75 |
69.85 |
90.76 |
| Port Dia: DN300(12") |
1300 |
79.75 |
94.87 |
78.89 |
102.58 |
| 1480 |
92.81 |
111.25 |
91.92 |
121.35 |
| 1575 |
99.7 |
114.94 |
98.8 |
127.07 |
| 1650 |
105.14 |
137.72 |
104.23 |
141.52 |
Assembling drawing of blower package
Dimension size
| BV-H Outline Dimension Sheet: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Unit:mm |
Type |
Port Dia |
Motor power(kw) |
A |
B |
B1 |
C |
D |
E |
F |
G |
J |
K |
M |
N |
0 |
P |
W |
Q |
T |
U |
n-M16×h |
Weight
(kg) |
| BV300H |
(12") |
37～45 |
1600 |
1000 |
500 |
300 |
185 |
1200 |
380 |
245 |
275 |
390 |
595 |
565 |
920 |
980 |
415 |
30 |
2667 |
842 |
6-M16×400 |
1680 |
| 55 |
1620 |
310 |
| 75～90 |
1680 |
340 |
| 110～200 |
1750 |
375 |
| Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt. |
|
| The weight above are for standard accessories only,motor excluded. |
|
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
FAQ
Q1. Are you manufacturer or trading company?
We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.
Q2: Where is your factory located? May I have a visit?
Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.
Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
Q4: What is your warranty?
Our warranty is 12 months after received the machine.
Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.
Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.
Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
