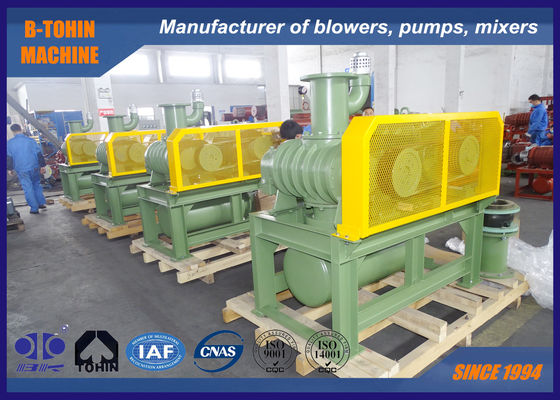

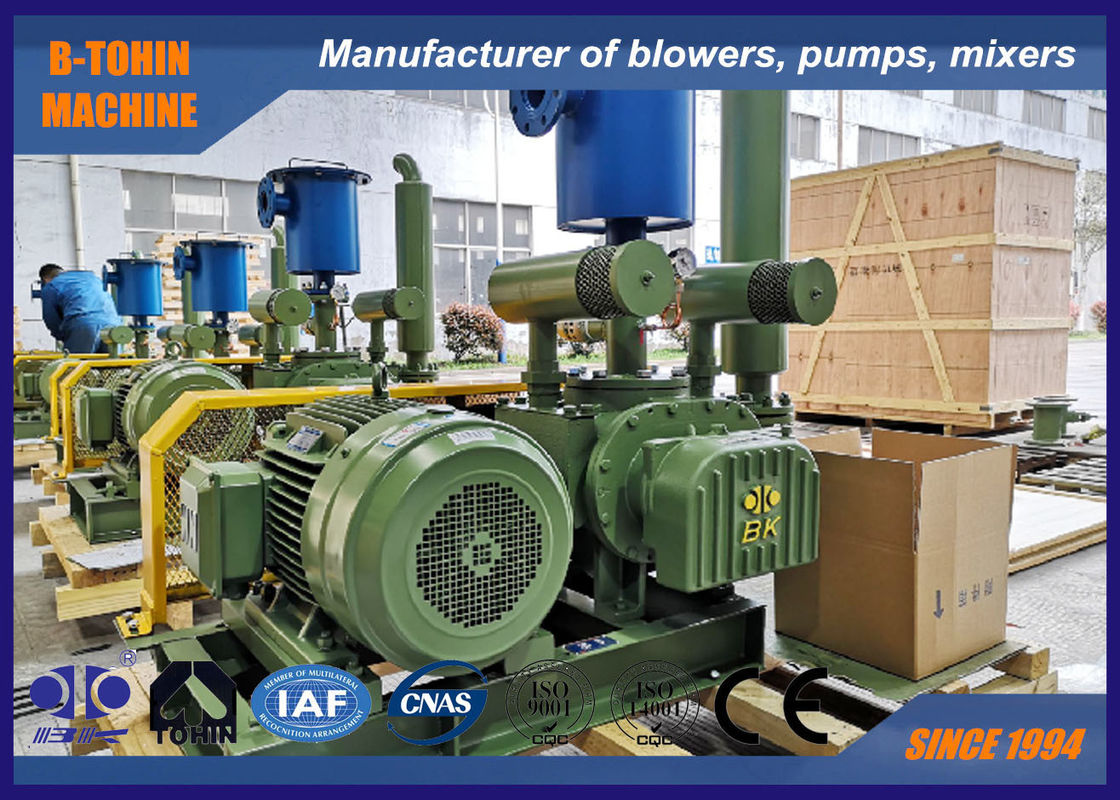

DN125 5" 12.37m3/min 22KW -65KPA 1750RMP Negative Pressure Roots Vacuum Pump

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV125H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	9.47-16.96m3/min
Discharge Differential Pressure:	-50KPA ~ -70KPA	Motor Power:	11-15/18.5-22/30-37KW
Discharge Bore:	DN125(5")	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Speed:	1400-2200 RMP
Shaft Power:	12.3-24.2KW
Highlight:	15KW Roots Vacuum Pump , DN125 Roots Vacuum Pump , 9.47m3/Min Roots Vacuum Pump

Roots type vacuum pump negative pressure blower, 9.47-16.96m3/min,-50KPA to -70KPA, 11-15KW

About BV125H Vacuum Blower

BV125H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.

Specifications

Model	BV125H
Air capacity	9.47-16.96m³/min
Discharge differential pressure	-50 ~ -70KPA
Rotary speed	1400-2200rpm
Motor type	11-15/18.5-22/30-37KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: vertical type
N.W. of blower without motor	313kg

Parameter sheet

Model	Speed	Inlet capacity (m3/min)and shaft power (KW)
		-0.5kgf/cm²		-0.55kgf/cm²		-0.6kgf/cm²		-0.65kgf/cm²		-0.7kgf/cm²
		-5000mmH2O		-5500mmH2O		-6000mmH2O		-6500mmH2O		-7000mmH2O
		-0.05Mpa		-0.055Mpa		-0.06Mpa		-0.065Mpa		-0.07Mpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV125H	1400	9.76	12.3	9.62	13.07	9.47	13.85
Port Dia: DN125(5")	1550	11.11	13.61	10.96	14.47	10.82	15.33	10.59	16.19
	1750	12.91	15.37	12.76	16.34	12.61	17.31	12.37	18.28	12.14	19.25
	1850	13.81	16.25	13.66	17.27	13.51	18.3	13.26	19.32	13.02	20.35
	2050	15.61	18.01	15.46	19.14	15.31	20.28	15.04	21.41	14.78	22.55
	2200	16.96	19.32	16.81	20.54	16.65	21.76	16.38	22.98	16.1	24.20

Assembling drawing of blower package

DN125 5" 12.37m3/min 22KW -65KPA 1750RMP Negative Pressure Roots Vacuum Pump 0

Dimension size

BV-H Outline Dimension Sheet																					Unit:mm
Type	Port Dia	Motor power(kw)	A	B	B1	C	D	E	F	G	J	K	M	N	0	P	W	Q	T	U	n-M16×h	Weight (kg)
BV125H	(5")	11～15	920	720	360	100	108	1000	250	165	132	206	361	229	410	460	231	25	1902	487	6-M16×400	313
		18.5～22	950	700	350	125								259	440	490
		30～37	1030	800	400	115								349	530	580
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.
