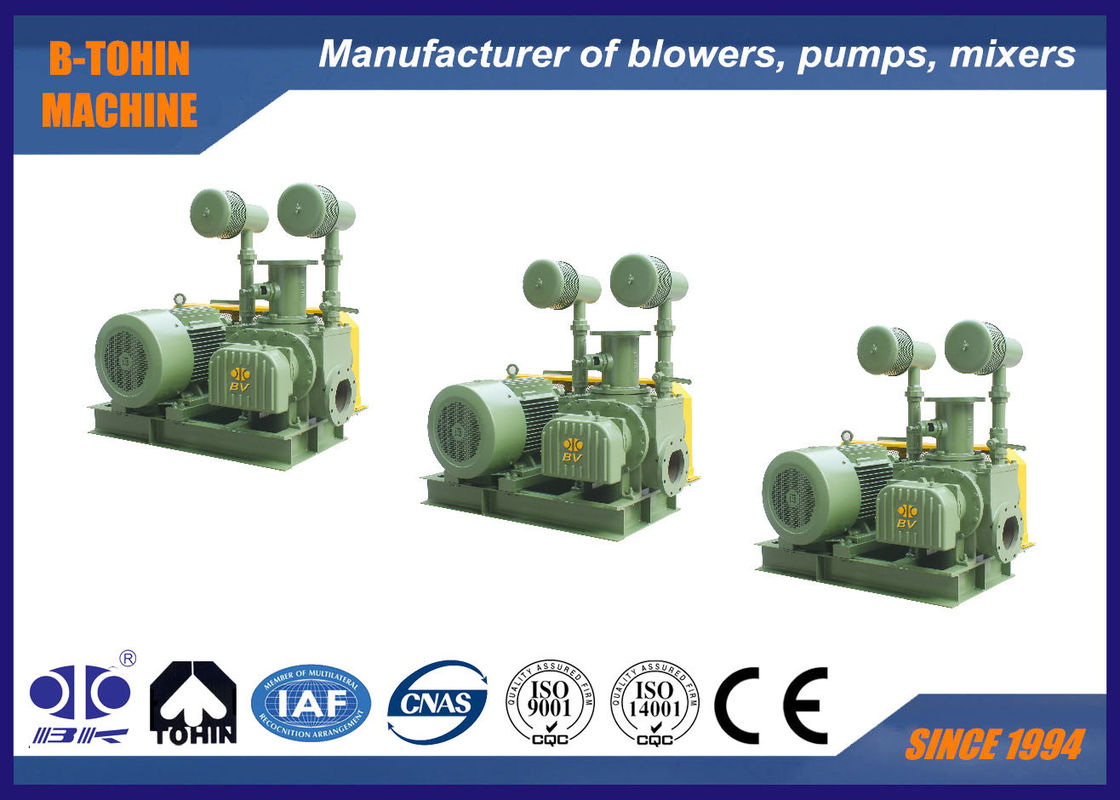

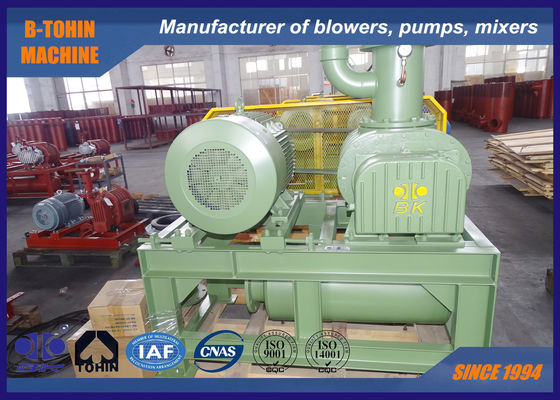

Vacuum 50KPA To 70KPA DN65 2.5”Negative Pressure Rotary Lobe Blower

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001
Model Number:	BV65

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	80 SETS per month

Contact Now

Detailed Product Description

Type:	Vacuum Sauction, Roots Type	Air Capacity:	2.07-4.06m3/min
Discharge Differential Pressure:	-50KPA ~ -70KPA	Motor Power:	3-4/5.5-7.5/11KW
Discharge Bore:	DN65(2.5")	Cooling Type:	Air
Driven Type:	Motor Driven, Connected By Belt And Pulley	Speed:	1500-2200 Rpm
Weight:	176 Kg
Highlight:	DN65 Rotary Lobe Blower , 10KPA Rotary Lobe Blower , 70KPA Rotary Lobe Blower

Vacuum 50KPA to vacuum 70KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower

About BV65H Vacuum Blower

BV65H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.

Specifications

Model	BV65H
Air capacity	2.07-4.06m³/min
Discharge differential pressure	-50 ~ -70KPA
Rotary speed	1500-2200rpm
Motor type	3-4/5.5-7.5/11KW 380/400/415/440V, 3PHASES, 50/60HZ
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: vertical type
N.W. of blower without motor	176kg

Parameter sheet

Model	Speed	Inlet capacity (m3/min)and shaft power (KW)
		-0.5kgf/cm²		-0.55kgf/cm²		-0.6kgf/cm²		-0.65kgf/cm²		-0.7kgf/cm²
		-5000mmH2O		-5500mmH2O		-6000mmH2O		-6500mmH2O		-7000mmH2O
		-0.05Mpa		-0.055Mpa		-0.06Mpa		-0.065Mpa		-0.07Mpa
	rpm	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW	m3/min	KW
BV65H	1500	2.3	4.26	2.23	4.49	2.16	4.72	2.07	4.96
Port Dia: DN65(2.5")	1700	2.79	4.83	2.72	5.09	2.66	5.35	2.57	5.62	2.48	5.88
	1900	3.3	5.4	3.23	5.69	3.16	5.98	3.06	6.28	2.97	6.57
	2100	3.74	5.89	3.67	6.21	3.59	6.53	3.5	6.85	3.4	7.17
	2200	4.06	6.25	3.98	6.59	3.91	6.93	3.82	7.27	3.72	7.6

Assembling drawing of blower package

Vacuum 50KPA To 70KPA DN65 2.5”Negative Pressure Rotary Lobe Blower 0

Dimension size

BV-H Outline Dimension Sheet																					Unit:mm
Type	Port Dia	Motor power(kw)	A	B	B1	C	D	E	F	G	J	K	M	N	0	P	W	Q	T	U	n-M16×h	Weight (kg)
BV65H	(2.5")	3～4	760	500	0	130	83	815	190	115	103	165.5	242	238	300	350	143	25	1490	370	4-M16×300	176
		5.5～7.5	790	550		120								238	330	380
		11～15	840	600		120								288	380	430
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.
