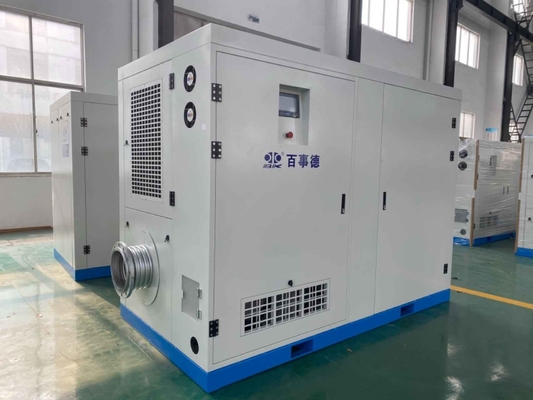

High Pressure VFD Screw Type Blower With Permanent Magnet Motor

Product Details:

Place of Origin:	CHINA
Brand Name:	B-TOHIN
Certification:	ISO9001 / ISO14001
Model Number:	BLG210RA

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	EXPORT WOODEN CASE
Delivery Time:	30 WORKING DAYS
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Description:	Screw Blower BLG210RA	Pressure:	160-200Kpa
Air Flow:	20.5m3/min-42.1m3/min	Package:	Wooden Case
Motor Power:	75kw-132kw	Cooling Type:	Oil
Port Dia.:	DN250	Blower Speed:	2800-4800 Rpm
Highlight:	high pressure screw type blower , VFD screw type blower , permanent magnet motor twin screw blower

Screw Blower BLG210RA

Working Principle
1. Suction starts
2. Suction ends and compression begins
3. During compression
4. Compression ends and air discharge begins

High Pressure VFD Screw Type Blower With Permanent Magnet Motor 0

Features

Energy saving
Thanks to the adiabatic compression principle, the total efficiency of oil-free screw blower exceeds 75%, saving more than 20%-35% energy than the Roots blower. The blower is featured with higher discharge pressure and lower pressure pulse.

Low noise
The aerodynamic noise of the screw rotor is very small, and the smooth output eliminates the sudden release of internal air, and the wavy inlet and air outlet minimize airflow fluctuations, so the noise is less than that of traditional blowers.

Intelligent
Intelligent PLC control, remote control and various communication methods are convenient for operation and management

Low cost
The optimized structural design enables the durability of the product with less consumption. Also no special infrastructure is required due to the smooth running and small load of the unit.

Parameters

Force- lubrication	Pressure Range	100-200KPa	Airflow Range	3-200m³/min	Power Range	11-500kw
No.	Model	Diameter	Exhaust Pressure (KPa)	Airflow (m³/min)	Motor Power (Kw)	Main Body Speed (rpm)
1	BLG115RA-Ⅱ	DN150	100-150	3.0-6.8	11-22	3500-6000
2	BLG115RB-Ⅱ			4.0-9.4	11-30	3500-6000
3	BLG170RA-Ⅱ			11.2-23.1	30-75	2800-5000
4	BLG170RB-Ⅱ			15.3-315	30-90	2800-5000
5	BLG210RA-Ⅱ	DN250	100-150	22.6-45.8	45-110	2600-4800
6	BLG210RB-Ⅱ	DN250	100-150	28.2-56.6	55-132	2600-4800
7	BLG300RB-Ⅱ	DN300	100-150	55.3-98.9	110-250	2000-3300
8	BLG360RB-Ⅱ	DN350	100-150	101.2-196.4	220-480	1800-3100
9	BLG170RA-Ⅲ	DN150	160-200	10.5-21.1	45-75	3000-5000
10	BLG170RB-Ⅲ	DN150	160-200	14.8-28.9	45-110	3000-5000
11	BLG210RA-Ⅲ	DN250	160-200	20.5-42.1	75-132	2800-4800
12	BLG210RB-Ⅲ	DN250	160-200	28.1-53.6	75-160	2800-4800
13	BLG300RB-Ⅲ	DN300	160-200	52.1-95	160-315	2200-3300

Description of blower parts

Shaft screw blower main body	high efficiency profile rotor design ● adopt synchronous gear and drive gear of national standard precision grade 5 ● Innovative bearing arrangement of screw, fixed radial bearing and thrust bearing adopted to increase the service life ● oil and gas separation between compression chamber and lubricating chamber realized by Labyrinth seal + carbon ring seal, ensuring the discharge of pure air.
Permanent magnet motor	Magnetic properties, no external energy is required to maintain its magnetic field ● High efficiency and energy saving, the average efficiency of 75%- 80% can be achieved in the speed range of 1500-6000r/min. ● High accuracy in voltage regulation can prolong the battery’s service life. ● No brushes, no collector rings, and no sparks generated during operation, so there is no wireless interference, which greatly improves the operation performance.
Oil lubrication system	More reliable forced circulation lubrication cooling system separately designed ● advanced oil circuit system composed of oil pump, oil cooling and oil filter ● low oil temperature enables longer service life of bearings and gears
Operation control system	Integrated station monitoring instrument, signal control module, inverter, touch screen, etc., no additional installation required ● the selection of driving components is optimized, and parameter settings can accurately achieve higher efficiency ● Complete automatic control and protection functions, and realize online control and remote control at the same time ● A variety of operating modes, enabling users to adjust the operation to be more power-saving mode according to the changes in working conditions

Supply Scope

Items	Description	Unit	Qty.	Remarks
1	Blower main body	set	1
2	Motor	set	1	VFD
3	Cooling fan	set	1
4	Heat Exchanger	set	1
5	Air filter	set	1
6	Oil filter	set	1
7	Pressure valve	set	1
8	Oil pump	set	1
9	Connection pipe	pcs	1
10	Contactor	set	1	Siemens or Schneider
11	Inverter	set	1	Taiwan QMA
12	Enclosure	set	1
13	Check valve	set	1
14	Stainless steel expansion joint	set	1
15	Relief valve	set	1
