Professional Manufacturer of Various Kinds of Blowers

|
| Place of Origin: | China |
| Brand Name: | BC |
| Certification: | ISO9001/ISO14001 |
| Model Number: | BC9020 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 7500-9960 / SET |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SETS per month |
| Type: | Positive Displacement, Roots Type, Air Conveying | Air Capacity: | 26.99-81.37m3/min |
|---|---|---|---|
| Discharge Differential Pressure: | 10-80KPA | Motor Power: | 15-90KW |
| Discharge Bore: | DN250 (10”) | Cooling Type: | Air |
| Application:: | Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement, Pipe Clearing, Power Plant, Etc. | Main Materials: | Cast Iron |
| Highlight: | high pressure roots style blower,3 lobe roots style blower,high pressure 3 lobe roots blower |
||

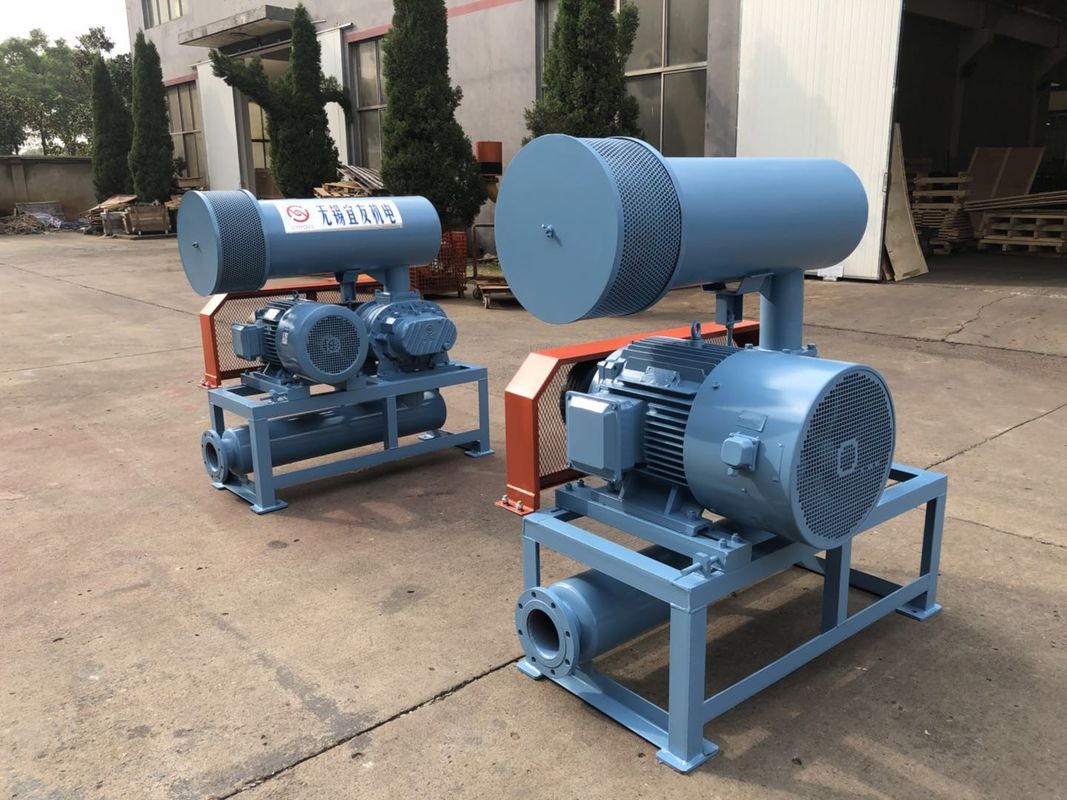

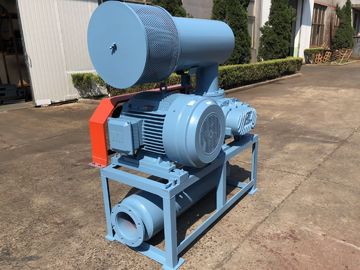

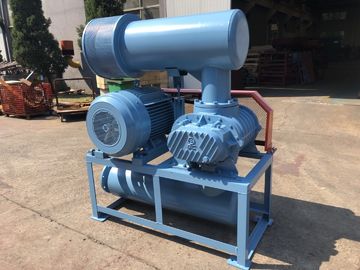

DN250 Three Lobe Roots Blower, 15-132KW, 80KPA air cooling rotary blower
BC blowers have improved full-adiabatic efficiency as well as volumetric efficiency and provide wonderful air
capacity vs.pressure characteristics.
|
Model |
BC9020 |
|
Air capacity |
26.99-81.37m3/min |
|
Discharge differential pressure |
10-80KPA |
|
Rotary speed |
700-1500rpm |
|
Motor type |
15KW-132KW 380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: horizontal type. Vertical type available for your option |
| Color | Customized, standard of RAL6011 |
|
N.W. of blower without motor |
1310 kg |
|
Packing size Approx. |
2.62*1.78*2.45m (length*width*height) |
Features:
1.BC three-lobe blowers needn't water coolant within 80kpa rising pressure.
2. The helical gears are adopted for much more stable conveying.
3. By adoption of an special profile of rotor,the clearance between the rotors can be held to be constant,
which makes the efficiency even higher.
4. The precision of rotors is fully controlled by mass production on precise NC machines.In addition,
the rotors are almost free of vibrations since they are dynamically balanced in the fabrication stage
already.
5. The helical timing gears are adopted not only to extend the use life but also to make noise lower.
Parameter sheet
| Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
| 0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | |||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | |||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BC9020 | 250(10") | 700 | 35.04 | 12.11 | 32.72 | 18.99 | 30.93 | 25.36 | 29.48 | 29.05 |
| 850 | 43.73 | 14.71 | 41.41 | 23.06 | 39.61 | 30.80 | 38.17 | 35.28 | ||
| 1000 | 52.41 | 17.30 | 50.10 | 27.12 | 48.30 | 36.23 | 46.85 | 41.50 | ||
| 1150 | 61.10 | 19.90 | 58.78 | 31.19 | 56.99 | 41.67 | 55.54 | 47.73 | ||
| 1250 | 66.89 | 21.63 | 64.58 | 33.90 | 62.78 | 45.29 | 61.33 | 51.88 | ||
| 1400 | 75.58 | 24.22 | 73.26 | 37.97 | 71.47 | 50.73 | 70.02 | 58.10 | ||
| 1500 | 81.37 | 25.95 | 79.05 | 40.69 | 77.26 | 54.35 | 75.81 | 62.25 | ||
| Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
| 0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
| 5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | |||||||
| 0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | |||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BC9020 | 250(10") | 700 | 28.15 | 35.91 | 26.99 | 42.76 | ||||
| 850 | 36.83 | 43.60 | 35.68 | 51.93 | ||||||
| 1000 | 45.52 | 51.30 | 44.36 | 61.09 | 43.26 | 70.89 | 42.28 | 80.68 | ||
| 1150 | 54.21 | 58.99 | 53.05 | 70.26 | 51.95 | 81.52 | 50.97 | 92.79 | ||
| 1250 | 60.00 | 64.12 | 58.84 | 76.37 | 57.74 | 88.61 | 56.76 | 100.86 | ||
| 1400 | 68.69 | 71.81 | 67.53 | 85.53 | 66.43 | 99.24 | 65.44 | 112.96 | ||
| 1500 | 74.48 | 76.94 | 73.32 | 91.64 | 72.22 | 106.33 | 71.24 | 121.03 | ||
Structure of blower main body
|
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
|
1 |
Footing |
2 |
|
9 |
Left end cover |
1 |
|
17 |
Oil tank |
1 |
|
2 |
Hexagon bolt |
4 |
|
10 |
Round pin |
4 |
|
18 |
Gear |
2 |
|
3 |
Antidust seal |
1 |
|
11 |
Casing |
1 |
|
19 |
Key |
2 |
|
4 |
Drive impeller |
1 |
|
12 |
Oil seal |
4 |
|
20 |
Axial sleeve |
2 |
|
5 |
Bearing |
2 |
|
13 |
Right end cover |
1 |
|
21 |
Bearing |
2 |
|
6 |
Driven impeller |
2 |
|
14 |
Bolt |
16 |
|
22 |
Bearing plate |
2 |
|
7 |
Dust cup |
1 |
|
15 |
Breather |
1 |
|
23 |
Adjustable pad |
several |
|
8 |
Grease nipple |
2 |
|
16 |
Bolt |
8 |
|
24 |
Magnetic nut |
1 |
Assembling drawing of blower package
Standard supply of scope
1. bare shaft blower
2. pressure relieve valve
3. wafer check valve (slim type)
4. inlet silencer(with air filter)
5. outlet silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. motor pulley
9. pressure meter
10. V-belt
11. bolts and nuts and other connection parts
12. electric motor
