Place of Origin: | CHINA |
Brand Name: | BK |
Certification: | ISO9001 / ISO14001/CE |
Model Number: | BKD-2000 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | USD 8550- USD 9440 |
Packaging Details: | WOODEN CASES |
Delivery Time: | 50 WORK DAYS |
Payment Terms: | L/C, T/T |
Supply Ability: | 20 SETS PER MONTH |

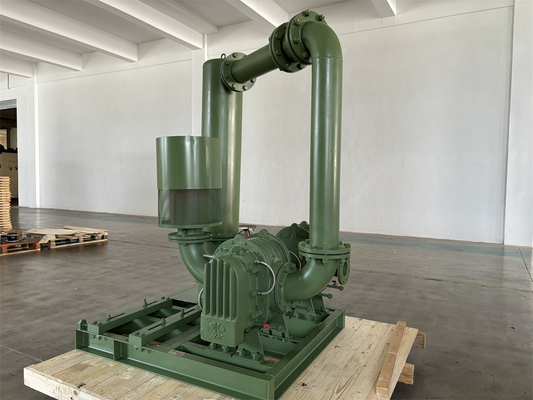

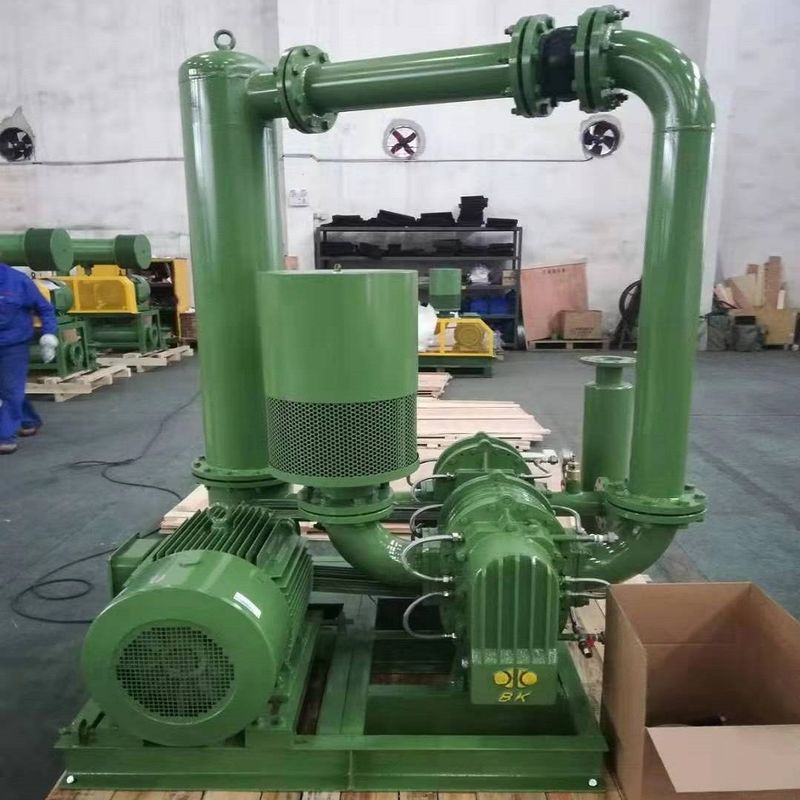

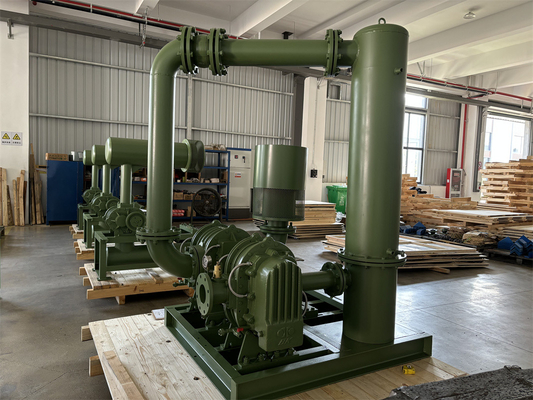

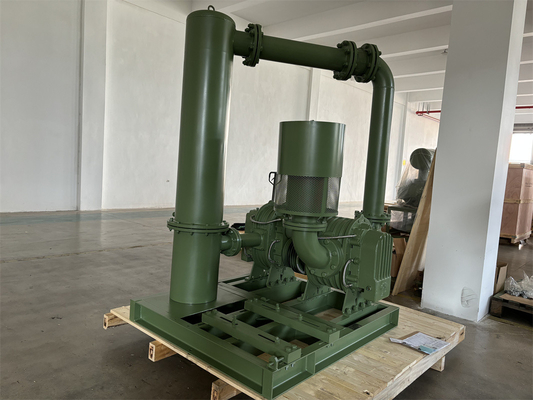

Name: | Three Lobe Roots Blower | NAME: | BKD-2000 |
---|---|---|---|
Color: | Customization | Air Capacity: | 5.76m3/Min-14.04m3/Min |
Main Materials: | Cast Iron | Outlet Size: | DN80(3") |
Blower RPM: | 850-1500 | Voltage: | 380V/400V/415V/440V/Customed |
Frequency: | 50HZ/60HZ | ||
Highlight: | two stages pneumatic conveying blower,high pressure pneumatic conveying blower,stable pneumatic conveying blower |
About BKD
BK Roots Blower is a kind of product designed and manufactured according to the national standards and by the techniques introduced from American TUTHILL Co. This type blower is featured with simple structure and high cubage efficiency.
BKD series is a dual stage roots blower, which has two BKWblowers in series, can achieve higher pressure comparing with single one, also there is a middle cooling system between the first and the second stage, it ensures the standard temperature of the airflow to the second blower.
Specifications:
Model | BKD2000 |
Air capacity | 5.76m3/Min-14.04m3/Min |
Discharge differential pressure | 100-150KPA |
Rotary speed | BKW6008(850rpm-1500rpm),BKW6005(850rpm-1500rpm), |
Motor type | 11KW-55KW 380/400/415/440V, 3PHASES, 50/60HZ |
Motor brand | Standard: Siemens Beide or Wannan motor |
Installation type | Standard: horizontal type. Vertical type available for your option |
N.W. of blower without motor | 615 kg |
Packing size Approx. | 1.65*1.65*1.95m (length*width*height) |
Features | 1. Helical type timing gears for smooth operation 2. Compact, flexibility in installation gives users more choices. 3. Integral structure of impeller and shaft for more stable transmission of power 4. Adopt imported oil seals made from fluoric rubber with better wear resistance and high-temperature resistance. 5. Low noise, low vibration and energy consumption. |
Parameter
Type | Suited Blower | Port Dia | Speed | Inlet airflow(m3/min)and shaft power(KW)at different conditions | Cooling water | ||||||||
rpm | 100kpa | 120kpa | 140kpa | 150kpa | |||||||||
1 | 2 | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | |||
BKD-2000 | BKW6008+BKW6005 | 80(3'') | 850 | 850 | 6.42 | 16.43 | 6.11 | 18.33 | 5.84 | 20.73 | 5.76 | 22.04 | 40 |
1000 | 1000 | 8.17 | 19.33 | 7.87 | 21.57 | 7.60 | 24.39 | 7.52 | 25.92 | ||||
1150 | 1150 | 9.93 | 22.22 | 9.63 | 24.80 | 9.36 | 28.05 | 9.28 | 29.81 | ||||
1250 | 1250 | 11.11 | 24.16 | 10.80 | 26.96 | 10.53 | 30.49 | 10.45 | 32.40 | ||||
1400 | 1400 | 12.87 | 27.06 | 12.56 | 30.19 | 12.29 | 34.14 | 12.21 | 36.29 | ||||
1500 | 1500 | 14.04 | 28.99 | 13.73 | 32.35 | 13.46 | 36.85 | 13.38 | 38.89 |
Working Principle
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.
Structure of blower
Structure of main body
Application
Exihibition
