Place of Origin: | China |
Brand Name: | BK |
Certification: | ISO9001/ISO14001/CE |
Model Number: | BK7011 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Export standard wooden case |
Delivery Time: | 5 to 20 working days, depends on order amount and specification |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 SETS per month |
Air Capacity: | 10.90-31.51m3/min | Discharge Differential Pressure: | 10-70KPA |
---|---|---|---|
Motor Power: | 5.5-45KW | Discharge Bore: | DN150 (6”) |
Application:: | Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement Factory, Power Plant, Etc. | Main Materials: | Cast Iron |
Origin Of Technology: | USA | Connected By: | Belt And Pulley |
Cooled: | By Natural Air | ||
Highlight: | high pressure roots type air blower,cast iron roots lobe blower,10kpa roots lobe blower |

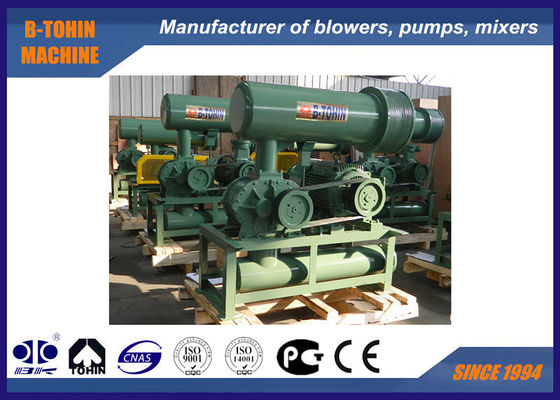

Cast Iron Lobe Roots Blower, Roots Air Compressor, Pressure 10-70KPA
B-Tohin is a professional manufacturer that producing cast iron lobe roots blowers.
And we have independent research department to design and make new products according to clients’ special requirement.
Specifications:
Model |
BK7011 |
Air capacity |
10.90-31.51m3/min |
Discharge differential pressure |
10-70KPA |
Rotary speed |
700-1500rpm |
Motor type |
5.5KW-45KW 380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Installation type |
Standard: horizontal type. Vertical type available for your option |
Color | Customized, standard of RAL6011 |
N.W. of blower without motor |
477 kg |
Packing size Approx. |
1.8*1.3*2.1m (length*width*height) |
Features:
1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller , more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of reliable wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.
Parameter sheet
Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | |||||||
1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | |||||||
0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | |||||||
rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
BK7011 | 150(6") | 700 | 13.57 | 3.77 | 12.67 | 6.60 | 11.97 | 8.98 | 11.41 | 11.87 |
850 | 16.93 | 4.57 | 16.03 | 8.01 | 15.34 | 10.90 | 14.78 | 14.41 | ||
1000 | 20.29 | 5.38 | 19.40 | 9.42 | 18.70 | 12.83 | 18.14 | 16.95 | ||
1150 | 23.66 | 6.19 | 22.76 | 10.84 | 22.07 | 14.75 | 21.50 | 19.50 | ||
1250 | 25.90 | 6.73 | 25.00 | 11.78 | 24.31 | 16.03 | 23.75 | 21.19 | ||
1400 | 29.26 | 7.53 | 28.37 | 13.19 | 27.67 | 17.96 | 27.11 | 23.73 | ||
1500 | 31.51 | 8.07 | 30.61 | 14.13 | 29.91 | 19.24 | 29.35 | 25.43 |
Model | Port Dia (MM) |
Speed | Inlet capacity (m3/min)and shaft power (KW) | |||||||
0.5kgf/cm2 | 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | |||||||
5000mmH2O | 6000mmH2O | 7000mmH2O | 8000mmH2O | |||||||
0.05Mpa | 0.06Mpa | 0.07Mpa | 0.08Mpa | |||||||
rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
BK7011 | 150(6") | 700 | 10.90 | 14.94 | ||||||
850 | 14.26 | 18.14 | 13.81 | 21.65 | ||||||
1000 | 17.63 | 21.35 | 17.18 | 25.47 | 16.75 | 27.14 | ||||
1150 | 20.99 | 24.55 | 20.54 | 29.30 | 20.11 | 31.21 | ||||
1250 | 23.23 | 26.68 | 22.78 | 31.84 | 22.36 | 33.92 | ||||
1400 | 26.59 | 29.88 | 26.15 | 35.66 | 25.72 | 37.99 | ||||
1500 | 28.84 | 32.02 | 28.39 | 38.21 | 27.96 | 40.70 |
Structure of blower main body
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
1 |
Footing |
2 |
|
9 |
Left end cover |
1 |
|
17 |
Oil tank |
1 |
2 |
Hexagon bolt |
4 |
|
10 |
Round pin |
4 |
|
18 |
Gear |
2 |
3 |
Antidust seal |
1 |
|
11 |
Casing |
1 |
|
19 |
Key |
2 |
4 |
Drive impeller |
1 |
|
12 |
Oil seal |
4 |
|
20 |
Axial sleeve |
2 |
5 |
Drive end bearing |
2 |
|
13 |
Right end cover |
1 |
|
21 |
Gear end bearing |
2 |
6 |
Driven impeller |
2 |
|
14 |
Bolt |
16 |
|
22 |
Bearing plate |
2 |
7 |
Dust cover |
1 |
|
15 |
Breather |
1 |
|
23 |
Adjustable pad |
several |
8 |
Grease nipple |
2 |
|
16 |
Bolt |
8 |
|
24 |
Magnetic nut |
1 |
Assembling drawing of blower package
Standard supply of scope
1. bare shaft blower
2. relieve valve
3. wafer check valve (slim type)
4. inlet silencer(with air filter)
5. discharge silencer
6. public base (with belt cover)
7. rubber flexible joint and shock absorber
8. motor pulley
9. pressure meter
10. V-belt
11. bolts and nuts and other connection parts
12. electric 3 phase motor
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
