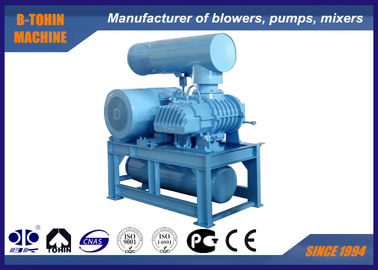

100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry

100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry

    • 100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry
    • 100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry
  • 100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry

    Product Details:

    Place of Origin: China
    Brand Name: BK
    Certification: ISO9001/ISO14001/CE/GOST
    Model Number: BKW8016

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Export standard wooden case
    Delivery Time: 5 to 20 working days, depends on order amount and specification
    Payment Terms: L/C, T/T
    Supply Ability: 100 SETS per month
    Contact Now
    Detailed Product Description
    Name: Roots Rotary Lobe Blower Type: Positive Displacement Roots Type, Three Lobes
    Air Capacity: 14.63-43.50m3/min Discharge Differential Pressure: 60-100KPA
    Motor Power: 30-110W Discharge Bore: DN200(8”)
    Driven Type: Motor Driven, Connected By Belt And Pulley Installation Type: Horizontal, Vertical Available Also



    100KPA Roots Rotary Lobe Blower,  capacity 2400m3/hour  air blower



    Roots blower is a kind of volumetric blower whose air capacity and revolution have formed a proportion. Each rotation of the three-lobe type blower needs three times of air suction & discharge of two-lobes. Compared to two-lobe type blower, three lobe roots blower have the characteristics of low air pulsation changes than two-lobe roots blowers.




    Specifications


    Model

    BKW8016

    Air capacity

    14.63-43.50m3/min

    Discharge differential pressure

    60-100KPA

    Rotary speed

    700-1500rpm

    Cooling water volume

    15 l/min

    Motor type

    30-110KW
    380/400/415/440V, 3PHASES, 50/60HZ

    Motor brand

    Standard: Siemens Beide or Wannan motor
    Siemens and ABB motor for your option

    Installation type

    Standard: horizontal type.
    Vertical type available for your option

    N.W. of blower without motor

    615kg

    Packing size Approx.

    2.1*1.4*2.26m (L*W*H)





    Features

    1. Delivers completely oil-free air.
    2. The specially designed rotor runs smoothly
    3. Small change in capacity against change in pressure.
    4. High efficiency due to special profile.
    5. Compact structure is easy to fix and safe to use








    Applications

    1. petrochemical industry

    2. construction materials

    3. electric power, metallurgy

    4. chemical fertilizer

    5. paper making

    6. aquaculture and wastewater treatment,

    7. environmental protection industry






    Parameter sheet

    Model Speed Inlet capacity (m3/min)and shaft power (KW)

    Cool-

    ing
    Water



    0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2    0.9kgf/cm2 1.0kgf/cm2
    6000mmH2O 7000mmH2O 8000mmH2O 9000mmH2O 10000mmH2O
    0.06Mpa 0.07Mpa 0.08Mpa 0.09Mpa 0.1Mpa
    rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min

    BKW

    8016


    Port

    Dia:

    DN200

    (8")

    700 15.37 26.60  14.63 30.77              15
    850 20.64 32.31  19.90 37.36
    1000 25.92 38.01  25.18 43.96  24.51 49.90  23.84 55.85  23.25 61.80
    1150 31.19 43.71  30.45 50.55  29.79 57.39  29.12 64.23  28.52 71.07
    1250 34.71 47.51  33.97 54.94  33.30 62.38  32.63 69.82  32.04 77.25
    1400 39.98 53.21  39.25 61.54  38.58 69.87  37.91 78.19  37.31 86.52
    1500 43.50 57.01  42.76 65.93  42.09 74.86  41.43 83.78  40.83 92.70






    Structure of blower main body

    100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry




    Flow direction of cooling water

    100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry





    Assembling drawing of blower package



    100KPA 2400m3/hour Rotary Positive Displacement Blower for Petrochemical Industry




    Standard supply of scope

    1. shaft blower

    2. inlet silencer (with air filter)

    3. outlet silencer

    4. relieve valve

    5. check valve

    6. flexible joint

    7. pressure gage

    8. blower pulley and motor pulley

    9. V-belt

    10. belt cover
    11. public base

    12. motor
