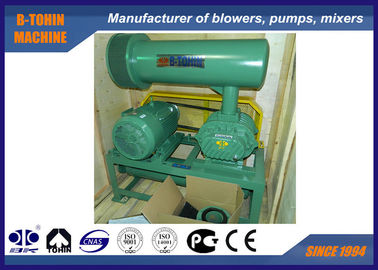

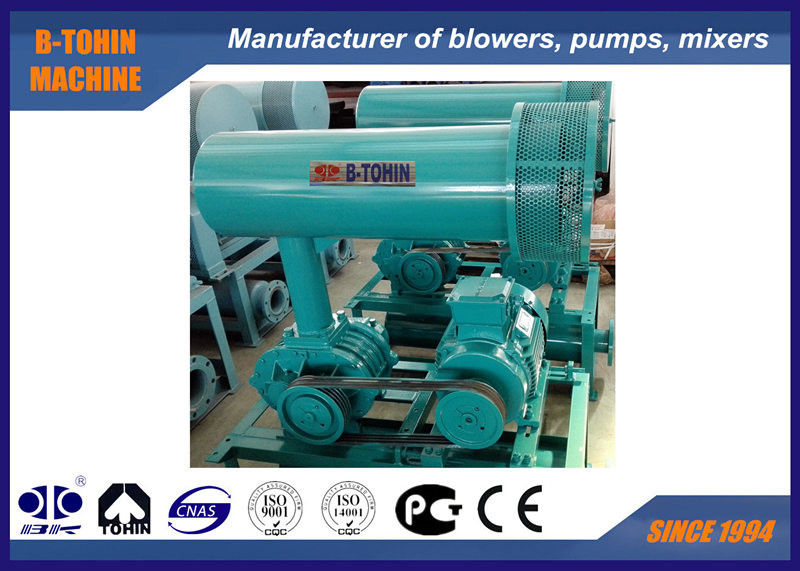

Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA

Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA

Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA
Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA
Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001 / ISO14001 / CE
Model Number: BK5003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 110 SETS / month
Contact Now
Detailed Product Description
Air Capacity: 3.43 - 7.15 M3/min Name: Three Lobe Roots Blower
Discharge Differential Pressure: 10-80 KPA Motor Power: 5.5-7.5 KW/11-15 KW
Main Materials: Cast Iron Origin Of Technology: USA
Cooled: By Natural Air Blower RPM: 850-2000
Voltage: 380V/400V/415V/440V/Customed Frequency: 50HZ/60HZ
Installation Type:: Horizontal Or Vertical
Highlight:

3 Lobe Roots Blower

,

pneumatic conveying blower

Wrought Iron Roots Lobe Blower with Pressure 10-80KPA for weste water treatment



B-Tohin is a professional manufacturer that producing wrought iron lobe roots blowers. And we have independent research department to design and make new products according to clients’ special requirement.





Specifications:



Model

BK5003

Air capacity

3.43-7.15 m3 / min

Discharge differential pressure

10-80 KPA

Rotary speed

850-2000rpm

Motor type

5.5-7.5KW   /11-15KW

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: horizontal type.

Vertical type available for your option
Color Customized, standard of RAL6011

Packing size Approx.

1.8*1.3*2.1m (length*width*height)





Features:

1. Helical type timing gears for smooth operation

2. Compact, flexibility in installation gives users more choices.

3. Integral structure of impeller superior to split structure, more stable in power transmission

4. Low noise and vibration, compact and economical energy consumption.

5. Bearing structure of inlet and outlet for flexibity of installation.





Parameter sheet



Model Port Dia Speed Inlet capacity (m3/min)and shaft power (KW)
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2 0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O 5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BK5003 65(2.5") 850 2.67 0.95 2.39 1.58 2.19 2.40 2.01 2.72 1.86 3.31 1.72 3.9
1000 3.25 1.12 2.98 1.85 2.77 2.83 2.60 3.20 2.44 3.89 2.31 4.59
1150 3.84 1.29 3.56 2.13 3.36 3.25 3.18 3.68 3.03 4.48 2.89 5.28 2.76 6.27
1250 4.23 1.40 3.95 2.32 3.75 3.53 3.57 4.00 3.42 4.87 3.28 5.74 3.15 6.81
1350 4.62 1.52 4.34 2.50 4.14 3.82 3.96 4.32 3.81 5.25 3.67 6.19 3.54 7.36 3.43 8.30
1500 5.20 1.69 4.93 2.78 4.72 4.24 4.55 4.80 4.39 5.84 4.26 6.88 4.13 8.17 4.01 9.22
1600 5.59 1.80 5.32 2.97 5.11 4.52 4.94 5.11 4.78 6.23 4.65 7.34 4.52 8.72 4.40 9.83
1750 6.18 1.97 5.91 3.24 5.70 4.95 5.52 5.59 5.37 6.81 5.23 8.03 5.10 9.54 4.99 10.75
1850 6.57 2.08 6.30 3.43 6.09 5.23 5.91 5.91 5.76 7.20 5.62 8.49 5.50 10.08 5.30 11.37
2000 7.15 2.25 6.88 3.71 6.67 5.65 6.50 6.39 6.35 7.78 6.21 9.18 6.08 10.90 5.96 12.29

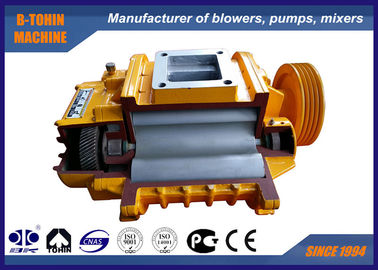

Structure of blower main body


Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA 0





No.

Part Name

Qty.



No.

Part Name

Qty.



No.

Part Name

Qty.

1

Footing

2



9

Left end cover

1



17

Oil tank

1

2

Hexagon bolt

4



10

Round pin

4



18

Gear

2

3

Antidust seal

1



11

Casing

1



19

Key

2

4

Drive impeller

1



12

Oil seal

4



20

Axial sleeve

2

5

Drive end bearing

2



13

Right end cover

1



21

Gear end bearing

2

6

Driven impeller

2



14

Bolt

16



22

Bearing plate

2

7

Dust cover

1



15

Breather

1



23

Adjustable pad

several

8

Grease nipple

2



16

Bolt

8



24

Magnetic nut

1





Assembling drawing of blower package



Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA 1





Standard supply of scope



1. bare shaft blower

2. relieve valve

3. wafer check valve (slim type)

4. inlet silencer(with air filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock absorber

8. motor pulley

9. pressure meter

10. V-belt

11. bolts and nuts and other connection parts

12. electric 3 phase motor



Product Outline Dimension

Professional Wrought Iron Three Lobe Roots Blower With Pressure 10-80KPA 2



BK Outline Dimension Sheet                       Unit:mm
Type Port Dia Motor power A B C D E F G H K M N 0 P Q 4-M16×h
Weight
(kg)
BK4005 40(1.5") 1.5～4 700 590 90 90 456 194 215 827 129 300 370 95 130 18 4-M16×300 65
BK4007 50(2") 1.5～5.5 820 640 90 90 457 185 236 872 151 370 440 105 130 18 4-M16×300 92
BK5003 65(2.5") 5.5～7.5 1190 940 90 200 532 172 200 1072 133 346 410 115 190 18 4-M16×300 171
11～15 474 538
BK5006 100(4") 5.5～7.5 1220 980 90 228 592 199 234 1216 170 369 433 150 230 18 4-M16×300 204
11～15 489 553
18.5～22 534 598
BK5009 100(4") 5.5～7.5 1255 984 110 192 608 204 272 1225 163 325 409 150 230 18 4-M16×300 239
11~15 428 512
18.5～22 473 557
BK6005 80(3") 5.5～7.5 1330 1054 100 221 598 179 237 1162 161 332 406 135 200 18 4-M16×300 241
11~15 458 532
18.5～22 493 567
BK6008 125(5") 5.5～7.5 1335 1084 110 222 688 206 297 1375 150 300 385 165 250 18 4-M16×400 290
11～15 410 495
18.5～22 455 540
30 495 580
37～45 560 645
BK6015 150(6") 11～22 1340 1064 113 222 748 232 364 1460 238 476 573 180 280 24 4-M16×400 380
30 539 636
37～45 563 660
BK7006 100(4") 11~15 1495 1214 113 282 725 205 254 1432 198 489 563 150 230 18 4-M16×400 385
18.5～22 534 608
30 574 648
37～45 636 710
BK7011 150(6") 11～15 1495 1200 123 271 829 232 324 1484 190 443 536 180 280 24 4-M16×400 477
18.5～22 457 550
30 497 590
37～45 559 652
BK7018 200(8") 11～45 1550 1250 125 271 894 266 413 1660 279 558 647 190 350 24 4-M16×400 564
55 628 717
BK8016S 150(6") 30～90 1658 1390 105 283 962 332 413 1862 217 670 780 180 280 24 4-M16×400 730
BK8024S 200(8") 22～90 1750 1490 105 345 1010 284 452 1890 334 780 875 190 350 24 4-M16×400 800
BK9020S 200(8") 30～132 4-M16×400
BK9030S 250(10") 37～90 2140 1840 105 385 1056 294 544 2118 344 808 918 230 360 38 4-M16×400 1300
110~220 960 1070
BK10027S 300(12") 37~90 2070 1750 105 375 1144 289 587 2274 334 860 970 245 380 38 4-M16×400 1600
10～220 2210 1890 960 1070
BK10034S 350(14") 75～315 2255 1940 105 455 1268 344 642 2347 432 990 1100 260 440 38 4-M16×400 1900
Dimension for BK12034 and BK12042 will be supplied specially.
Standard accessory include:Inlet and outlet silencer,pressure gauge,base-frame,blower's pulley,motor's pulley,belt,belt guard,relief valve,check valve.
The weight above are for standard accessories only,motor excluded.
