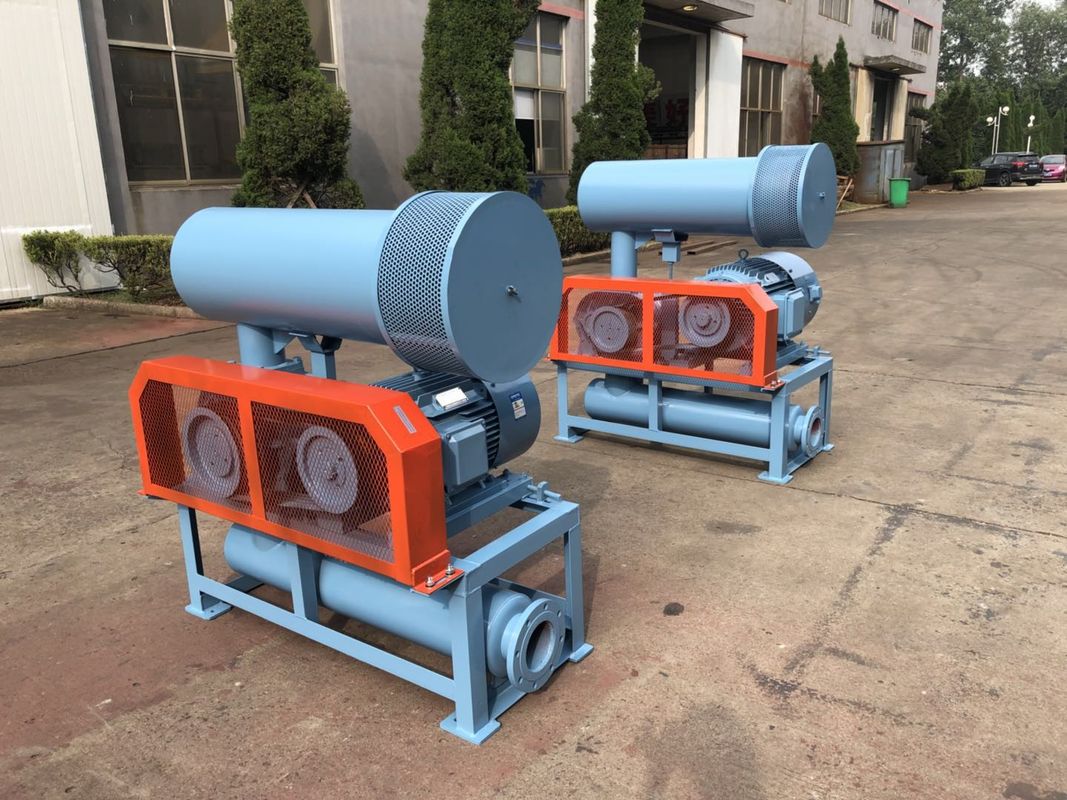

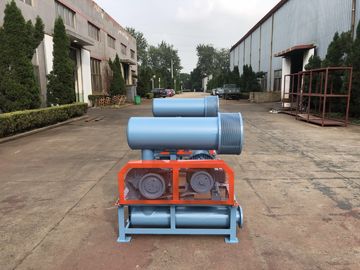

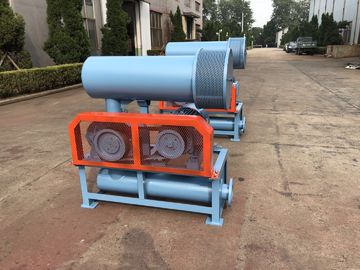

5.5-22KW Three Lobe Roots Blower For Various Uses / Roots Style Blower
1,BC Three Lobe Roots Blower Introduction
Roots Blower is a cubage blower ,and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and discharging air.Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration. Two parallel shafts have three lobes each , all the lobes keep small clearance with each other and housing inside . Every lobes rotation , a certain air will be absorbed at inlet and transferred from the housing inside surface to blower's discharge port. Two shafts will be turned by the timing gears, no any touching between lobes , so it can be turned at high speed without any lubrication inside. It has the following characteristics : Simply configuration ; running smoothly ; good performance stabilization . It has been widely applied in various industries.
2,BC Type Performance Parameters Sheet
| Type |
Port Dia |
Speed |
Inlet airflow(m3/min)and shaft power(KW)at different conditions |
| 10kpa |
20kpa |
30kpa |
40kpa |
50kpa |
60kpa |
70kpa |
80kpa |
| rpm |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
m3/min |
KW |
| BC6005 |
80(3'') |
850 |
5.01 |
1.66 |
4.58 |
2.95 |
4.26 |
3.90 |
3.99 |
4.87 |
3.75 |
6.00 |
3.54 |
7.13 |
|
|
|
|
| 1000 |
6.07 |
1.95 |
5.65 |
3.47 |
5.33 |
4.59 |
5.05 |
5.73 |
4.82 |
7.06 |
4.60 |
8.39 |
4.40 |
9.45 |
4.22 |
10.73 |
| 1150 |
7.13 |
2.24 |
6.71 |
3.99 |
6.39 |
5.28 |
6.11 |
6.59 |
5.88 |
8.12 |
5.67 |
9.65 |
5.46 |
10.87 |
5.29 |
12.33 |
| 1250 |
7.84 |
2.44 |
7.42 |
4.34 |
7.10 |
5.74 |
6.82 |
7.16 |
6.59 |
8.82 |
6.38 |
10.49 |
6.17 |
11.82 |
5.99 |
13.41 |
| 1400 |
8.91 |
2.73 |
8.48 |
4.86 |
8.16 |
6.43 |
7.89 |
8.02 |
7.65 |
9.88 |
7.44 |
11.74 |
7.23 |
13.24 |
7.06 |
15.02 |
| 1500 |
9.61 |
2.92 |
9.19 |
5.21 |
8.87 |
6.89 |
8.59 |
8.60 |
8.36 |
10.59 |
8.15 |
12.58 |
7.94 |
14.18 |
7.76 |
16.09 |
| 1650 |
10.68 |
3.22 |
10.25 |
5.73 |
9.93 |
7.58 |
9.66 |
9.46 |
9.42 |
11.65 |
9.21 |
13.84 |
9.00 |
15.60 |
8.83 |
17.70 |
| 1800 |
11.74 |
3.51 |
11.31 |
6.25 |
11.00 |
8.27 |
10.72 |
10.32 |
10.49 |
12.71 |
10.27 |
15.10 |
10.07 |
17.02 |
9.89 |
19.31 |
3,Structure Drawings
1) Working smoothly as helical timing gears is adopted.
2) It is flexible mounting ways because of the same structure in inlet and outlet.
3) It adopts more reasonable bearing structure, which can increase the bearing operation life.
4) It is low noise, vibration and energy consumption.
4,Optional Accessories
1)Discharge Silencer ( vertical airflow )
2) Flexible Joint
3) AD Type check valve with machined surface sealed
