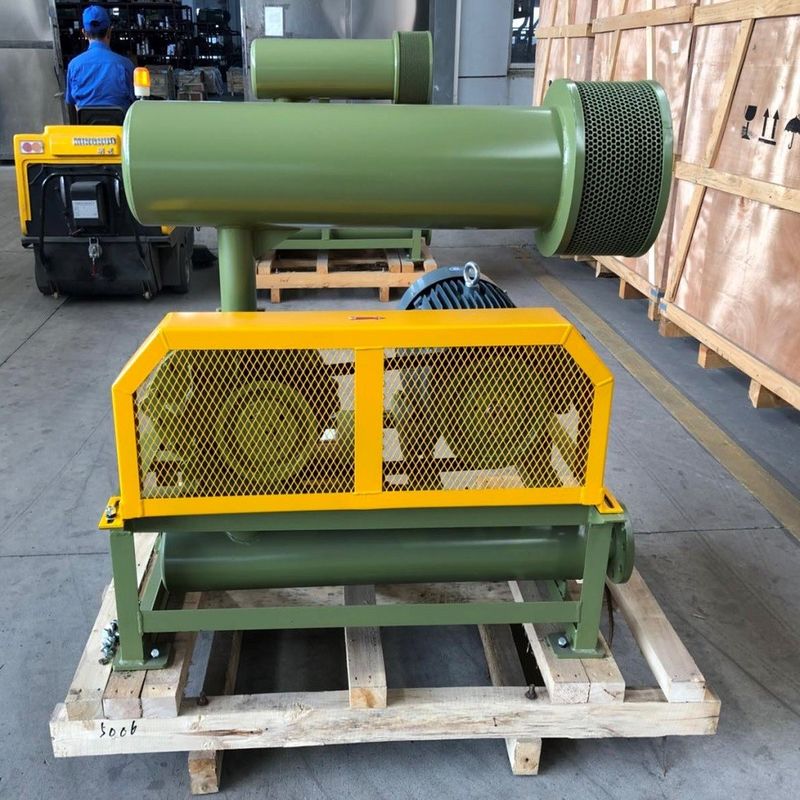

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower
10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower
10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower
Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001 / ISO14001/CE
Model Number: BK6005(5.5KW)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2600
Packaging Details: Export wooden case
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Name: Three Lobe Roots Blower Material: Iron
Color: Army Green Motor Power: 1.5KW-22KW
Air Capacity: 3.84m3/Min-12.74m3/Min Application: Waste Water Treatment
Blower RPM: 850-1800 Voltage: 380V/400V/415V/440V
Frequency: 50HZ/60HZ Installation Type:: Horizontal Or Vertical
High Light:

3 Lobe Roots Blower

,

pneumatic conveying blower



About BK
BK Roots Blower is a kind of product designed and manufactured according to the national standards and by the techniques introduced from America. This type blower is featured with simple structure and high cubage efficiency.

Specifications:

Model BK6005
Air capacity 3.84m3/Min-12.74m3/Min
Discharge differential pressure 10-80KPA
Rotary speed 850rpm-1800rpm
Motor type 1.5KW-22KW
380/400/415/440V, 3PHASES, 50/60HZ
Motor brand Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option
Installation type Standard: horizontal type.
Vertical type available for your option
N.W. of blower without motor 275 kg
Packing size Approx. 1500mm*1050mm*1750mm (length*width*height)
Features 1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller and shaft made of QT500 for safe and smooth running
4. Adopt imported oil seals made from fluoric rubber with perfect wear resistance and high-temperature resistance.
5. Low noise, low vibration and energy consumption.




Parameter

Type Port Dia Speed Inlet airflow(m3/min)and shaft power(KW)at different conditions
10kpa 20kpa 30kpa 40kpa 50kpa 60kpa 70kpa 80kpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BK6005 80(3'') 850 5.44 1.69 4.97 3.01 4.63 3.98 4.33 4.97 4.07 6.12 3.84 7.28
1000 6.59 1.99 6.13 3.54 5.78 4.69 5.48 5.85 5.23 7.20 5.00 8.56 4.77 9.65 4.58 10.94
1150 7.74 2.29 7.28 4.08 6.93 5.39 6.63 6.72 6.38 8.28 6.15 9.84 5.93 11.09 5.74 12.59
1250 8.51 2.49 8.05 4.43 7.70 5.86 7.40 7.31 7.15 9.01 6.92 10.70 6.70 12.06 6.50 13.68
1400 9.66 2.79 9.20 4.96 8.86 6.56 8.56 8.19 8.30 10.09 8.07 11.98 7.85 13.51 7.66 15.32
1500 10.43 2.98 9.97 5.32 9.63 7.03 9.33 8.77 9.07 10.81 8.84 12.84 8.62 14.47 8.43 16.42
1650 11.59 3.28 11.12 5.85 10.78 7.73 10.48 9.65 10.23 11.89 9.99 14.12 9.77 15.92 9.58 18.06
1800 12.74 3.58 12.28 6.38 11.93 8.44 11.63 10.53 11.38 12.97 11.15 15.41 10.92 17.36 10.73 19.70

Features:

1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of reliable wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.



Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 0

Blower Structure

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 110KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 2

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 3

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 4

Application

10KPA - 80KPA Three Lobe Roots Blower , Compact 2.2-22KW Roots Type Blower 5
