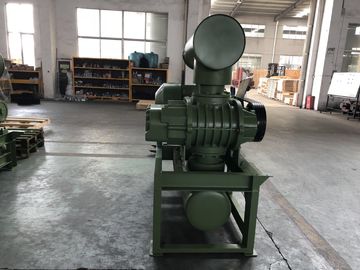

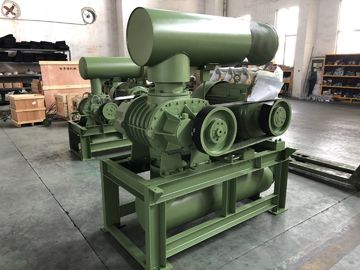

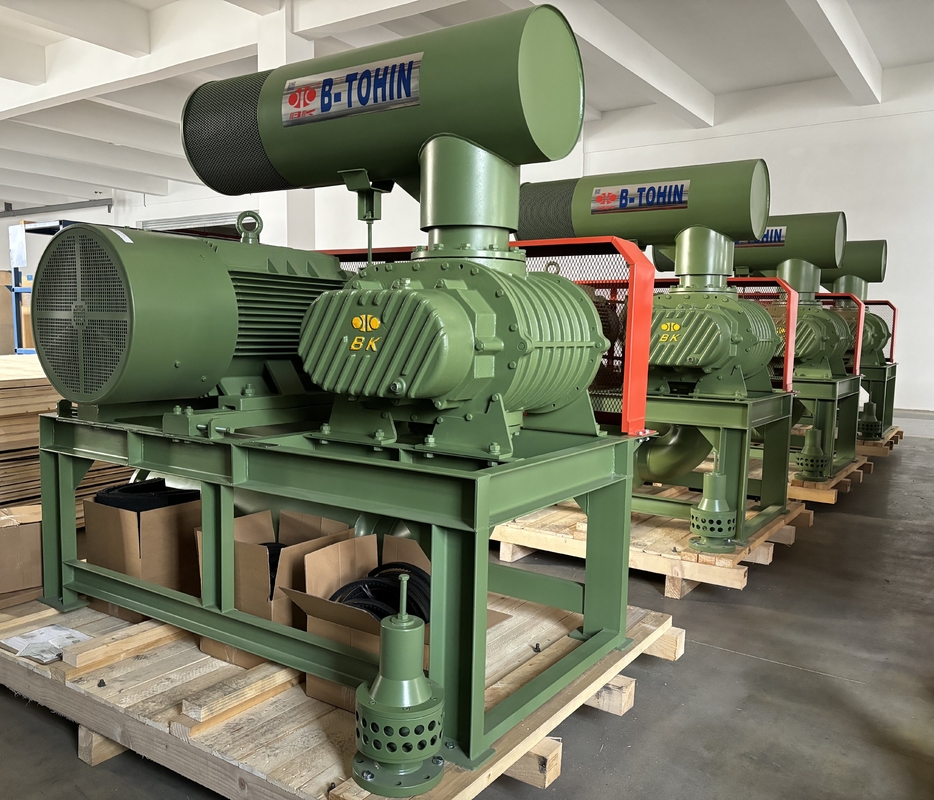

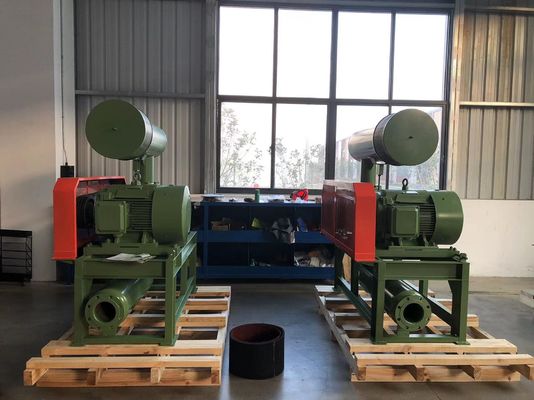

BK8016S Three Lobe Rotary Blower Of Pipe Clearing Ozone For Producing Customers Need

BK8016S Three Lobe Rotary Blower Of Pipe Clearing Ozon For Producing Customers Need

About BK
BK Roots Blower is a kind of product designed and manufactured according to the national standards and by the techniques introduced from America. This type blower is featured with simple structure and high cubage efficiency.

Specifications:

Parameter

Features:

1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller superior to split structure, more stable in power transmission
4. Adopt imported oil seals made from fluoro rubber, which is of perfect wear resistance and high-temperature resistance.
5. Small vibration and economical energy consumption.

Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

Blower Structure

Application

Exihibition
