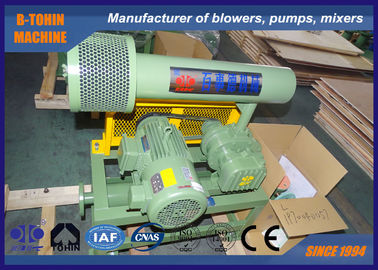

10KPA - 80KPA Pressure Three Lobe Roots Blower DN40 air cooling, vertical installation

Product Details:

Place of Origin:	China
Brand Name:	BK
Certification:	ISO9001/ISO14001/CE
Model Number:	BK4005

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	5 to 20 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	50 SETS per month

Contact Now

Detailed Product Description

Air Capacity:	0.42-1.8m3/min	Discharge Differential Pressure:	10-80KPA
Motor Power:	1.5-4KW	Discharge Bore:	DN40（1.5''）
Cooling Type:	Air	Connection Type:	Belt And Pulley
Rotary Speed:	1500-2300rpm
Highlight:	roots style blower , belt driven blowe

10KPA - 80KPA small flow DN40 three lobe Roots blower

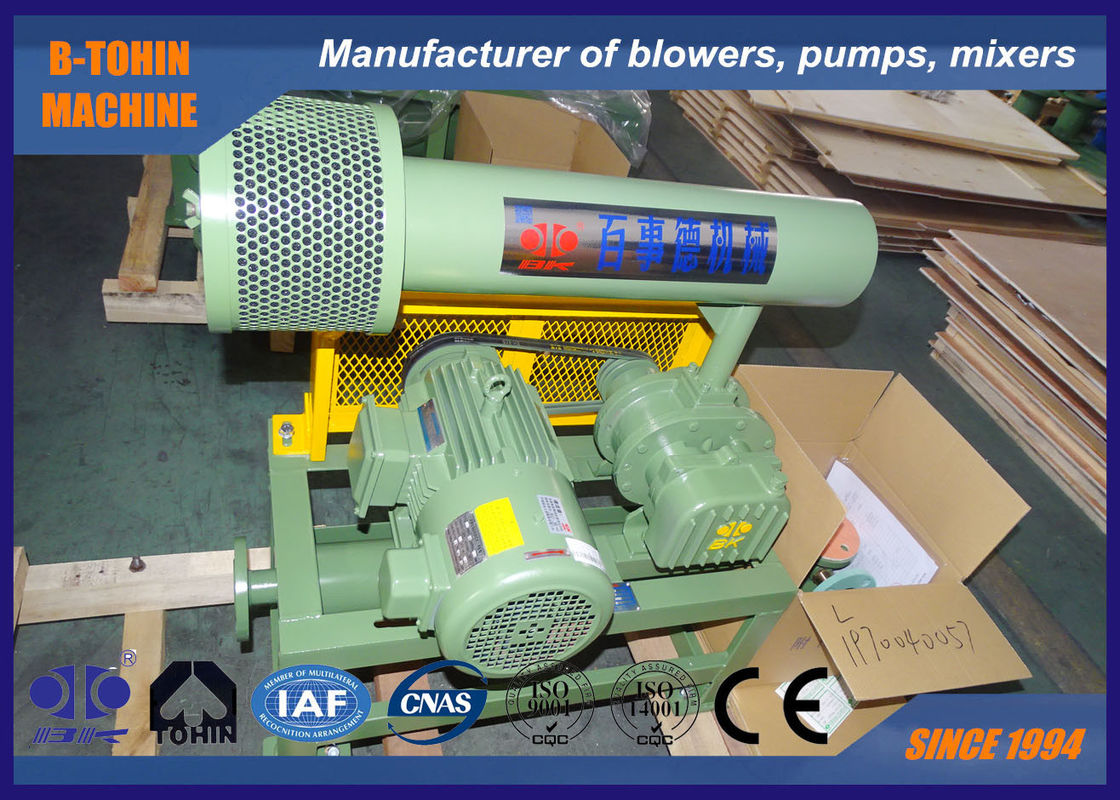

10KPA - 80KPA Three Lobe Roots Blower DN40 air cooling, vertical installation

About BK-3

BK-3 series roots blower inherits the design of BK series. It adopts air cooling type and improved rotor curve, which is featured of high efficiency and performance. Also this type blower is of vertical installation type for saving floor space and convenient for maintenance.

Specifications

Model	BK4005
Air capacity	0.42-1.8m3/min
Discharge differential pressure	10-80KPA
Rotary speed	1500-2300rpm
Motor type	1.5-4KW 380/400/415/440V/220V, 3PHASES, 50/60HZ, frequencytype
Motor brand	Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option
Installation type	Standard: horizontal type
N.W. of blower without motor	60kg
Packing size Approx.	1.250.851.28m (lengthwidthheight)

Features

Optimized lobe curve is adopted for reducing blower’s internal leakage, improving blower’s efficiency and reducing running temperature.
After radius-center distance ratio narrowed and shaft’s diameter enlarged, no deformation and collision will occur under higher load pressure as the blower’s strength is improved.
Special hollow design of end-cover is used for making bearing cavity separated from gas chamber relatively, by which reduces the impact of inside high temperature gas on bearing cavity and lowers the bearing temperature.
Deep groove ball bearing of high precision and low friction factor is selected for lowering operation noise. In addition, because of larger size bearing matched for enlarged shaft diameter, the bearing’s load capacity is enhanced and its service life is extended.
A structure of 90 degree upper inlet and side outlet is adopted for convenient installation and maintenance. Different silencers are available for customers’ needs of saving floor space.

Parameter

Model

Port Dia. (mm)

Speed

Inlet capacity (m3/min)and shaft power (KW)

0.1kgf/cm2

0.2kgf/cm2

0.3kgf/cm2

0.4kgf/cm2

0.5kgf/cm2

0.6kgf/cm2

0.7kgf/cm2

0.8kgf/cm2

1000mmH2O

2000mmH2O

3000mmH2O

4000mmH2O

5000mmH2O

6000mmH2O

7000mmH2O

8000mmH2O

0.01Mpa

0.02Mpa

0.03Mpa

0.04Mpa

0.05Mpa

0.06Mpa

0.07Mpa

0.08Mpa

rpm

m3/min

BK4005

40(1.5")

1500

1.01

0.82

0.81

0.96

0.66

1.11

0.53

1.25

0.42

1.40

1650

1.16

0.90

0.96

1.06

0.81

1.22

0.68

1.38

0.57

1.54

0.53

1.80

1800

1.31

0.98

1.12

1.16

0.96

1.33

0.85

1.50

0.74

1.68

0.68

1.90

1900

1.42

1.04

1.20

1.22

1.11

1.40

1.05

1.59

0.93

1.77

0.73

1.95

0.73

2.14

2150

1.65

1.17

1.45

1.38

1.30

1.59

1.17

1.80

1.06

2.00

0.96

2.21

0.87

2.42

0.78

2.63

2300

1.80

1.26

1.6

1.48

1.45

1.70

1.32

1.92

1.21

2.14

1.11

2.36

1.02

2.59

0.93

2.81

Assembling drawing of blower package

10KPA - 80KPA Pressure Three Lobe Roots Blower DN40 air cooling, vertical installation 0

Outline Dimension Sheet

Unit:mm

Type

Port Dia

Motor power

4-M16×h

Weight
(kg)

BK4005

40(1.5")

1.5～4

4-M16×300

Dimension for BK12034 and BK12042 will be supplied specially.

Standard accessory include:Inlet and outlet silencer,pressure gauge,base-frame,blower's pulley,motor's pulley,belt,belt guard,relief valve,check valve.

The weight above are for standard accessories only,motor excluded.

FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
