Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BK6015 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden case |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 SETS per month |
| Name: | Three Lobe Roots Blower | Type: | Positive Displacement, Roots Type, Air Conveying |
|---|---|---|---|
| Air Capacity: | 14.23-37.95m3/min | Discharge Differential Pressure: | 10-50KPA |
| Motor Power: | 7.5-45KW | Discharge Bore: | DN150 (6”) |
| Cooling Type: | Air | Application:: | Aeration, Backwashing, Pneumatic Conveying, Applied For Water Treatment, Cement, Pipe Clearing, Power Plant, Etc. |
| Main Materials: | Cast Iron | Origin Of Technology: | USA |
| Outlet Size: | DN150(6") | Blower RPM: | 850-1800 |
| Voltage&Frequency: | 380V/400V415V/440V&50Hz/60Hz | Colour: | Customized Colour |
| High Light: | low noise roots blower,roots three lobe blower,50KPA three lobe rotary blower |
||
aeration backwash tri-lobe displacement roots blower
cement / water treatment low noise

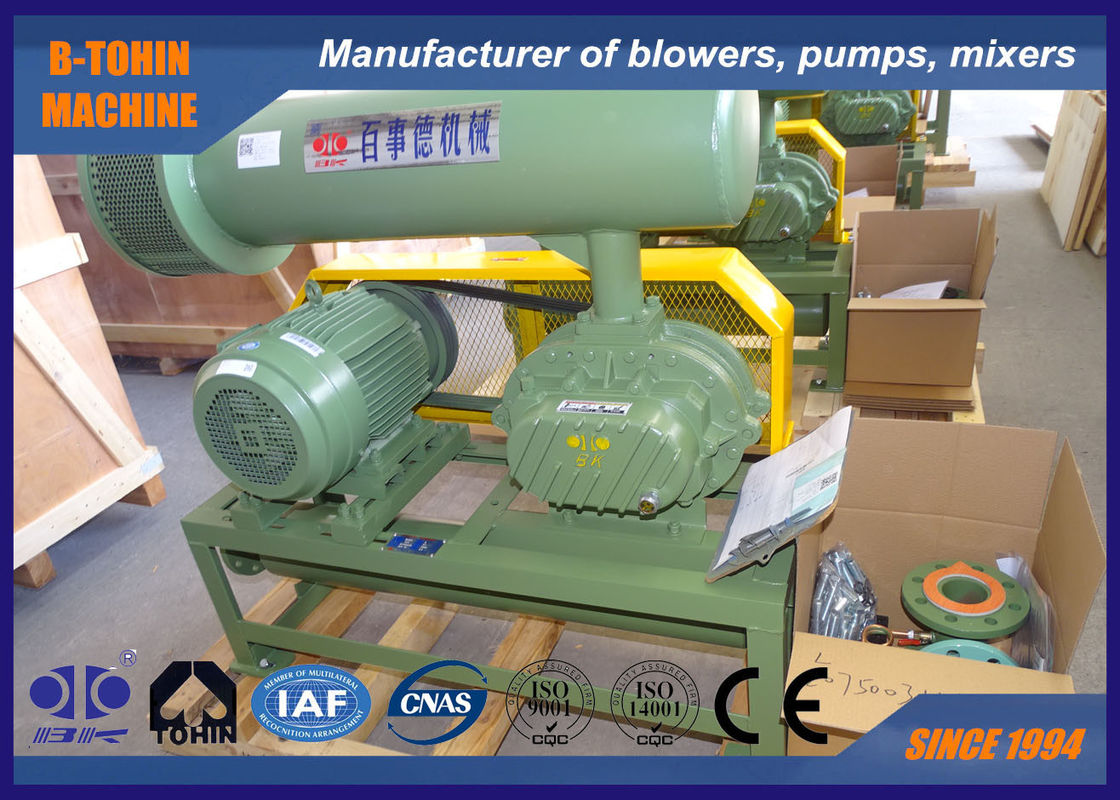

Aeration Tank Three Lobe Roots Blower, belt drive PD air blower, 10-50KPA
B-TOHIN roots blower is a modern roots blower brand who focuses on the research and development , manufacturing and marketing of green technology and environment protection equipment. BK blowers have been widely used in aeration of water treatment.
Specifications:
|
Model |
BK6015 |
|
Air capacity |
14.23-37.95m3/min |
|
Discharge differential pressure |
10-50KPA |
|
Rotary speed |
850-1800rpm |
|
Motor type |
5.5KW-45KW 380/400/415/440V, 3PHASES, 50/60HZ, frequency motor also available |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: horizontal type. Vertical type available for your option |
| Color | Customized, standard of RAL6011 |
|
N.W. of blower without motor |
380 kg |
|
Packing size Approx. |
1.8*1.2*2m (length*width*height) |
Features:
1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller for stable rotation in running.
4. Adopt imported oil seals made from fluoro rubber with better wear resistance and high-temperature resistance.
5. Low noise, small vibration and economical energy consumption.
Parameter sheet
| Model | Port Dia (MM) | Speed | Inlet airflow (m3/min)and shaft power(KW) | |||||||||
| 0.1kgf/cm2 | 0.2kgf/cm2 | 0.3kgf/cm2 | 0.4kgf/cm2 | 0.5kgf/cm2 | ||||||||
| 1000mmH2O | 2000mmH2O | 3000mmH2O | 4000mmH2O | 5000mmH2O | ||||||||
| 0.01Mpa | 0.02Mpa | 0.03Mpa | 0.04Mpa | 0.05Mpa | ||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | ||
| BK6015 | 150 (6") | 850 | 16.66 | 4.61 | 15.65 | 8.08 | 14.89 | 11.00 | 14.23 | 13.94 | ||
| 1000 | 20.02 | 5.43 | 19.01 | 9.50 | 18.25 | 12.94 | 17.60 | 16.40 | 17.04 | 20.39 | ||
| 1150 | 23.38 | 6.24 | 22.37 | 10.93 | 21.61 | 14.88 | 20.96 | 18.86 | 20.40 | 23.45 | ||
| 1250 | 25.62 | 6.78 | 24.61 | 11.88 | 23.85 | 16.18 | 23.20 | 20.50 | 22.64 | 25.49 | ||
| 1400 | 28.99 | 7.60 | 27.98 | 13.30 | 27.21 | 18.12 | 26.56 | 22.96 | 26.00 | 28.55 | ||
| 1500 | 31.23 | 8.14 | 30.22 | 14.25 | 29.46 | 19.41 | 28.81 | 24.60 | 28.25 | 30.59 | ||
| 1650 | 34.59 | 8.96 | 33.58 | 15.68 | 32.82 | 21.35 | 32.17 | 27.05 | 31.61 | 33.65 | ||
| 1800 | 37.95 | 9.77 | 36.94 | 17.10 | 36.18 | 23.29 | 35.53 | 29.51 | 34.97 | 36.71 | ||

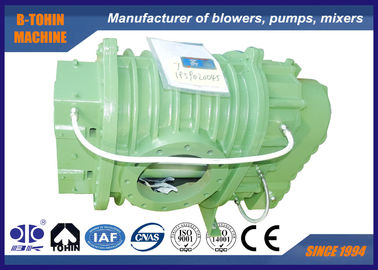

Structure of blower main body
|
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
|
No. |
Part Name |
Qty. |
|
1 |
Footing |
2 |
|
9 |
Left end cover |
1 |
|
17 |
Oil tank |
1 |
|
2 |
Hexagon bolt |
4 |
|
10 |
Round pin |
4 |
|
18 |
Gear |
2 |
|
3 |
Antidust seal |
1 |
|
11 |
Casing |
1 |
|
19 |
Key |
2 |
|
4 |
Drive impeller |
1 |
|
12 |
Oil seal |
4 |
|
20 |
Axial sleeve |
2 |
|
5 |
Bearing |
2 |
|
13 |
Right end cover |
1 |
|
21 |
Bearing |
2 |
|
6 |
Driven impeller |
2 |
|
14 |
Bolt |
16 |
|
22 |
Bearing plate |
2 |
|
7 |
Dust cup |
1 |
|
15 |
Breather |
1 |
|
23 |
Adjustable pad |
several |
|
8 |
Grease nipple |
2 |
|
16 |
Bolt |
8 |
|
24 |
Magnetic nut |
1 |

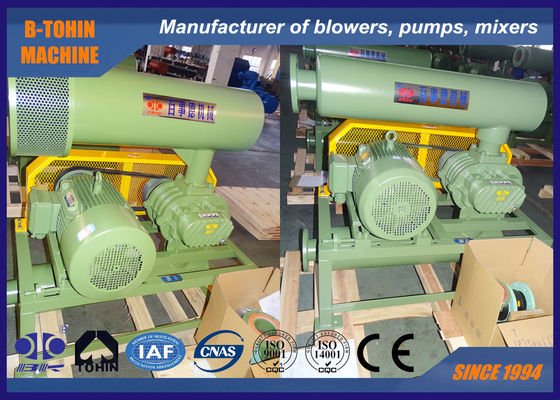

Assembling drawing of blower package
Standard supply of scope
1. bare shaft blower
2. pressure relieve valve
3. wafer check valve (slim type)
4. inlet silencer(with air filter)
5. outlet silencer
6. public base (with belt cover)
7. rubber flexible joint and shock pad
8. motor pulley
9. pressure meter
10. V-belt
11. bolts and nuts and other connection parts
12. electric motor
