Professional Manufacturer of Various Kinds of Blowers
 |
| Place of Origin: | China |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001 |
| Model Number: | BV125H |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli |
| Delivery Time: | 5 to 20 working days, depends on order amount and specification |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 SETS per month |
| Type: | Vacuum Sauction, Roots Type | Air Capacity: | 9.47-16.96m3/min |
|---|---|---|---|
| Discharge Differential Pressure: | -10KPA - -70KPA | Motor Power: | 15-30KW |
| Discharge Bore: | DN125(5") | Cooling Type: | Air |
| Driven Type: | Motor Driven, Connected By Belt And Pulley | ||
| High Light: | 15KW Roots Vacuum Pump,DN125 Roots Vacuum Pump,9.47m3/Min Roots Vacuum Pump |
||
Roots type vacuum pump negative pressure blower, 9.47-16.96m3/min,-10KPA to -70KPA, 15-30KW

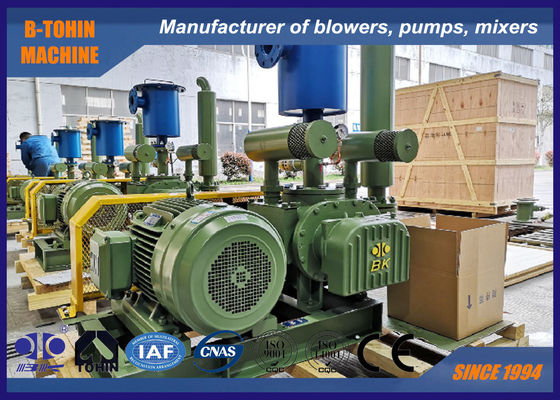

About BV125H Vacuum Blower
BK125H vacuum blower is a kind of displacement Roots type air pump. It can reach -70KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.
Specifications
|
Model |
BV125H |
|
Air capacity |
9.47-16.96m3/min |
|
Discharge differential pressure |
-10 ~ -70KPA |
|
Rotary speed |
1400-2200rpm |
|
Motor type |
15-30KW 380/400/415/440V, 3PHASES, 50/60HZ |
|
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
|
Installation type |
Standard: vertical type |
|
N.W. of blower without motor |
313kg |
Parameter sheet
Assembling drawing of blower package
Dimension size
Standard supply of scope
1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
