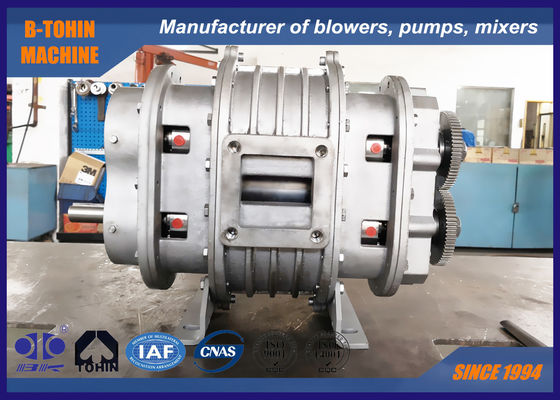

DN200 Roots Type Vacuum Pump suction pressure 40KPA for chemical industry blower

DN200 Roots Type Vacuum Pump suction pressure 40KPA for chemical industry blower

Product Details:
Place of Origin: China
Brand Name: BK
Certification: ISO9001/ISO14001/CE
Model Number: BV8016
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Delivery Time: 5 to 20 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 80 SETS per month
Contact Now
Detailed Product Description
Type: Vacuum Sauction, Roots Type Air Capacity: 17.06-48.99m3/min
Discharge Differential Pressure: -10KPA ~-40KPA Motor Power: 11KW-90KW
Discharge Bore: DN200(8”) Cooling Type: Air
Driven Type: Motor Driven, Connected By Belt And Pulley Weight: 800kg
Speed: 700-1500rpm
Highlight:

roots type vacuum pump

,

blower vacuum pump

 DN200 Roots Blower Vacuum Pump,  suction pressure -40KPA, chemical industry blower


About BK vacuum pump

BV8016 vacuum pump can reach the maximum vacuum pressure of -40KPA and the maximum air capacity of 48.99m3/min.

It is widely applied in vacuum application in food conveying, metallurgy, chemical industry,electronic coating and other industries.

Specifications

Model

BV8016

Inlet dimension DN200
Outlet dimension DN200

Air capacity

17.06-48.99m3/min

Discharge differential pressure

-10 ~ -40KPA

Rotary speed

700-1500rpm

Motor type

11KW-90KW
380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor
Siemens and ABB motor for your option

Motor efficiency grade IE3
Moror insulation class F, temperature rising B
Motor protection class IP55

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of blower without motor

800kg

Packing size Approx.

2.13*1.48*2.35m (length*width*height)



Parameter sheet


Model Port Dia
(MM)
Speed Inlet capacity (m3/min)and shaft power (KW)
-0.1kgf/cm2 -0.2kgf/cm2 -0.3kgf/cm2 -0.4kgf/cm2
-1000mmH2O -2000mmH2O -3000mmH2O -4000mmH2O
-0.01Mpa -0.02Mpa -0.03Mpa -0.04Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW
BV8016 200(8") 700 20.85  8.26  19.27  12.32  18.08  16.13  17.06  18.28
850 26.13  10.03  24.55  14.96  23.35  19.58  22.33  22.19
1000 31.40  11.81  29.82  17.60  28.63  23.04  27.61  26.11
1150 36.68  13.58  35.10  20.24  33.90  26.50  32.88  30.03
1250 40.20  14.76  38.61  22.00  37.42  28.80  36.40  32.64
1400 45.47  16.53  43.89  24.63  42.69  32.26  41.67  36.55
1500 48.99  17.71  47.41  26.39  46.21  34.56  45.19  39.16



Assembling drawing of blower package
 DN200 Roots Type Vacuum Pump suction pressure 40KPA for chemical industry blower 0



BV Outline Dimension Sheet                       Unit:mm

Type

Port Dia

Motor power
A B C D E F G H K M N 0 P Q n-M16×h
Weight
(kg)
BV8016 150(8") 11~90 1750 1490 105 345 1010 284 452 1890 334 780 875 190 350 24 4-M16×400 800
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.



Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor
